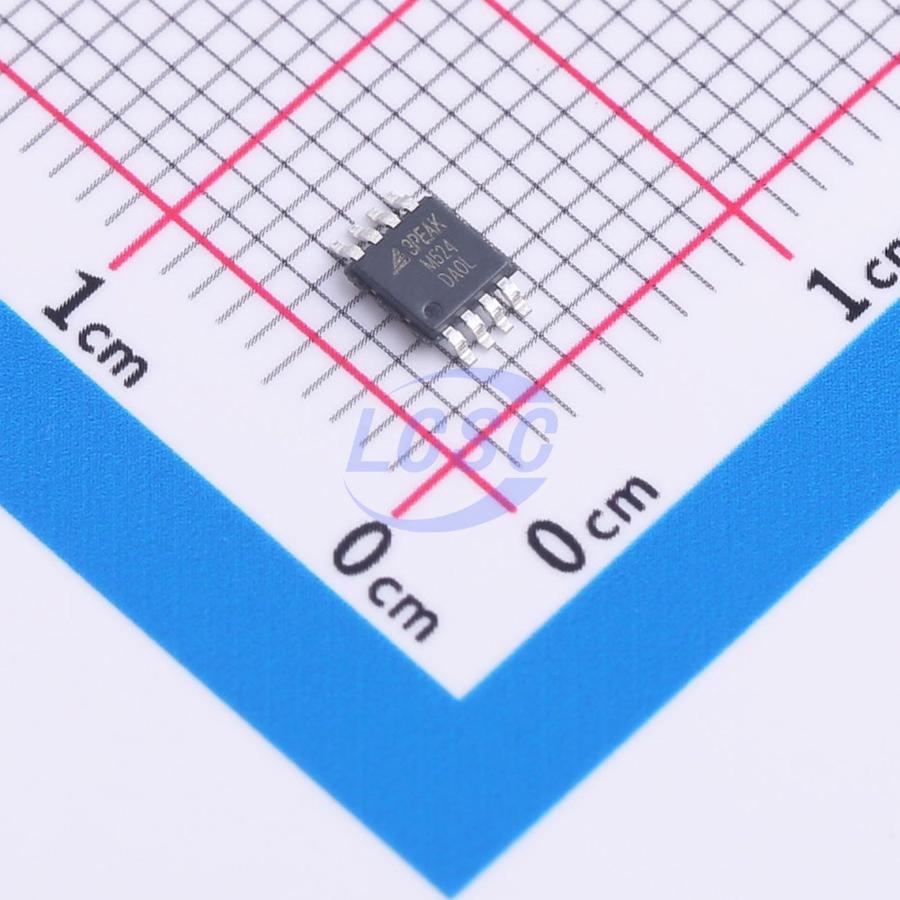

TPM27524-EV1R

The TPM2752x family is a series of dual-channel low-side gate drivers for MOSFET, IGBT, and GaN power switches. High sourcing and sinking current capability of 5 A allows for improving switching efficiencies by minimizing slew time and switching loss. The device supports maximum 25-V supply voltage and -5-V DC input voltage capability, which improves system robustness, especially in noisy industrial applications. Ultra-low propagation delay and excellent matching between two channels are designed for applications with tight timing requirements. The TPM2752x family consists of a set of gate drivers with different polarities, allowing customers to select based on application needs. The wide range of package supports SOP-8, EMSOP-8, and DFN3X3-8, aligning with industrial standard packages. An extra ultra-small DFN2X2-8 assists the design of ultra-compact synchronous rectifiers in power bricks.

Applications

• Switched-mode Power Supplies
• DC-DC Converters
• Motor Control
• Solar Inverters
• Gate & IGBT Drive

Key features

• Industry-standard Pin Configuration
• Automotive AEC-Q100 Grade 1 Qualified (Refer to TPM27524Q)
• 4.5-V to 23-V Single-Supply Range
• Dual Independent Channels
• 5-A Peak Source and Sink-drive Current
• Independent-enable Function for Each Output
• TTL and CMOS Compatible Threshold
• Outputs Held Low during VDD-UVLO or Input Floating
• Low Propagation Delay (14-ns Typical)
• Fast Rise-and-fall Times (7-ns and 6-ns Typical)
• <1-ns Typical Delay Matching between Two Channels
• Two Outputs Used in Parallel for Higher Drive Current
• ESD Protection Exceeds JESD 22 – 6-kV HBM, 1.5-kV CDM
• Available in SOP8, EMSOP8, DFN3X3-8, and DFN2X2-8 Packages
