TECH PUBLICDatasheet (PDF)

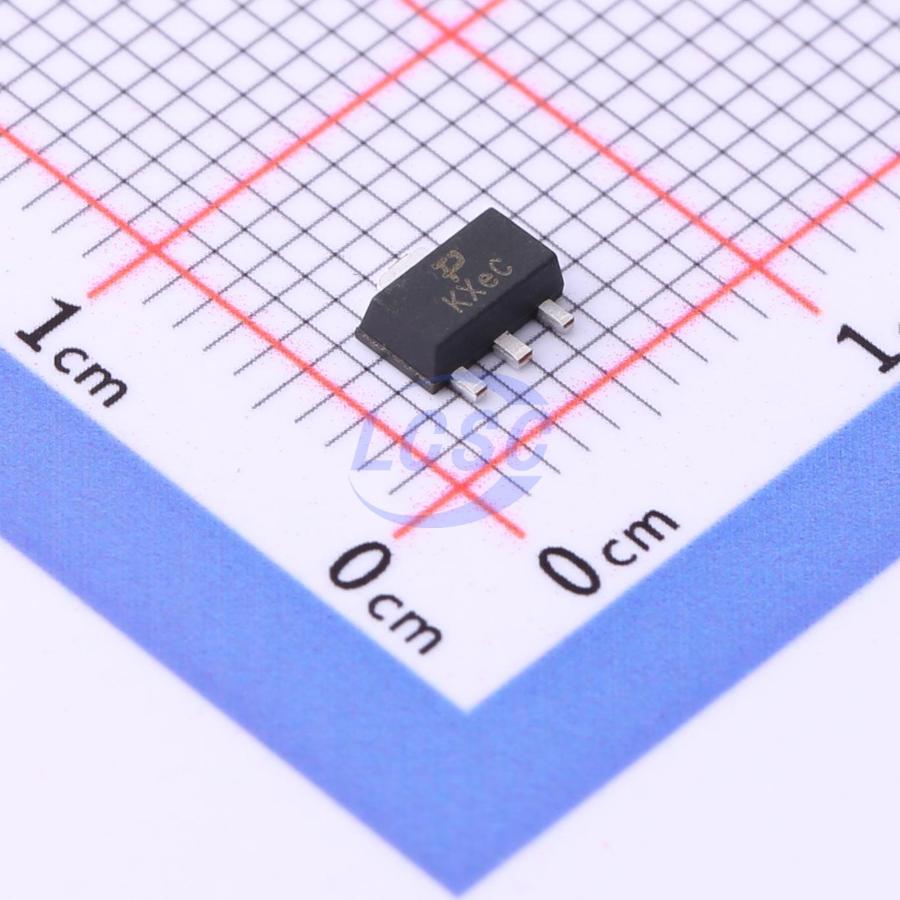

TPMCP1703T-5002E/MB
5V Positive SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89-3RoHSActive
20V,300mA,2uA,CMOS LDO Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMCP1703T-5002E/MB
- Store part #
- C3040641
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,030 in stock
#C3040641
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.52 | ₹172.60 |
| 50+ | ₹27.29 | ₹1,364.50 |
| 150+ | ₹24.20 | ₹3,630.00 |
| 1,000+ | ₹19.47 | ₹19,470.00 |
| 2,000+ | ₹17.75 | ₹35,500.00 |
| 5,000+ | ₹16.71 | ₹83,550.00 |
5 × ₹34.52
₹172.60
excl. GST
₹203.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
TPMCP1703T-5002E/MB
₹172.60 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 24V
- Features
- Over Current Protection;Built-in soft-start
- Output Type
- Fixed;Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
The TPMCP1703T device series are low power high voltage regulators implemented in CMOS technology which have the advantages of low voltage drop and low quiescent current. They allow input voltages as high as 20V. They are available with several fixed output voltages ranging from 2.1V to 5.0V. The softstart function inhibits the problem of output overshoot during power on. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.
Applications
- Battery - powered equipment
- Communication equipment
- Audio/Video equipment
Key features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
- High input voltage - up to 20V
- Output voltage accuracy: tolerance ±2%
- Over current protection
- SOT23 - 3L SOT89 - 3 Package Available
