TECH PUBLICDatasheet (PDF)

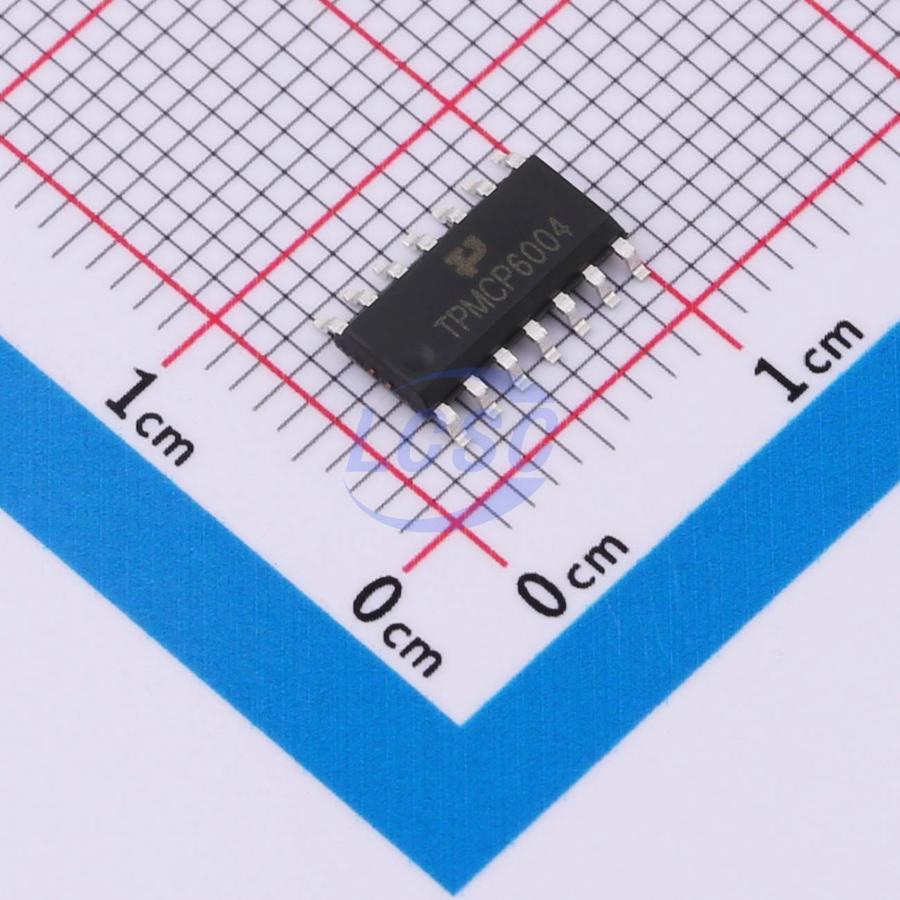

TPMCP6004T-E/SL
20mA 2 5mV 95dB 10pA 50uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps
SOP-14RoHSActive
TPMCP6004: Single-supply, low-power CMOS dual operational amplifier
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMCP6004T-E/SL
- Store part #
- C42370556
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,600 in stock
#C42370556
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.57 | ₹162.85 |
| 50+ | ₹25.59 | ₹1,279.50 |
| 150+ | ₹22.58 | ₹3,387.00 |
| 500+ | ₹18.84 | ₹9,420.00 |
| 2,500+ | ₹17.17 | ₹42,925.00 |
| 5,000+ | ₹16.18 | ₹80,900.00 |
5 × ₹32.57
₹162.85
excl. GST
₹192.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPMCP6004T-E/SL
₹162.85 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 650nV/℃
- Quiescent Current
- 50uA
- Gain Bandwidth Product
- 1MHz
- Features
- EMI filtering/RF suppression;Built-in compensation
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.254 g
Overview
The TPMCP6004 is a single supply, low power CMOS dual operational amplifier; these amplifiers offer bandwidth of 1MHz, rail-to-rail inputs and outputs, and single-supply operation from 2.1V to 5.5V. The embedded anti-RF filter can significantly increase the RF immunity without extra components. Typical low quiescent supply current of 50μA in dual operational amplifiers within one chip and very low input bias current of 10pA make the devices an ideal choice for low offset, low power consumption and high impedance applications such as smoke detectors, photodiode amplifiers, and other sensors.
Applications
- Temperature Sensors
- Battery-Powered Instruments
- Smoke/Gas/Environment Sensors
- Medical Equipment
- Portable Instruments and Mobile Device
- Active Filters
- Piezo Electrical Transducer Amplifier
- Sensor Interface
- Handheld Test Equipment
Key features
- General Purpose, Low Cost
- Gain Bandwidth Product: 1MHz
- Low Input Bias Current: 10pA (Typ.)
- Low Offset Voltage: 5mV (Max.)
- Quiescent Current: 50μA per Amplifier (Typ.)
- Unity Gain Stable
- Rail-to-Rail Input and Output
- Supply Voltage Range: 2.1V to 5.5V
- Operating Temperature: -40°C~+125°C
- Type Package: SOP-14
