TECH PUBLICDatasheet (PDF)

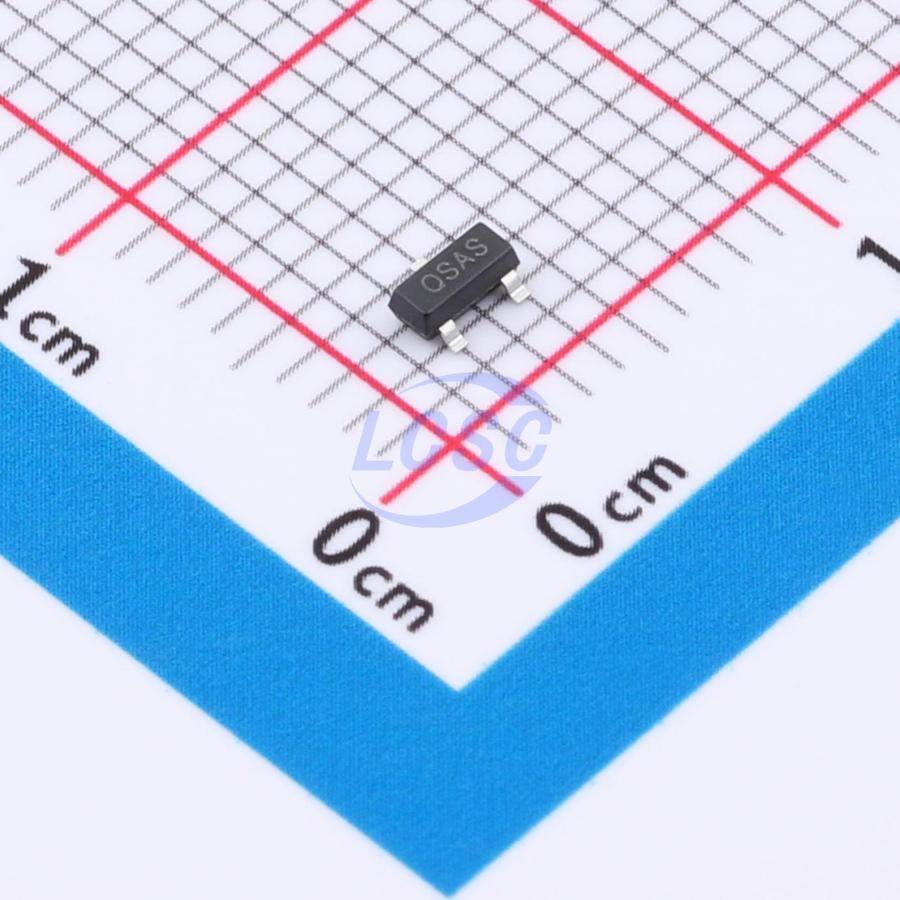

TPMCP809T-300I/TT
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPMCP809T-300I/TT
- Store part #
- C52817246
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,560 in stock
#C52817246
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.39 | ₹51.95 |
| 50+ | ₹8.16 | ₹408.00 |
| 150+ | ₹7.05 | ₹1,057.50 |
| 500+ | ₹6.22 | ₹3,110.00 |
| 3,000+ | ₹5.54 | ₹16,620.00 |
| 6,000+ | ₹5.21 | ₹31,260.00 |
5 × ₹10.39
₹51.95
excl. GST
₹61.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPMCP809T-300I/TT
₹51.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 3uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- CPU and logic circuit reset
- Power failure detectors
- Automotive
Key features
- Typical quiescent current: 3μA
- No external components required
- Vcc transient immunity
- Logic output guaranteed correct with Vcc as low as 1.0V
- Push-pull active-low reset output
- Available in SOT23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IMP809SEUR-TP#C52817112TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 8,100 | ₹8.12 · 8,100 in stock | View |
 | MAX809SN293D3T1G-TP#C52817135TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,535 | ₹15.61 · 2,535 in stock | View |
 | TPADM809SARTZ#C52817187TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,600 | ₹21.38 · 1,600 in stock | View |
 | TPAPX809S-29SA#C52817200TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,940 | ₹7.89 · 2,940 in stock | View |
 | TPS3809K33DBVR-TP#C52817295TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 5,205 | ₹16.14 · 5,205 in stock | View |
