TECH PUBLICDatasheet (PDF)

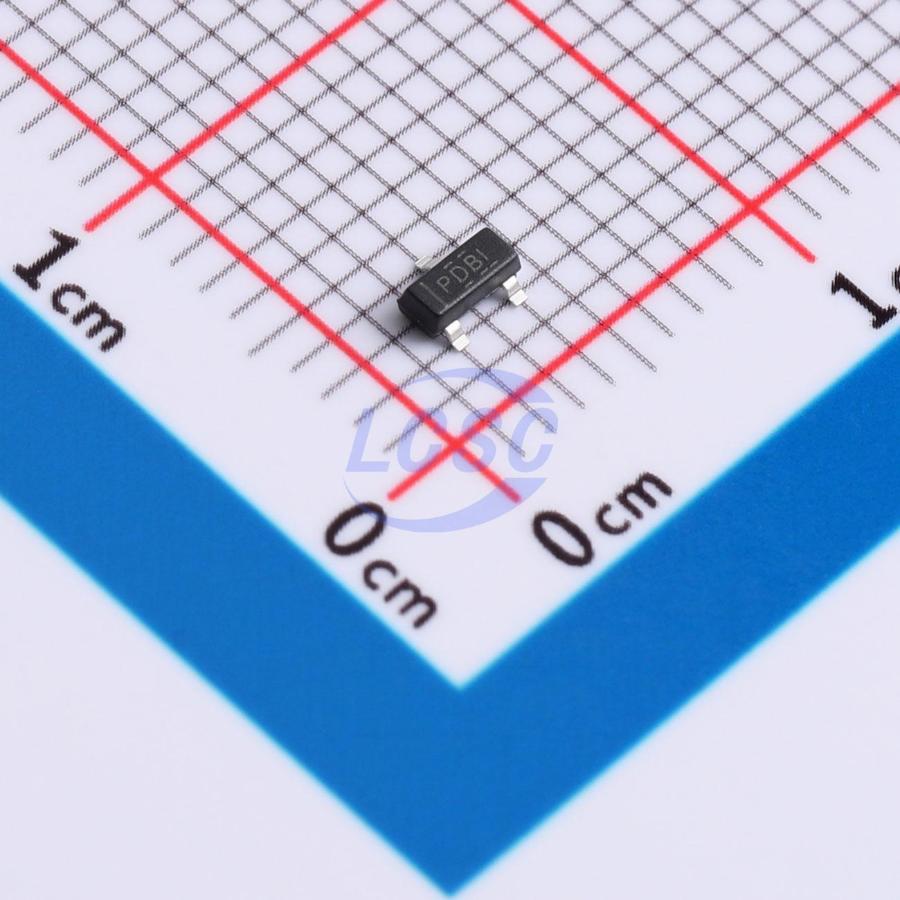

TPS3809K33DBVR-TP
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPS3809K33DBVR-TP
- Store part #
- C52817295
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,200 in stock
#C52817295
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.14 | ₹80.70 |
| 50+ | ₹12.70 | ₹635.00 |
| 150+ | ₹10.99 | ₹1,648.50 |
| 500+ | ₹9.70 | ₹4,850.00 |
| 3,000+ | ₹8.67 | ₹26,010.00 |
| 6,000+ | ₹8.15 | ₹48,900.00 |
5 × ₹16.14
₹80.70
excl. GST
₹95.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS3809K33DBVR-TP
₹80.70 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 3uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Intelligent instruments
- CPU and logic circuit reset
Key features
- Typical quiescent current: 3μA
- No external components required
- Vcc transient immunity
- Logic output guaranteed correct with Vcc as low as 1.0V
- Push-pull active-low reset output
- Available in SOT23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IMP809SEUR-TP#C52817112TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 6,650 | ₹8.12 · 6,650 in stock | View |
 | MAX809SN293D3T1G-TP#C52817135TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,520 | ₹15.61 · 2,520 in stock | View |
 | TPADM809SARTZ#C52817187TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,600 | ₹21.38 · 1,600 in stock | View |
 | TPAPX809S-29SA#C52817200TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,940 | ₹7.89 · 2,940 in stock | View |
 | TPMCP809T-300I/TT#C52817246TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,560 | ₹10.39 · 2,560 in stock | View |
