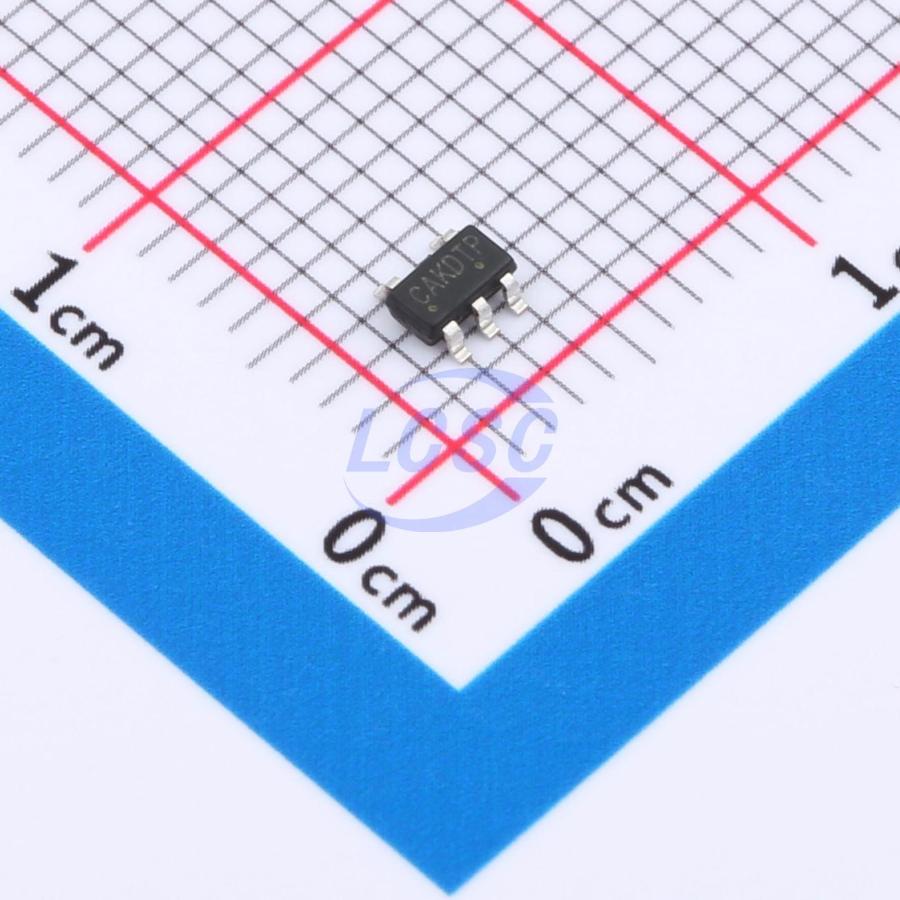

TPNCP114ASN300T1G
3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
300mA 25uA High PSRR Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNCP114ASN300T1G
- Store part #
- C23380922
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,445 in stock
#C23380922
Stock & price checked 17 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.51 | ₹77.55 |
| 50+ | ₹12.26 | ₹613.00 |
| 150+ | ₹10.64 | ₹1,596.00 |
| 500+ | ₹9.42 | ₹4,710.00 |
| 3,000+ | ₹8.44 | ₹25,320.00 |
| 6,000+ | ₹7.95 | ₹47,700.00 |
5 × ₹15.51
₹77.55
excl. GST
₹91.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPNCP114ASN300T1G
₹77.55 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Output discharge
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The TPNCP114 is a low-dropout (LDO) voltage regulator with enable function that operates from a 1.2V to 5.5V supply. It provides up to 300mA of output current in miniaturized packaging. The feature of 25μA low quiescent current and 0.5μA shutdown current are ideal for the battery application with long service life. The other features include current limit function, over temperature protection and output discharge function.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
Key features
- 25μA Ground Current at no Load
- ±2% Output Accuracy
- 450mA Output Current
- 10nA Disable Current (by option)
- Wide Operating Input Voltage Range: 1.2V to 5.5V
- Dropout Voltage: 0.32V at 450mA (Vout = 3.3V)
- Support Fixed Output Voltage 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection SOT23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPMIC5504-3.0YM5#C23380921TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,940 | ₹12.95 · 2,940 in stock | View |
 | TPMIC5255-3.0YM5#C23380920TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,785 | ₹13.59 · 2,785 in stock | View |
 | XC6210B302MR#C23378034TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,135 | ₹21.66 · 3,135 in stock | View |
 | XC6220B301MR#C23378035TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,290 | ₹14.72 · 4,290 in stock | View |
 | TPTLV70030DDCR#C23378021TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,030 | ₹15.57 · 2,030 in stock | View |
