TECH PUBLICDatasheet (PDF)

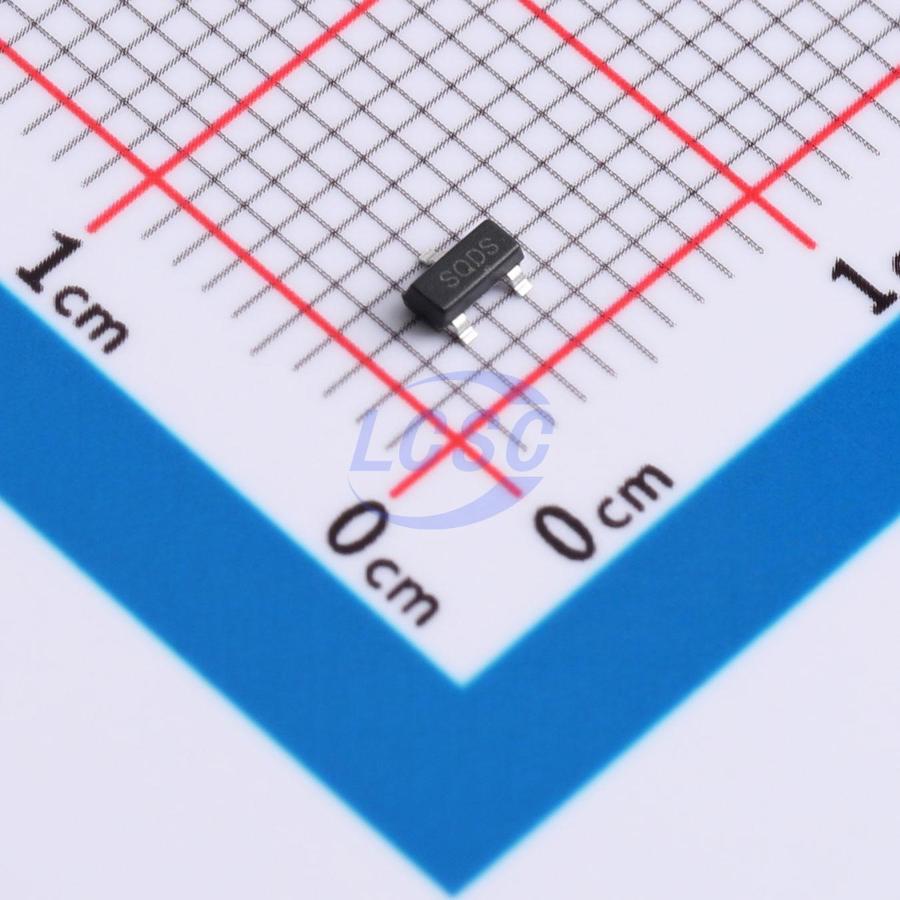

TPNCP803SN293T1G
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNCP803SN293T1G
- Store part #
- C52817285
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,590 in stock
#C52817285
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.38 | ₹106.90 |
| 50+ | ₹16.70 | ₹835.00 |
| 150+ | ₹14.70 | ₹2,205.00 |
| 500+ | ₹12.20 | ₹6,100.00 |
| 3,000+ | ₹11.07 | ₹33,210.00 |
| 6,000+ | ₹10.41 | ₹62,460.00 |
5 × ₹21.38
₹106.90
excl. GST
₹126.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPNCP803SN293T1G
₹106.90 for 5 + GST
Specifications
- Reset Timeout
- 240ms
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- CPU and logic circuit reset
Key features
- High accuracy ±2%
- Precision VCC monitoring for +2.5V, +3V, +3.3V, and +5V supplies
- Power supply transient immunity
- Reset guaranteed valid at VCC = +1V
- Full temperature range specifications
- 2μA supply current
- Single output configuration: open-drain active-low RESET output
- SOT-23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAPX803S-29SA#C52817195TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 125 | ₹11.48 · 125 in stock | View |
 | TPMCP120T-300I/TT#C52817238TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,000 | ₹26.76 · 3,000 in stock | View |
 | TPMCP121T-300E/TT#C52817242TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 5,335 | ₹27.49 · 5,335 in stock | View |
 | TPSTM1001SWX6F#C52817306TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,800 | ₹26.72 · 2,800 in stock | View |
 | TPTLV803EA29DBZR#C52817316TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 325 | ₹15.58 · 325 in stock | View |
