TECH PUBLICDatasheet (PDF)

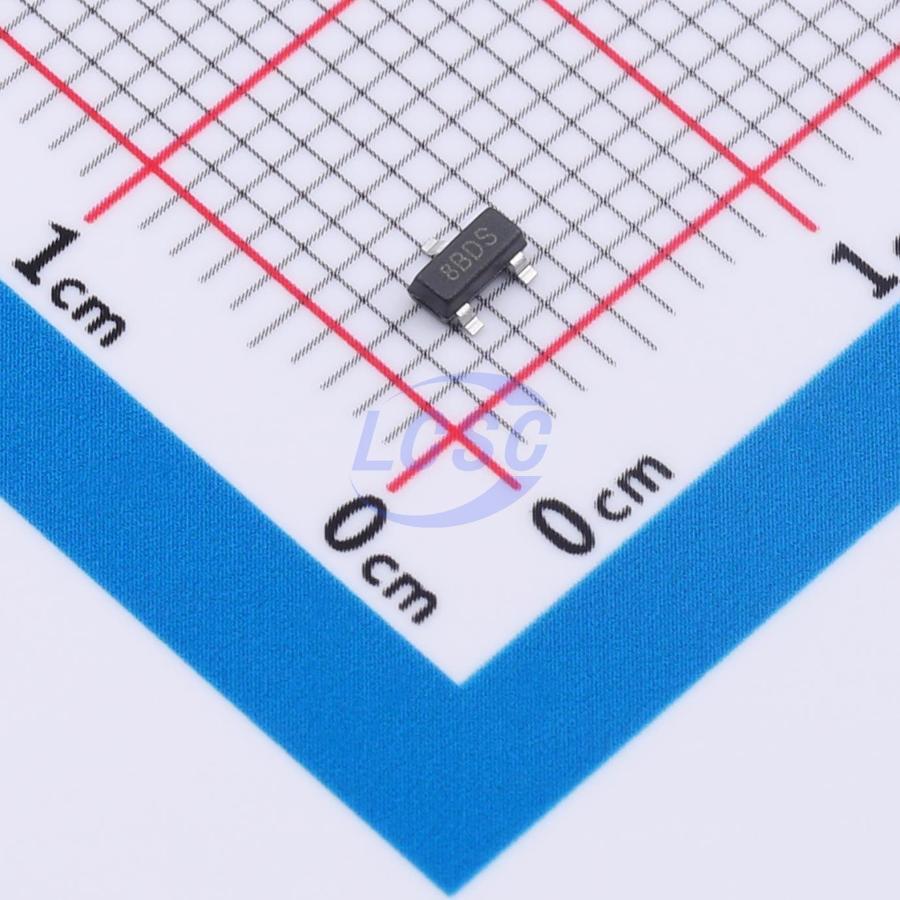

TPSTM1001SWX6F
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSTM1001SWX6F
- Store part #
- C52817306
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,800 in stock
#C52817306
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.72 | ₹133.60 |
| 50+ | ₹20.88 | ₹1,044.00 |
| 150+ | ₹18.36 | ₹2,754.00 |
| 500+ | ₹15.24 | ₹7,620.00 |
| 3,000+ | ₹13.85 | ₹41,550.00 |
| 6,000+ | ₹13.01 | ₹78,060.00 |
5 × ₹26.72
₹133.60
excl. GST
₹157.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSTM1001SWX6F
₹133.60 for 5 + GST
Specifications
- Reset Timeout
- 240ms
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instrumentation
- CPU and logic circuit reset
- Power failure detectors
- Automotive electronics
Key features
- High accuracy ±2%
- Precision VCC monitoring for +2.5V, +3V, +3.3V, and +5V supplies
- Power supply transient immunity
- Reset guaranteed valid with VCC as low as +1V
- Fully specified over the entire temperature range
- 2μA supply current
- Single-output configuration: open-drain, active-low RESET output
- SOT-23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAPX803S-29SA#C52817195TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 125 | ₹11.48 · 125 in stock | View |
 | TPMCP120T-300I/TT#C52817238TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,000 | ₹26.76 · 3,000 in stock | View |
 | TPMCP121T-300E/TT#C52817242TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 5,335 | ₹27.49 · 5,335 in stock | View |
 | TPNCP803SN293T1G#C52817285TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,590 | ₹21.38 · 2,590 in stock | View |
 | TPTLV803EA29DBZR#C52817316TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 325 | ₹15.58 · 325 in stock | View |
