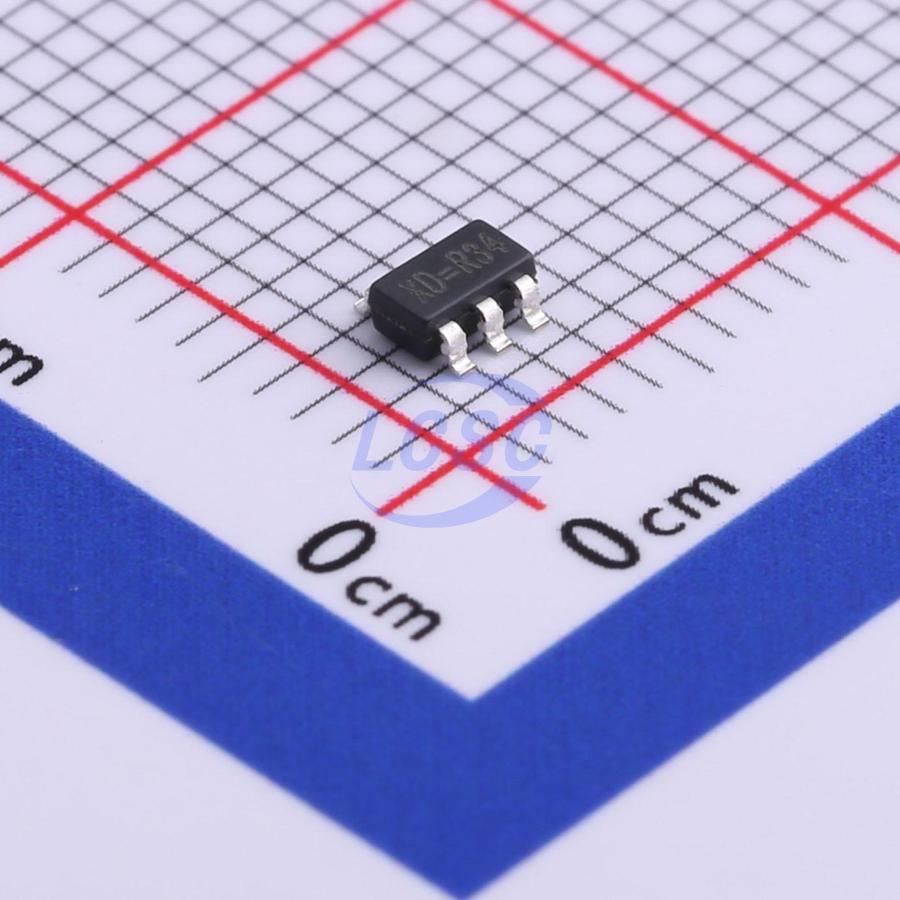

TECH PUBLICDatasheet (PDF)
TPRT9013-28GB
2.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
500mA High PSRR Voltage Regulators
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPRT9013-28GB
- Store part #
- C587160
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,770 in stock
#C587160
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.52 | ₹62.60 |
| 50+ | ₹9.76 | ₹488.00 |
| 150+ | ₹8.37 | ₹1,255.50 |
| 500+ | ₹7.34 | ₹3,670.00 |
| 3,000+ | ₹6.51 | ₹19,530.00 |
| 6,000+ | ₹6.10 | ₹36,600.00 |
5 × ₹12.52
₹62.60
excl. GST
₹73.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPRT9013-28GB
₹62.60 for 5 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 7V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
The TPRT9013 is a high-performance, 500mA LDO regulator, offering extremely high PSRR and ultra-low dropout. Ideal for portable RF and wireless applications with demanding performance and space requirements. The TPRT9013 is available in 5pin SOT23-5 Package. It output standards of 1.2V 1.5V 1.8V 2.5V 2.8V 3.0V 3.3V
Applications
- CDM/G-SM mobile phone
- PDAs
- MP3 Audio/Video equipment
Key features
- Quiescent Current: 60uA
- PSRR: 75dB@1KHz
- < 1uA current at shutdown mode
- Output voltage accuracy: tolerance ±2%
- Output current: 500mA(Typ.) SOT23-5 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP9001-28S5#C708750TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 60 | ₹5.29 · 60 in stock | View |
 | RT9013-28GB#C22435117TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 7,260 | ₹9.59 · 7,260 in stock | View |
 | TP5108E23E-28#C907864TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 6,110 | ₹9.35 · 6,110 in stock | View |
 | TPMIC5219-2.8YM5#C18212650TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,520 | ₹20.93 · 2,520 in stock | View |
 | TPRT9080-28GJ5#C49451995TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,425 | ₹13.69 · 1,425 in stock | View |
