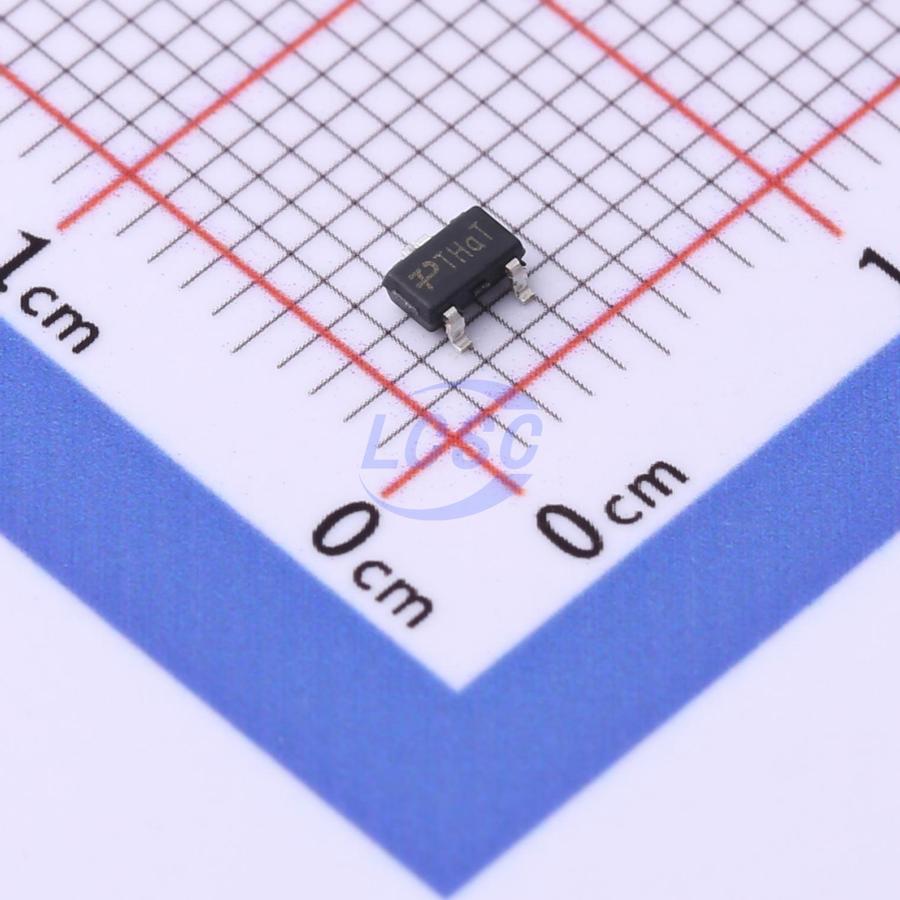

TPRT9166-33GVL
3.3V Positive Fixed SOT-23-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3LRoHSActive
300mA,20uA,CMOS LDO Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPRT9166-33GVL
- Store part #
- C3021128
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,925 in stock
#C3021128
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.33 | ₹101.65 |
| 50+ | ₹16.31 | ₹815.50 |
| 150+ | ₹14.30 | ₹2,145.00 |
| 500+ | ₹12.81 | ₹6,405.00 |
| 3,000+ | ₹10.44 | ₹31,320.00 |
| 6,000+ | ₹9.84 | ₹59,040.00 |
5 × ₹20.33
₹101.65
excl. GST
₹119.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPRT9166-33GVL
₹101.65 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 20uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 300mA
- Features
- Enable control;Output discharge;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.061 g
Overview
The TPRT9166 series set of low power high voltage regulators implemented in CMOS technology which can provide 300 mA output current. The device allows input voltage as high as 5.5V. The TPRT9166 series is available in several fixed output voltages. CMOS technology ensures low dropout voltage and low quiescent current.
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
Key features
- 20 μA Ground Current at no load
- ±2% Output Accuracy
- 300 mA Output Current
- Wide Operating Input Voltage Range: 1.2V to 5.5V
- SOT - 23, SOT89 - 3 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP132LC33S3L#C48586713TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 1,950 | ₹6.07 · 1,950 in stock | View |
 | TP142C33S3L#C3021129TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,815 | ₹17.41 · 2,815 in stock | View |
 | TPMCP1702T-3302E/CB#C3040634TECH PUBLIC · SOT-23-3L | TECH PUBLIC | SOT-23-3L | 494 | ₹60.67 · 494 in stock | View |
 | TP6206P332S3#C48639052TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,280 | ₹2.61 · 2,280 in stock | View |
 | TPMCP1700T-3302E/TT#C3021127TECH PUBLIC · SOT-23L | TECH PUBLIC | SOT-23L | 10,635 | ₹21.43 · 10,635 in stock | View |
