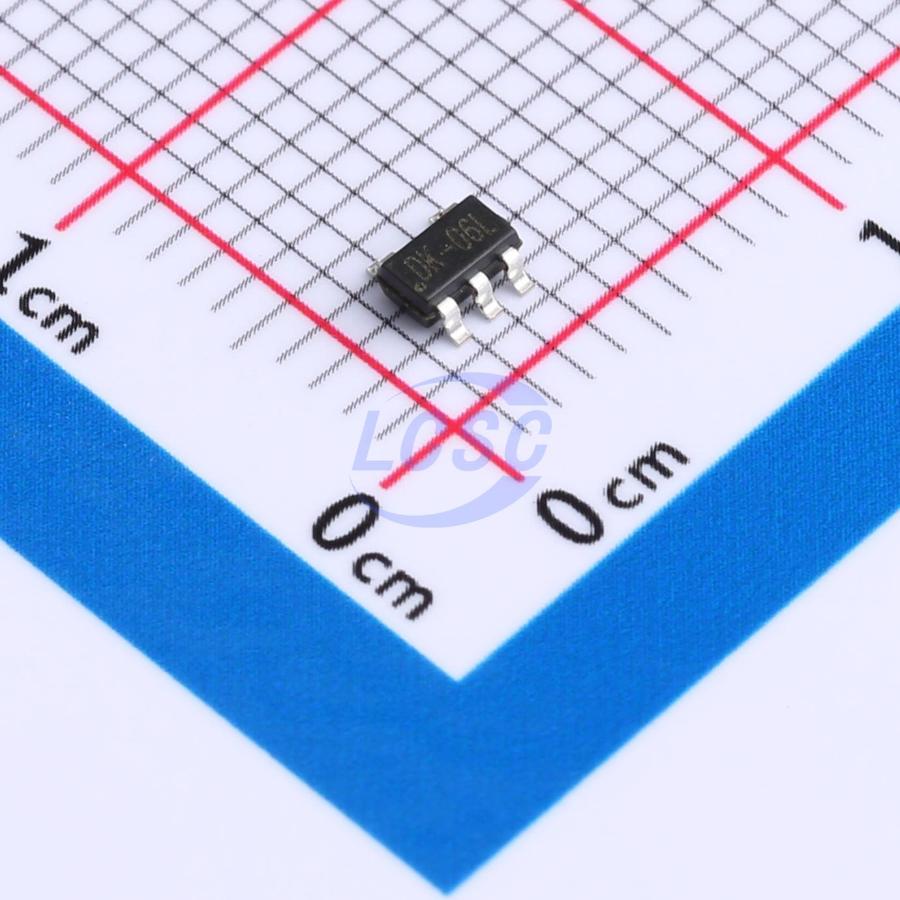

TPRT9193-30GB
3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
300mA High PSRR Voltage Regulators
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPRT9193-30GB
- Store part #
- C5246395
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,685 in stock
#C5246395
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.61 | ₹63.05 |
| 50+ | ₹10.00 | ₹500.00 |
| 150+ | ₹8.69 | ₹1,303.50 |
| 500+ | ₹7.71 | ₹3,855.00 |
| 3,000+ | ₹6.60 | ₹19,800.00 |
| 6,000+ | ₹6.22 | ₹37,320.00 |
5 × ₹12.61
₹63.05
excl. GST
₹74.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPRT9193-30GB
₹63.05 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 9V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
The TPRT9193 is a high-performance, 300mA LDO regulator, offering extremely high PSRR and ultra-low dropout. Ideal for portable RF and wireless applications with demanding performance and space requirements. The TPRT9193 is available in 5 pin SOT23-5 Package. the output standards of 1.2V 1.5V 1.8V 2.5V 2.8V 3.0V 3.3V
Applications
- CDM/GSM mobile phone
- PDAS/MP3
- Audio Video equipment
Key features
- Quiescent Current: 70uA
- PSRR: 70dB@1KHz
- <1uA current at shutdown mode
- Output current: 300mA(Typ.)
- SOT23-5 package
