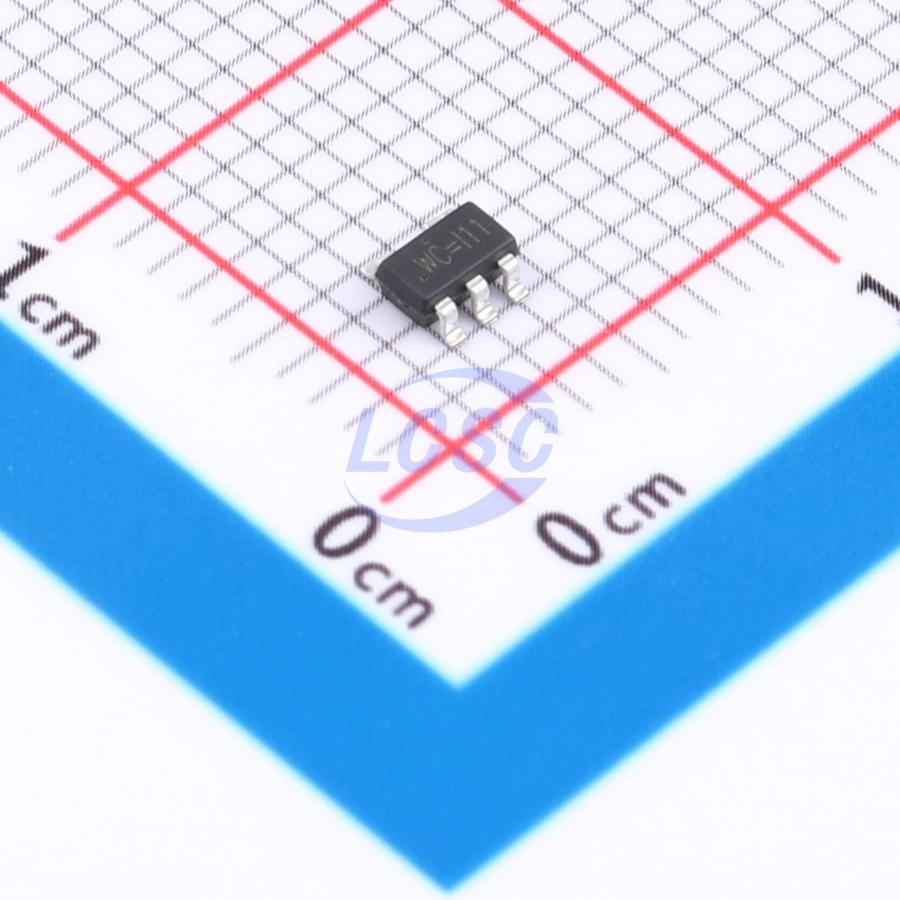

TPRT9193-50GB
5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
IC REG LINEAR 5V 300mA SOT-23-5
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPRT9193-50GB
- Store part #
- C51886233
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,965 in stock
#C51886233
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.18 | ₹60.90 |
| 50+ | ₹9.59 | ₹479.50 |
| 150+ | ₹8.28 | ₹1,242.00 |
| 500+ | ₹7.30 | ₹3,650.00 |
| 3,000+ | ₹6.52 | ₹19,560.00 |
| 6,000+ | ₹6.14 | ₹36,840.00 |
5 × ₹12.18
₹60.90
excl. GST
₹71.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPRT9193-50GB
₹60.90 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Enable control
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
TPRT9193 is a high-performance, 300mA LDO regulator offering extremely high PSRR and ultra-low dropout voltage. It is ideal for portable RF and wireless applications with stringent performance and space requirements. The device is available in a 5-pin SOT23-5 package with standard output voltage options of 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, and 3.3V.
Applications
- CDMA/GSM handsets
- PDAs/MP3 players
- Audio/video equipment
Key features
- Quiescent current: 70uA
- Power supply rejection ratio: 70dB@1KHz
- Shutdown mode current < 1uA
- Output current: 300mA (typical)
- SOT23-5 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPRT9013-50GB#C20617298TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 5,160 | ₹11.91 · 5,160 in stock | View |
 | MCP1802T-5002I/OT#C3040618TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 5,787 | ₹100.32 · 5,787 in stock | View |
 | SPX3819M5-L-5-0#C20617302TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 875 | ₹18.02 · 875 in stock | View |
 | TPSPX3819M5-L-5-0#C5370987TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 15,015 | ₹16.75 · 15,015 in stock | View |
 | TPLP2992IM5X-5.0#C5370981TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,230 | ₹22.04 · 2,230 in stock | View |
