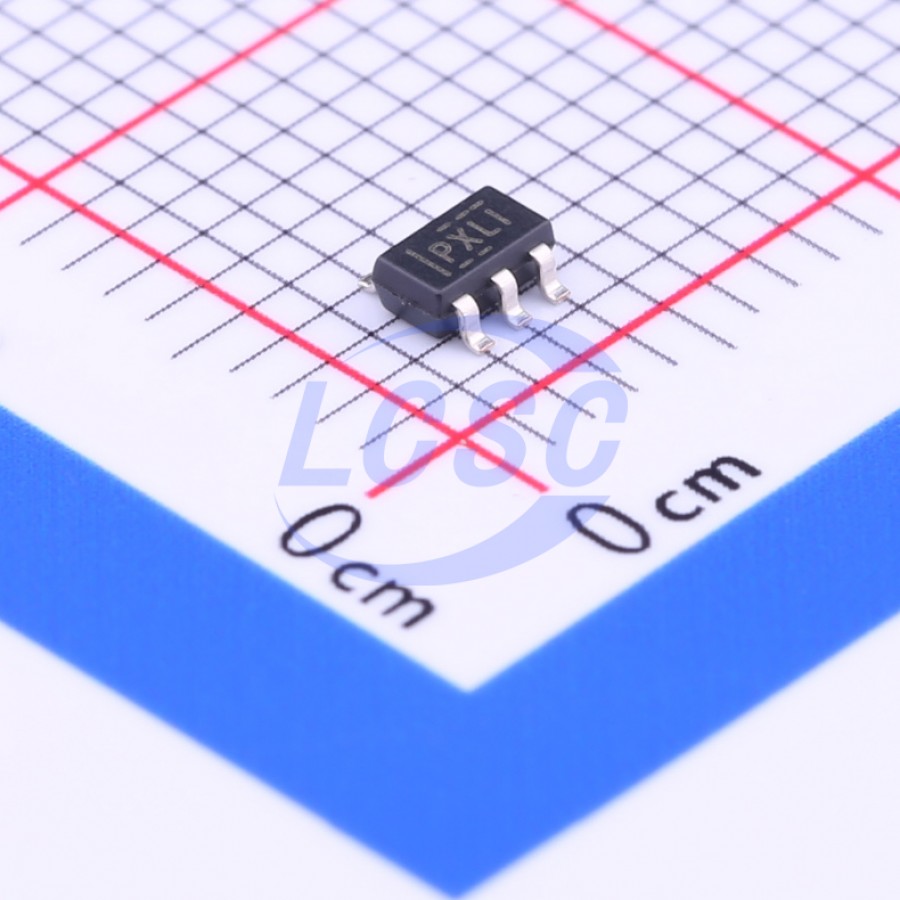

TPS2061CDBVR
1 Active High 1A Low Side Switch SOT-23-5 Power Distribution Switches, Load Drivers RoHS
SOT-23-5ROHS3 CompliantActive
Current-Limited Power Distribution Switches
- Manufacturer
- TI
- Manufacturer part #
- TPS2061CDBVR
- Store part #
- C265129
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,135 in stock
#C265129
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.22 | ₹96.10 |
| 50+ | ₹14.37 | ₹718.50 |
| 150+ | ₹11.95 | ₹1,792.50 |
| 500+ | ₹10.12 | ₹5,060.00 |
| 3,000+ | ₹8.67 | ₹26,010.00 |
| 6,000+ | ₹7.94 | ₹47,640.00 |
5 × ₹19.22
₹96.10
excl. GST
₹113.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS2061CDBVR
₹96.10 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking;Output discharge function;Soft-start;Integrated charge pump
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 1A
- Operating Voltage
- 4.5V~5.5V
- RDS(on)
- 96mΩ
- Type
- Low Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The TPS20xxC and TPS20xxC-2 power-distribution switch family is intended for applications, such as USB, where heavy capacitive loads and short circuits are likely to be encountered. This family offers multiple devices with fixed current-limit thresholds for applications from 0.5 A to 2 A. The TPS20xxC and TPS20xxC-2 family limits the output current to a safe level by operating in a constant-current mode when the output load exceeds the current limit threshold. This provides a predictable fault current under all conditions. The fast overload response time eases the burden on the main 5-V supply to provide regulated power when the output is shorted. The power-switch rise and fall times are controlled to minimize current surges during turnon and turnoff.
Applications
- USB Ports and Hubs, Laptops, and Desktops
- High-Definition Digital TVs
- Set-Top Boxes
- Short-Circuit Protection
Key features
- Single Power Switch Family
- Pin-for-Pin With Existing TI Switch Portfolio Rated Currents of 0.5 A, 1 A, 1.5 A, 2 A
- ±20% Accurate, Fixed, Constant Current Limit
- Fast Overcurrent Response: 2 µs
- Deglitched Fault Reporting Selected Parts With (TPS20xxC) and Without (TPS20xxC-2) Output Discharge Reverse Current Blocking
- Built-In Soft Start
- Ambient Temperature Range: -40°C to 85°C
- UL Listed and CB-File No. E169910
