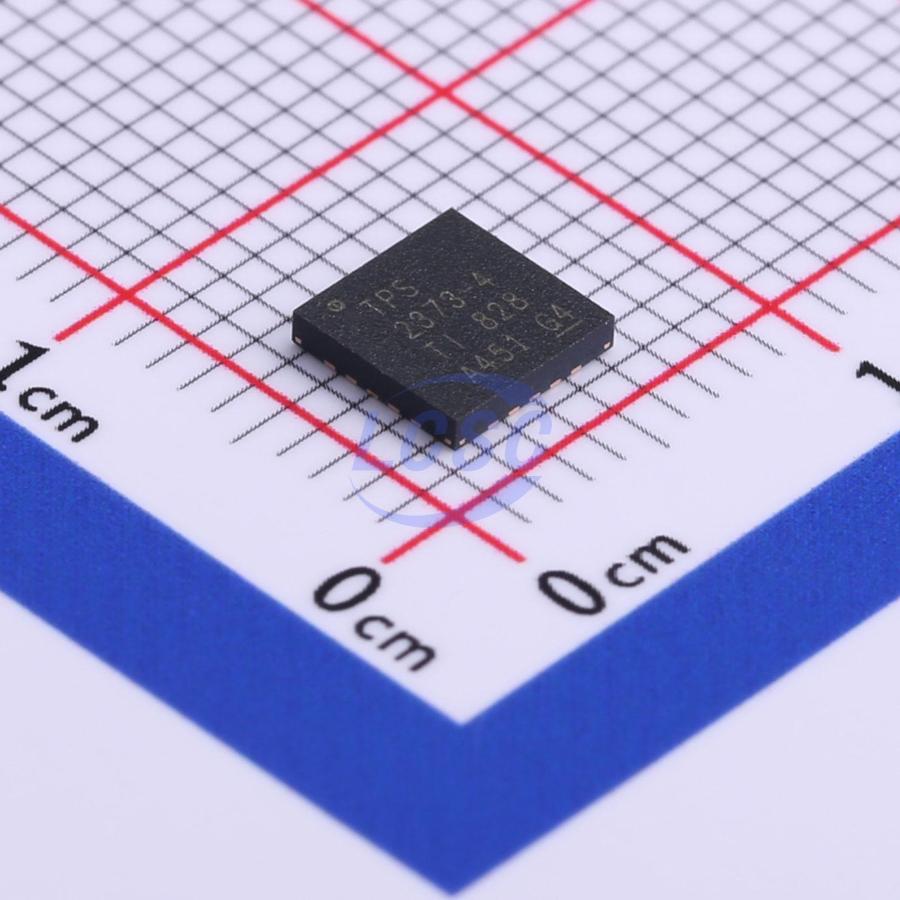

TPS2373-4RGWR

VQFN-20-EP(5x5) Power Over Ethernet (PoE) Controllers RoHS

VQFN-20-EP(5x5)ROHS3 CompliantActive

High-Power PoE PD Interface with Advanced Startup

Manufacturer: TI
Manufacturer part #: TPS2373-4RGWR
Store part #: C470963
Package / case: VQFN-20-EP(5x5)
Category: Power Over Ethernet (PoE) Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,447 in stock

#C470963

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹337.09	₹337.09
10+	₹296.91	₹2,969.10
30+	₹268.45	₹8,053.50
100+	₹242.61	₹24,261.00
500+	₹230.67	₹1,15,335.00
1,000+	₹225.66	₹2,25,660.00

Quantity (min 1)

1 × ₹337.09

₹337.09

excl. GST

₹397.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS2373-4RGWR

₹337.09 for 1 + GST

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.096 g

Overview

The TPS2373 contains all of the features needed to implement an IEEE802.3at or IEEE802.3bt (draft) (Type 1-4) powered device (PD). The low internal switch resistance allows the TPS2373-4 and TPS2373-3 to support high power applications up to 90 W and 60 W respectively. Assuming 100-meter CAT5 cable, this translates into 71.3 W and 51 W at PD input. The TPS2373 operates with enhanced features. The Advanced Startup function for DC-DC results in a simple, flexible, and minimal system cost solution, while ensuring that IEEE802.3bt (draft) startup requirements are met. It helps to reduce the size of the low voltage bias capacitor considerably. It also allows long DC-DC converter soft-start period and enables the use of a low-voltage PWM controller. The Automatic MPS function enables applications requiring very low power standby modes. The TPS2373 automatically generates the necessary pulsed current to maintain the PSE power. An external resistor is used to enable this functionality and to program the MPS pulsed current amplitude.

Applications

IEEE 802.3bt (Draft) Compliant Devices
4PPOE Pass-through System
Security Cameras
Multiband access points
Pico-base Stations
Video and VoIP Telephones
Systems using Redundant Power Feeds

Key features

IEEE 802.3bt (Draft) PD Solution for Type 3 or Type 4 PoE
Supports Power Levels for Type-4 (TPS2373-4) 90-W and Type-3 (TPS2373-3) 60-W Operation
Robust 100 V Hotswap MOSFET TPS2373-4 (typ.): 0.1-Ω, 2.2-A Current Limit TPS2373-3 (typ.): 0.3-Ω, 1.85-A Current Limit
Allocated Power Indicator Outputs
Advanced Startup for DC-DC
Simplifies Downstream DC-DC Design
Compliant to PSE Inrush
Automatic Maintain Power Signature (MPS)
Auto-adjust MPS for Type 1-2 or 3-4 PSE
Supports Ultra-Low Power Standby Modes
Primary Adapter Priority Input
Supports PoE++ PSE
-40°C to 125°C Junction Temperature Range
20-lead VQFN Package
