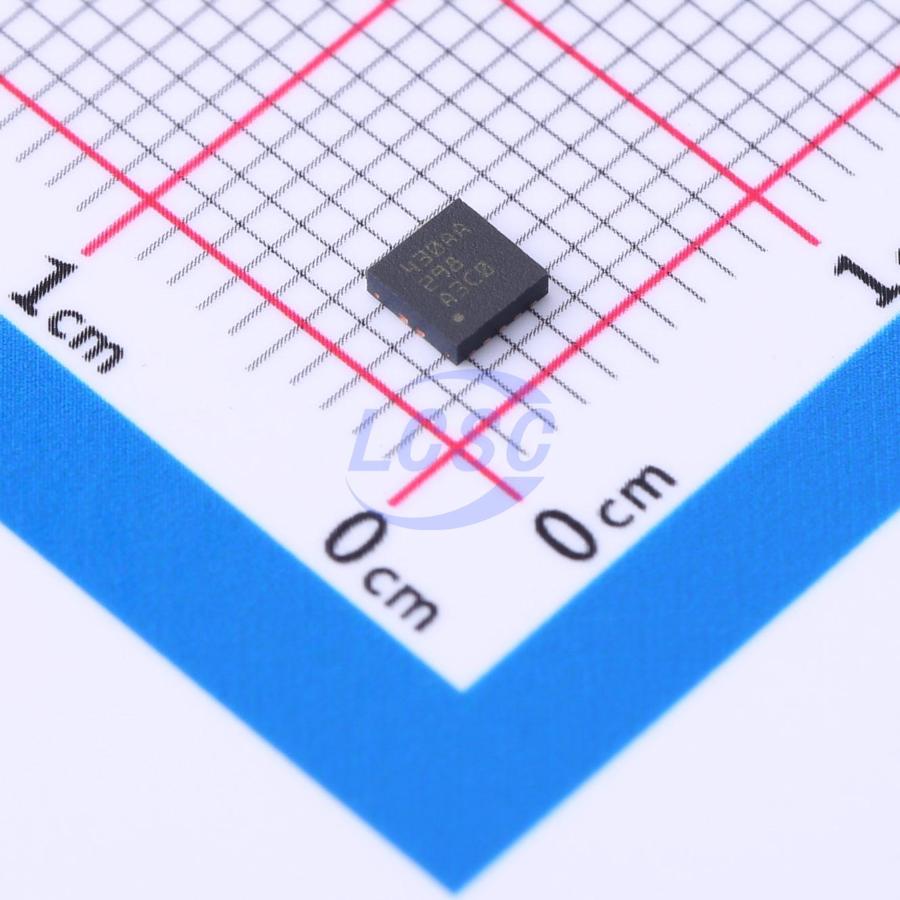

TPS3430WDRCR

Yes VSON-10-EP(3x3) Programmable Timers and Oscillators RoHS

VSON-10-EP(3x3)ROHS3 CompliantActive

Windowed Watchdog Timer with Programmable Reset Delay Function

Manufacturer: TI
Manufacturer part #: TPS3430WDRCR
Store part #: C2870545
Package / case: VSON-10-EP(3x3)
Category: Programmable Timers and Oscillators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,031 in stock

#C2870545

Stock & price checked 27 h ago

Quantity	Unit price	Pack price
1+	₹211.60	₹211.60
10+	₹186.86	₹1,868.60
30+	₹169.29	₹5,078.70
100+	₹153.23	₹15,323.00
500+	₹145.64	₹72,820.00
1,000+	₹142.80	₹1,42,800.00

Quantity (min 1)

1 × ₹211.60

₹211.60

excl. GST

₹249.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS3430WDRCR

₹211.60 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Supply Current: 10uA
Operating Temperature: -40℃~+125℃
Features: Watchdog timer
Programmable: Yes
Timer Number: 1
Voltage - Supply: 1.6V~6.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.062 g

Overview

The TPS3430 is an independent window watchdog timer with a programmable watchdog window and programmable watchdog reset delay, suitable for a variety of applications. The TPS3430 window watchdog can achieve a timing accuracy of 2.5% (typical value at 25°C). Moreover, the watchdog output (WDO) reset delay can be set through the factory-programmed default delay settings or programmed via an external capacitor. During the development process or power-up, the monitor can be disabled through the SET pin to avoid unnecessary monitor timeouts. The TPS3430 comes in a small 3.00mm × 3.00mm 10-pin VSON package.

Applications

Smart displays
Battery packs: e-bikes / electric scooters / light electric vehicles (LEV)
Circuit breakers (ACB, MCCB, VCB)
E-bikes / pedelecs
AC charging stations
Multifunction relays
Vision computers

Key features

Factory-programmed precision watchdog timer: ±2.5% watchdog timeout and watchdog reset delay accuracy at 25°C (typical)
Watchdog disable function
User-programmable watchdog timeout and user-programmable watchdog reset delay
Input voltage range: VDD = 1.6V to 6.5V
Low supply current: IDD = 10μA (typical)
Open-drain output
Small 3mm × 3mm 10-pin VSON package
Operating junction temperature range: -40°C to +125°C
