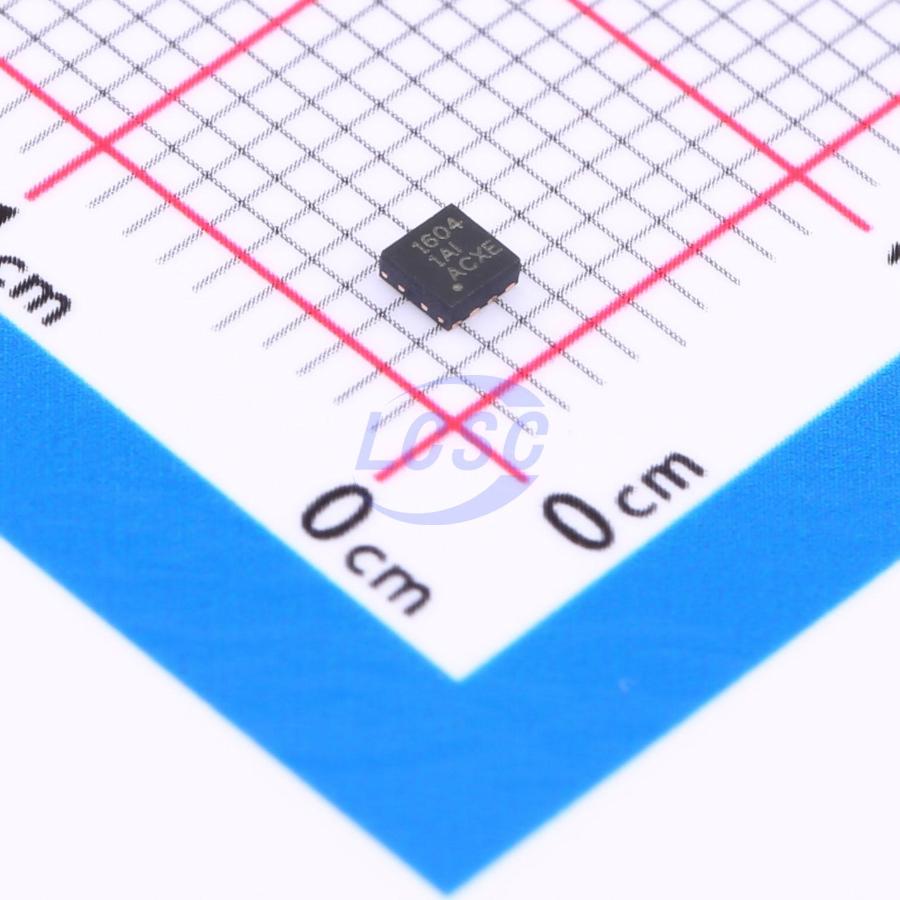

TPS51604DSGR

The TPS51604 drivers are optimized for highfrequency CPU VCORE applications. Advanced features such as reduced dead-time drive and auto zero crossing are used to optimize efficiency over the entire load range. The SKIP pin provides the option of CCM operation to support controlled management of the output voltage. In addition, the TPS51604 supports two lowpower modes. With the PWM input in tri-state, quiescent current is reduced to 130 μA, with immediate response. When SKIP is held at tri-state, the current is reduced to 8 μA (typically 20 μs is required to resume switching). Paired with the appropriate TI controller, the drivers deliver an exceptionally high performance power supply system. The TPS51604 device is packaged in a space saving, thermally-enhanced 8-pin, 2-mm x 2-mm WSON package and operates from -40°C to 105°C.

Applications

• Tablets Using High-Frequency CPUs With the Following Power Input:
• Adapter
• Battery NVDC 5-V or 12-V Rails

Key features

• Reduced Dead-Time Drive Circuit for Optimized CCM
• Automatic Zero Crossing Detection for Optimized DCM Efficiency
• Multiple Low-Power Modes for Optimized Light Load Efficiency
• Optimized Signal Path Delays for High-Frequency Operation
• Integrated BST Switch Drive Strength Optimized for Ultrabook FETs
• Optimized for 5-V FET Drive
• Conversion Input Voltage Range (VIN): 4.5 to 28 V
• 2-mm×2-mm, 8-Pin, WSON Thermal Pad Package
