TIDatasheet (PDF)

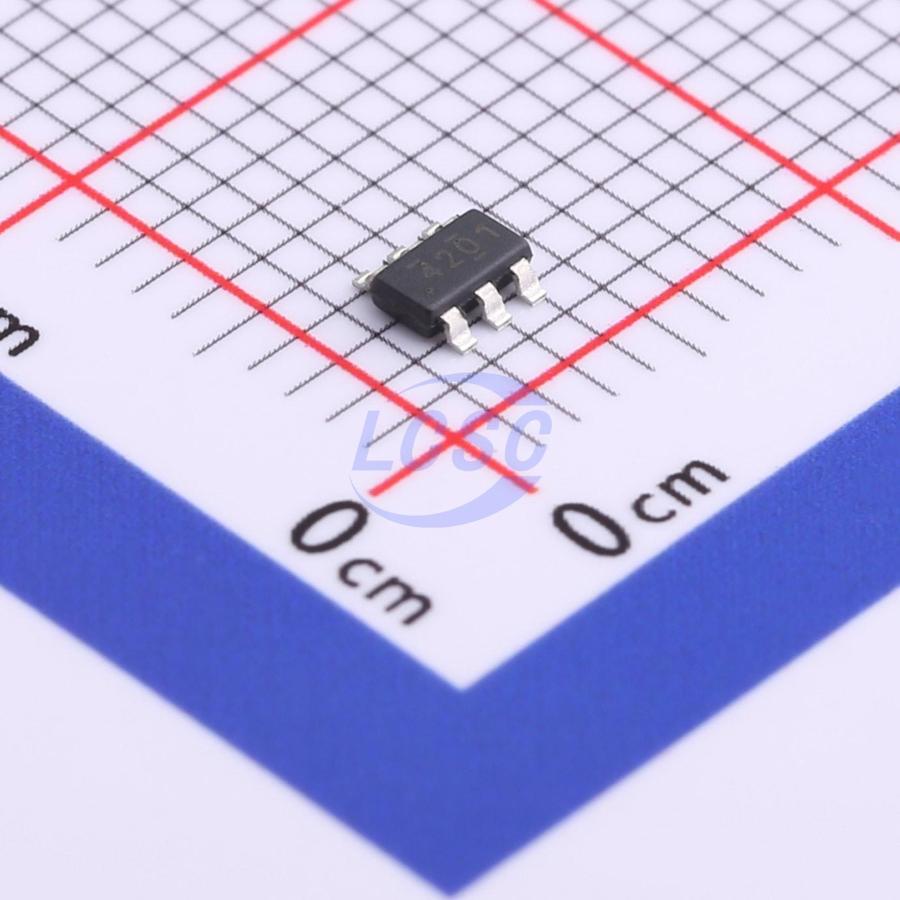

TPS54201DDCR
LED Driver IC 1 Output DC-DC Buck Analog PWM Dimming 1.5A TSOT-23-6
TSOT-23-6ROHS3 CompliantActive
Synchronous step-down single-color or IR LED driver with an input voltage of 4.5V to 28V and an output current of 1.5A
- Manufacturer
- TI
- Manufacturer part #
- TPS54201DDCR
- Store part #
- C841634
- Package / case
- TSOT-23-6
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,955 in stock
#C841634
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.52 | ₹58.52 |
| 10+ | ₹46.12 | ₹461.20 |
| 30+ | ₹40.68 | ₹1,220.40 |
| 100+ | ₹34.16 | ₹3,416.00 |
| 500+ | ₹31.10 | ₹15,550.00 |
| 1,000+ | ₹29.37 | ₹29,370.00 |
1 × ₹58.52
₹58.52
excl. GST
₹69.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS54201DDCR
₹58.52 for 1 + GST
Specifications
- Output Current
- 1.5A
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 600kHz
- Dimming
- PWM;Analog
- Number of Channels
- 1
- Type
- DC-DC
- Features
- Over Voltage Protection;Built-in soft-start;Short Circuit Protection;LED open-circuit protection;Over-Temperature Protection (OTP)
- Switch tube (built-in/external)
- Built-in
- Topology
- Buck
- Voltage - Input(DC)
- 4.5V~28V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.036 g
