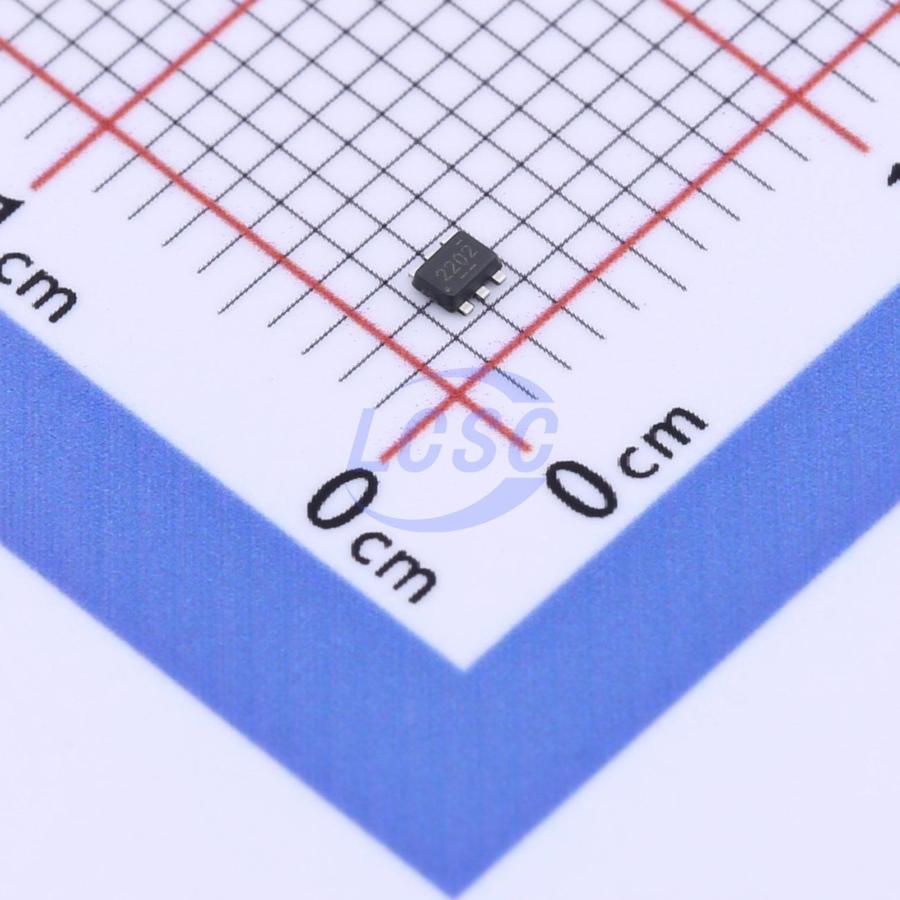

TPS562202DRLR

The TPS562202 is a simple, easy-to-use 2A synchronous buck converter in a SOT563 package. The device is optimized to minimize the external components required for operation and to achieve low standby current. This SMPS device employs D-CAP2 mode control, delivering fast transient response and supporting low-ESR output capacitors — including dedicated polymer capacitors and ultra-low ESR ceramic capacitors — without requiring external compensation components. The TPS562202 operates in ECO mode to maintain high efficiency during light-load operation. The TPS562202 is available in a 6-pin 1.6mm × 1.6mm SOT563 (DRL) package and is rated for a junction temperature range of –40°C to 125°C. The TPS562202 is a 2A synchronous buck converter. The proprietary D-CAP2 mode control supports low-ESR output capacitors — such as dedicated polymer capacitors and multilayer ceramic capacitors — without requiring complex external compensation networks. The fast transient response of D-CAP2 mode control reduces the output capacitance needed to achieve a given performance level.

Applications

• TV SMPS Power Supply
• Smart Speaker
• Wired Network
• Digital Set-Top Box (STB)
• Security Surveillance

Key features

• 2A converter with integrated 140mΩ and 84mΩ FETs
• D-CAP2 mode control with fast transient response
• Input voltage range: 4.3V to 17V
• Output voltage range: 0.804V to 7V
• ECO mode at light load
• 580kHz switching frequency
• Low shutdown current less than 3μA
• 2% feedback voltage accuracy (25°C)
• Pre-biased startup support
• Cycle-by-cycle overcurrent limiting
• Discontinuous mode overcurrent protection
• Non-latching UVP and TSD protection
• Fixed soft-start: 1.2ms
