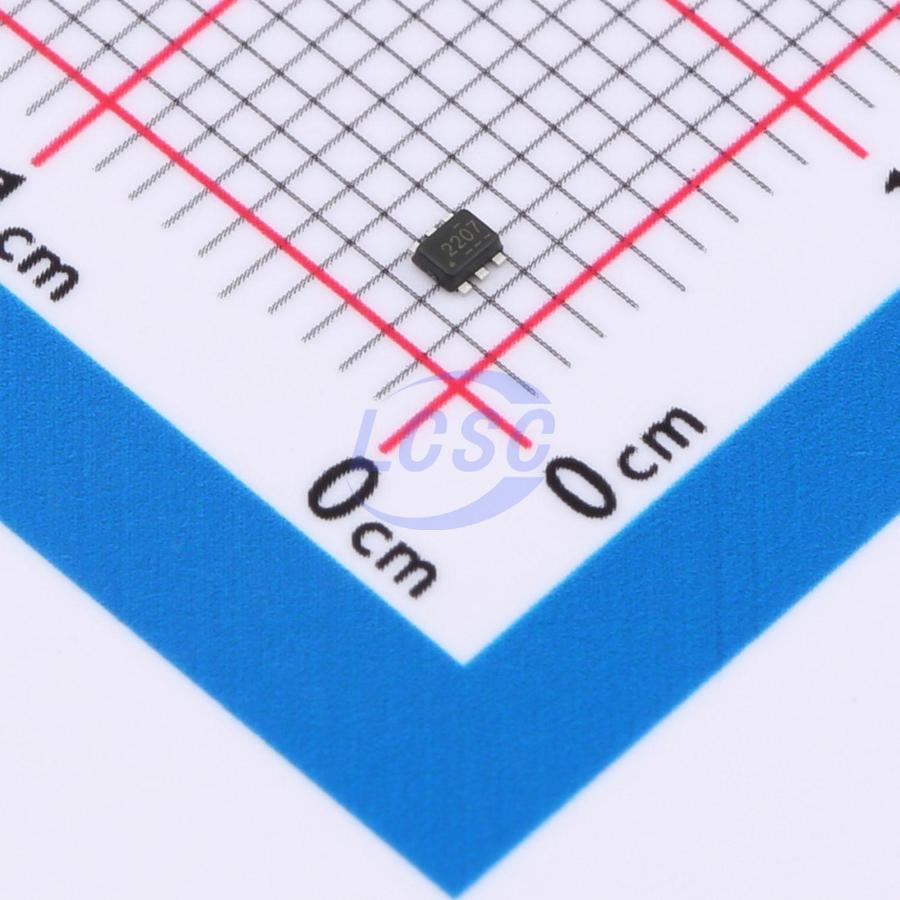

TPS562207DRLR

The TPS562207 is an easy-to-use 2A synchronous buck converter in a SOT563 package. The device is optimized to minimize the external components required for operation and to achieve low standby current. This SMPS device employs D-CAP2 mode control to provide fast transient response and supports low ESR output capacitors such as dedicated polymer capacitors as well as ultra-low ESR ceramic capacitors without requiring external compensation components. The TPS562207 operates in forced continuous conduction mode (FCCM) to maintain a fixed switching frequency and achieve minimal output voltage ripple. The TPS562207 is available in a 6-pin 1.6mm × 1.6mm SOT563(DRL) package and is rated for a junction temperature range of –40°C to 125°C.

Applications

• Digital TV power supply
• Smart speaker
• Wired network
• Digital set-top box (STB)
• Surveillance

Key features

• 2A converter with integrated 140mΩ and 84mΩ FETs
• D-CAP2™ mode control with fast transient response
• Input voltage range: 4.3V to 17V
• Output voltage range: 0.804V to 7V
• Forced continuous conduction mode
• 580kHz switching frequency
• Low shutdown current (below 3μA)
• 2% feedback voltage accuracy (25°C)
• Pre-bias support
• Cycle-by-cycle overcurrent limit
• Discontinuous mode overcurrent protection
• Non-latching UVP and TSD protection
• Fixed soft-start: 1.2ms
