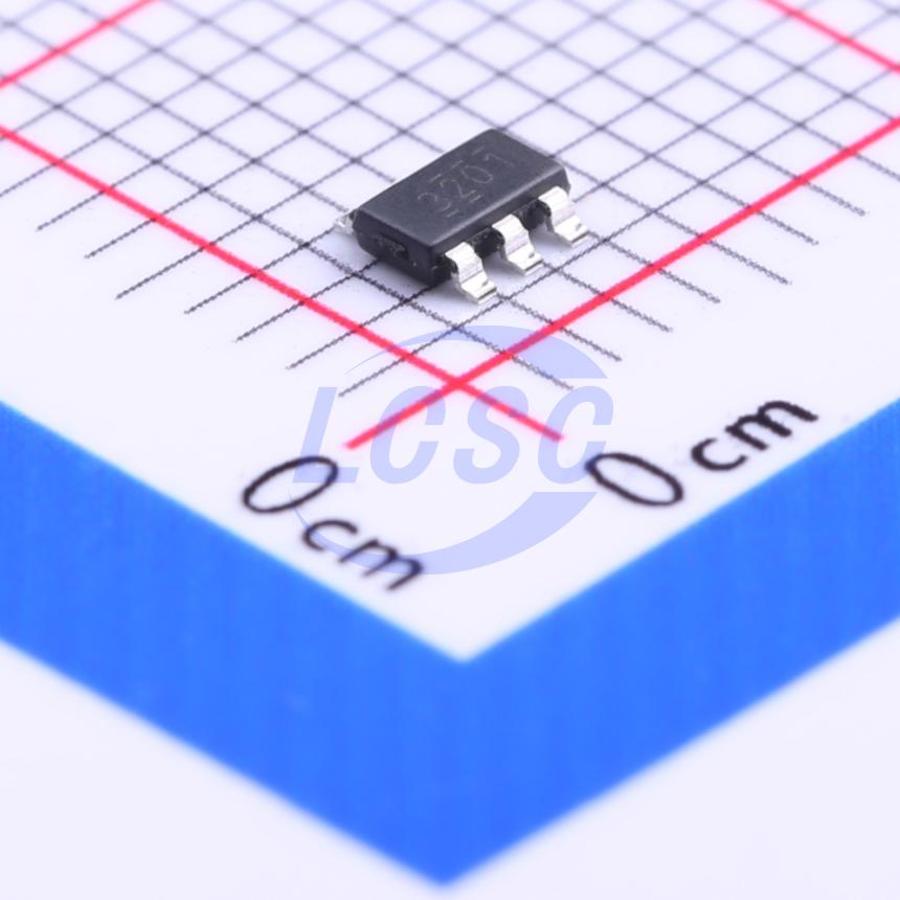

TPS563201DDCR
580kHz Step-down type Adjustable 768mV~7V 3A SOT-23-THIN-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-THIN-6ROHS3 CompliantActive
4.5-V to 17-V Input, 3-A Synchronous Step-Down Voltage Regulator
- Manufacturer
- TI
- Manufacturer part #
- TPS563201DDCR
- Store part #
- C116592
- Package / case
- SOT-23-THIN-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,18,390 in stock
#C116592
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.09 | ₹90.90 |
| 100+ | ₹7.47 | ₹747.00 |
| 300+ | ₹6.64 | ₹1,992.00 |
| 3,000+ | ₹5.95 | ₹17,850.00 |
| 6,000+ | ₹5.72 | ₹34,320.00 |
| 9,000+ | ₹5.54 | ₹49,860.00 |
10 × ₹9.09
₹90.90
excl. GST
₹107.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS563201DDCR
₹90.90 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 580kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~17V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 768mV~7V
- Output Current
- 3A
- Quiescent Current
- 380uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.054 g
Overview
The TPS563201 and TPS563208 are easy-to-use 3A synchronous step-down converters in a small-outline transistor (SOT)-23 package. These devices are designed to operate with the fewest possible external components while achieving low standby current. These SMPS devices employ the D-CAP2 control topology to provide fast transient response and support low-ESR output capacitors such as dedicated polymer capacitors as well as ultra-low ESR ceramic capacitors, without requiring external compensation components. The TPS563201 can operate in pulse-skip mode to maintain high efficiency during light-load operation. The TPS563201 and TPS563208 are available in a 6-pin 1.6mm × 2.9mm SOT (DDC) package and are rated for a junction temperature range of –40℃ to 125℃.
Applications
- Digital TV power supply
- HD Blu-ray™ disc player
- Networked home terminal equipment
- Digital set-top box (STB)
- Security surveillance
Key features
- TPS563201 and TPS563208 3A converters integrate 95mΩ and 57mΩ FETs
- D-CAP2™ control scheme for fast transient response
- Input voltage range: 4.5V to 17V
- Output voltage range: 0.76V to 7V
- Pulse skip mode (TPS563201) or continuous conduction mode (TPS563208)
- 580kHz switching frequency
- Low shutdown current (below 20µA)
- 2% feedback voltage accuracy (25℃)
- Pre-biased output voltage startup
- Cycle-by-cycle overcurrent limiting
- Discontinuous mode overcurrent protection
- Non-latching UVP and TSD protection
- Fixed soft-start: 1.0ms
- Custom design available with WEBENCH® PowerDesigner
