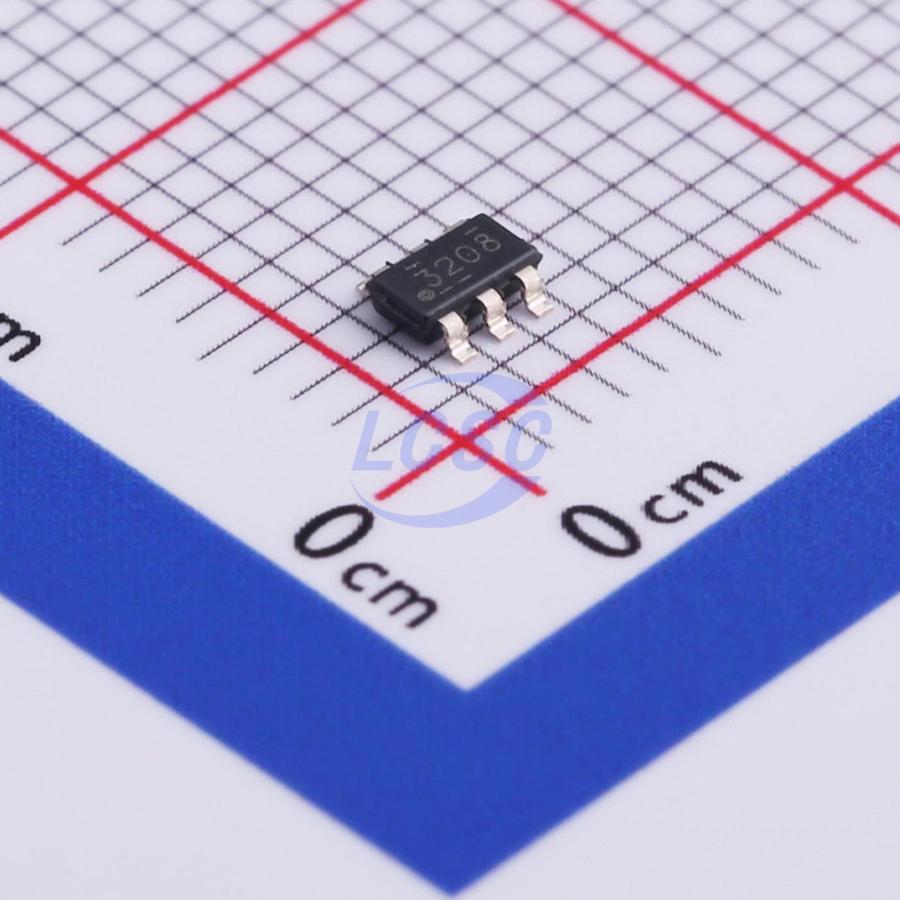

TPS563208DDCR
580kHz Step-down type Adjustable 768mV~7V 3A TSOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
TSOT-23-6ROHS3 CompliantActive
4.5-V to 17-V Input, 3-A Synchronous Step-Down Voltage Regulator
- Manufacturer
- TI
- Manufacturer part #
- TPS563208DDCR
- Store part #
- C468250
- Package / case
- TSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,11,630 in stock
#C468250
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.92 | ₹104.60 |
| 50+ | ₹16.48 | ₹824.00 |
| 150+ | ₹14.58 | ₹2,187.00 |
| 500+ | ₹12.21 | ₹6,105.00 |
| 3,000+ | ₹9.88 | ₹29,640.00 |
| 6,000+ | ₹9.25 | ₹55,500.00 |
5 × ₹20.92
₹104.60
excl. GST
₹123.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS563208DDCR
₹104.60 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 580kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~17V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 768mV~7V
- Output Current
- 3A
- Quiescent Current
- 590uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The TPS563201 and TPS563208 are simple, easy-to-use, 3 A synchronous step-down converters in SOT23 package. The devices are optimized to operate with minimum external component counts and also optimized to achieve low standby current. These switch mode power supply (SMPS) devices employ D-CAP2 mode control providing a fast transient response and supporting both low-equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components. TPS563201 operates in pulse skip mode, which maintains high efficiency during light load operation. The TPS563201 and TPS563208 are available in a 6-pin 1.6-mm × 2.9-mm SOT (DDC) package, and specified from a -40°C to 125°C junction temperature.
Applications
- Digital TV Power Supply
- High Definition Blu-ray Disc Players
- Networking
- Home Terminal
- Digital Set Top Box (STB)
- Surveillance
Key features
- TPS563201 and TPS563208 3-A Converter
- Integrated 95-mΩ and 57-mΩ FETs
- D-CAP2™ Mode Control with fast transient response
- Input Voltage Range: 4.5 V to 17 V
- Output Voltage Range: 0.76 V to 7 V
- Pulse-skip mode (TPS563201) or Continuous Current Mode (TPS563208)
- 580-kHz Switching Frequency
- Low Shutdown Current Less than 10 μA
- 2% Feedback Voltage Accuracy (25 °C)
- Startup from Pre-Biased Output Voltage
- Cycle-by-Cycle Overcurrent Limit
- Hiccup-mode Overcurrent Protection
- Non-Latch UVP and TSD Protections
- Fixed Soft Start: 1.0 ms
