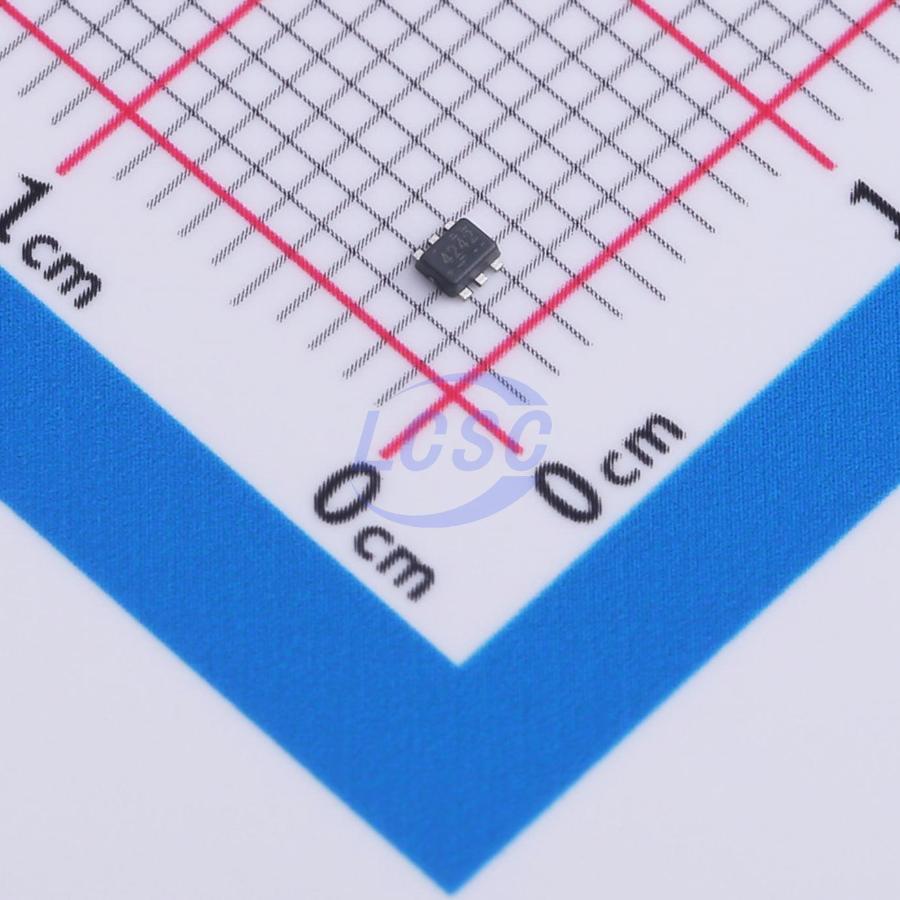

TPS564242DRLR
Buck Switching Regulator IC Adjustable 0.6V~7V 1 Output 4A SOT-563
SOT-563ROHS CompliantActive
A 4A synchronous buck converter in SOT-563 package with an input voltage range of 3V to 16V
- Manufacturer
- TI
- Manufacturer part #
- TPS564242DRLR
- Store part #
- C5219267
- Package / case
- SOT-563
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,110 in stock
#C5219267
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.35 | ₹246.75 |
| 50+ | ₹39.21 | ₹1,960.50 |
| 150+ | ₹34.87 | ₹5,230.50 |
| 500+ | ₹29.45 | ₹14,725.00 |
| 2,500+ | ₹27.03 | ₹67,575.00 |
| 4,000+ | ₹25.59 | ₹1,02,360.00 |
5 × ₹49.35
₹246.75
excl. GST
₹291.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPS564242DRLR
₹246.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1.2MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3V~16V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 4A
- Output Voltage
- 600mV~7V
- Quiescent Current
- 120uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.013 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS564247DRLR#C5244316TI · SOT-563 | TI | SOT-563 | On request | ₹55.80 · 0 in stock | View |
 | TPS565242DRLR#C5219270TI · SOT-563 | TI | SOT-563 | 2,278 | ₹63.09 · 2,278 in stock | View |
 | TPS566242DRLR#C5219277TI · SOT-563 | TI | SOT-563 | 2,238 | ₹95.20 · 2,238 in stock | View |
 | TPS565247DRLR#C5219268TI · SOT-563 | TI | SOT-563 | 1,720 | ₹62.67 · 1,720 in stock | View |
 | TPS566247DRLR#C5219274TI · SOT-563 | TI | SOT-563 | 1,500 | ₹73.16 · 1,500 in stock | View |
