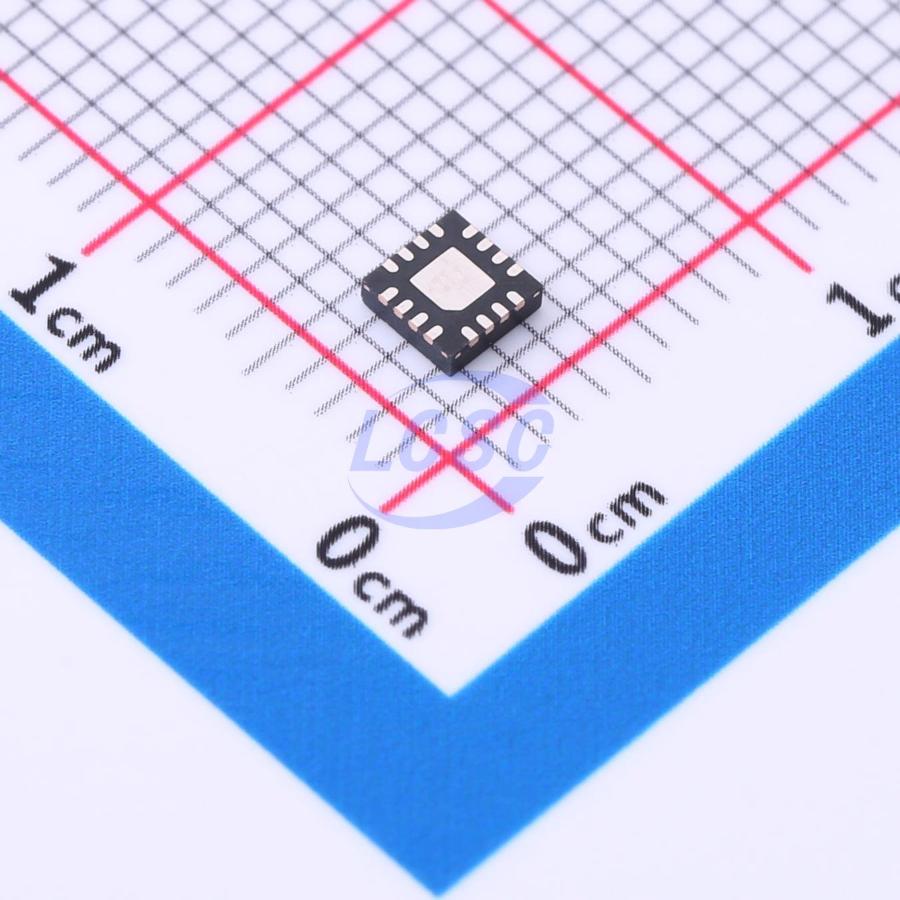

TPS60230RGTR
1MHz PWM 5 DC-DC 25mA 2.7V~6.5V VQFN-16-EP(3x3) LED Drivers RoHS
White LED Charge Pump Current Source with PWM Brightness Control
- Manufacturer
- TI
- Manufacturer part #
- TPS60230RGTR
- Store part #
- C1848364
- Package / case
- VQFN-16-EP(3x3)
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,571 in stock
#C1848364
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.20 | ₹66.20 |
| 10+ | ₹58.38 | ₹583.80 |
| 30+ | ₹54.48 | ₹1,634.40 |
| 100+ | ₹50.58 | ₹5,058.00 |
| 500+ | ₹48.41 | ₹24,205.00 |
| 1,000+ | ₹47.10 | ₹47,100.00 |
1 × ₹66.20
₹66.20
excl. GST
₹78.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS60230RGTR
₹66.20 for 1 + GST
Specifications
- Frequency - Switching
- 1MHz
- Dimming
- PWM
- Number of Channels
- 5
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Output Current
- 25mA
- Operating Temperature
- -40℃~+85℃
- Features
- Built-in soft-start;Over Voltage Protection;Short Circuit Protection;Over-Temperature Protection (OTP)
- Topology
- Charge Pump
- Voltage - Input(DC)
- 2.7V~6.5V
- Constant Current Accuracy
- 4‰
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.066 g
Overview
The TPS60230 charge pump is optimized for white LED supplies in backlit color display applications. The device provides a constant current, set by an external resistor, for each LED. The supply voltage ranges from 2.7 V to 6.5 V and is ideally suited for all applications powered by a single LI-Ion battery cell or three to four NiCd, NiMH, or Alkaline battery cells. The TPS60230 provides up to 25 mA per LED, for a total of 125 mA, for input voltages ranging from 3.1 V to 6.5 V. High efficiency is achieved by utilizing a 1x/1.5x fractional conversion technique in combination with very low dropout current sources. Additionally, the current controlled charge pump ensures low input current ripple and EMI. Only two external 1 μF and two 0.47 μF capacitors are required to build a complete small and low cost power supply solution. The TP60230 switches at 1 MHz operating frequency and is available in a small 16-pin QFN (RGT) package to keep board space to a minimum.
Applications
- White LED Backlight for Color Displays in Cellular Phones, Smart Phones, PDAs, Handheld PCs, Digital Cameras, and Camcorders
- Key Backlight
Key features
- Regulated Output Current With 0.4% Matching
- Drives up to 5 LEDs at 25 mA Each
- LED Brightness Control Through PWM Control Signal
- High Efficiency by Fractional Conversion With 1x and 1.5x Modes
- 1 MHz Switching Frequency
- 2.7 V to 6.5 V Operating Input Voltage Range
- Internal Softstart Limits Inrush Current
- Low Input Ripple and Low EMI
- Overcurrent and Overtemperature Protected
- Undervoltage Lockout With Hysteresis
- Ultra-Small 3mm x 3mm QFN Package
