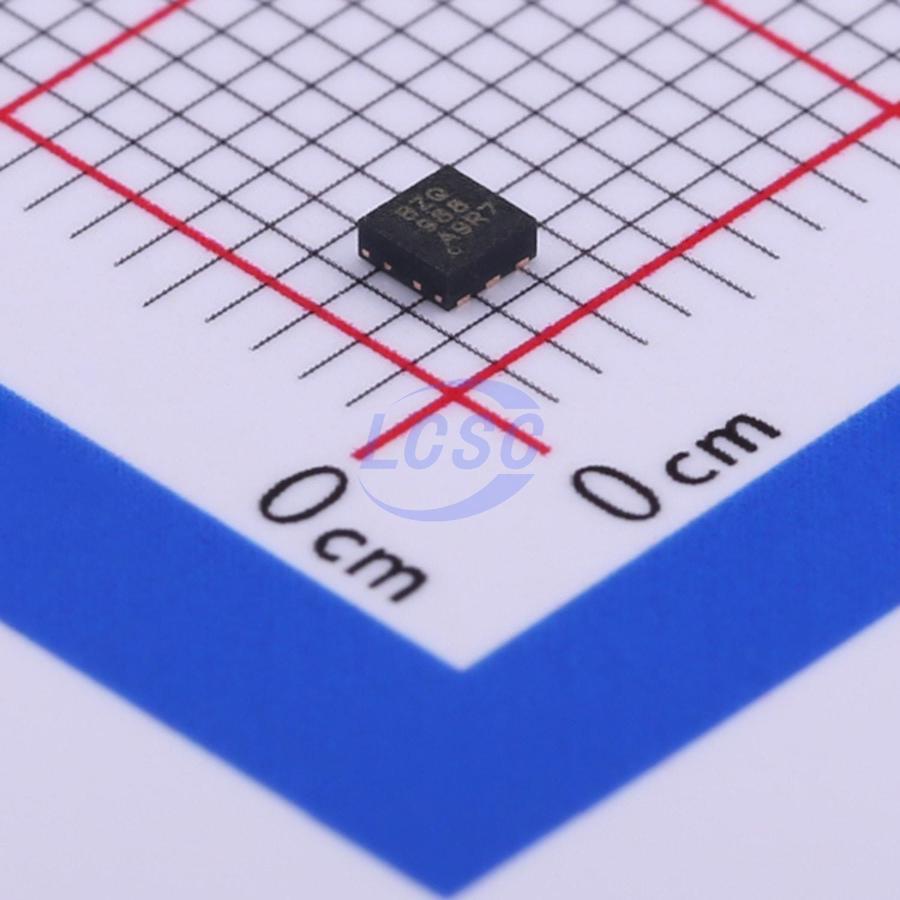

TPS61160DRVR
600kHz PWM 1 DC-DC 26V 2.7V~18V WSON-6-EP(2x2) LED Drivers RoHS
White LED Drivers With Digital and PWM Brightness Control in WSON Package
- Manufacturer
- TI
- Manufacturer part #
- TPS61160DRVR
- Store part #
- C165143
- Package / case
- WSON-6-EP(2x2)
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,820 in stock
#C165143
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.74 | ₹50.74 |
| 10+ | ₹39.37 | ₹393.70 |
| 30+ | ₹34.49 | ₹1,034.70 |
| 100+ | ₹28.35 | ₹2,835.00 |
| 500+ | ₹25.64 | ₹12,820.00 |
| 1,000+ | ₹24.01 | ₹24,010.00 |
1 × ₹50.74
₹50.74
excl. GST
₹59.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS61160DRVR
₹50.74 for 1 + GST
Specifications
- Frequency - Switching
- 600kHz
- Dimming
- PWM
- Number of Channels
- 1
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 26V
- Operating Temperature
- -40℃~+85℃
- Features
- Built-in soft-start;LED open-circuit protection;Over-Temperature Protection (OTP)
- Topology
- Boost
- Constant Current Accuracy
- 2%
- Voltage - Input(DC)
- 2.7V~18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.158 g
Overview
With a 40-V rated integrated switch FET, the TPS61160 and TPS61161 are boost converters that drive LEDs in series. The boost converters run at 600-kHz fixed switching frequency to reduce output ripple, improve conversion efficiency, and allow for the use of small external components. The default white LED current is set with the external sensor resistor RSET, and the feedback voltage is regulated to 200 mV. During the operation, the LED current can be controlled using the one-wire digital interface (EasyScale protocol) through the CTRL pin. Alternatively, a pulse width modulation (PWM) signal can be applied to the CTRL pin through which the duty cycle determines the feedback reference voltage. In either digital or PWM mode, the TPS61160 and TPS61161 do not burst the LED current; therefore, they do not generate audible noises on the output capacitor. For maximum protection, the device features integrated open LED protection that disable the TPS61160 and/or TPS61161 to prevent the output voltage from exceeding the device's absolute maximum voltage ratings during open LED conditions. The TPS61160 and TPS61161 are available in a space-saving, 2-mm × 2 -mm WSON package with thermal pad.
Applications
- Cellular Phones
- Portable Media Players
- Ultra Mobile Devices
- GPS Receivers
- White LED Backlighting for Media Form Factor Display
Key features
- 2.7-V to 18-V Input Voltage Range
- 26-V Open LED Protection (TPS61160)
- 38-V Open LED Protection (TPS61161)
- 200 mV Reference Voltage With ±2% Accuracy
- Flexible Digital and PWM Brightness Control
- Built-in Soft Start
- Up to 90% Efficiency
