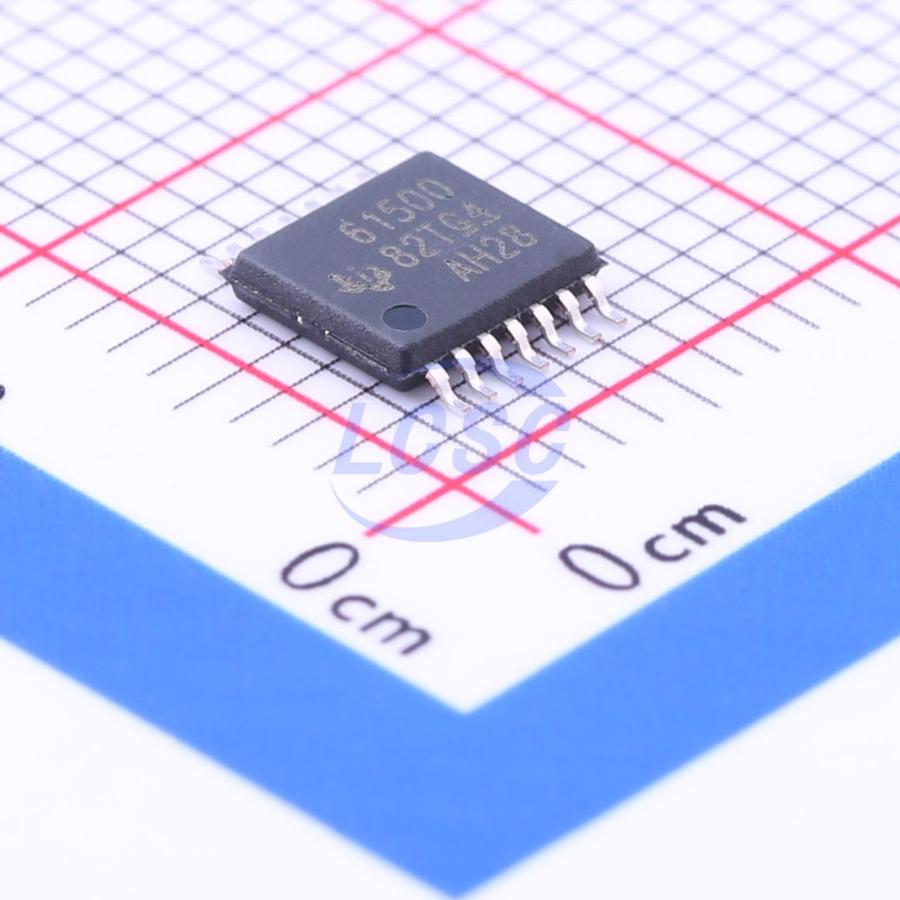

TPS61500PWPR

The TPS61500 is a monolithic switching regulator with integrated 3-A, 40-V power switch. It is an ideal driver for high brightness 1-W or 3-W LED. The device has a wide input voltage range to support application with input voltage from multi-cell batteries or regulated 5-V, 12-V power rails. The LED current is set with an external sensor resistor R3, and the feedback voltage that is regulated to 200 mV by current mode PWM (pulse width modulation) control loop. The device supports analog and pure PWM dimming methods for LED brightness control. Connecting a capacitor to the DIMC pin configures the device to be used for analog dimming, and the LED current varies proportional to the duty cycle of an external PWM signal. Floating the DIMC pin configures the IC for pure PWM dimming with the average LED current being the PWM signal's duty cycle times a set LED current. The device features a programmable soft-start function to limit inrush current during start-up, and has built-in other protection features, such as pulse-by-pulse over current limit, over voltage protection and thermal shutdown. The TPS61500 is available in 14-pin HTSSOP package with PowerPad.

Applications

• Monitor Backlight 1-W or 3-W High-Brightness LED

Key features

• 2.9-V to 18-V Input Voltage Range
• 3-A, 40-V Internal Power Switch
• Four 3-W LEDs From 5-V input
• Eight 3-W LEDs From 12-V input
• High Efficiency Power Conversion: Up to 93%
• Frequency Set by External Resistor: 200-kHz to 2.2-MHz
• User Defined Soft Start Into Full Load
• Programmable Overvoltage Protection
• Analog and Pure PWM Brightness Dimming
• 14-Pin HTSSOP Package With PowerPad
