MSKSEMI

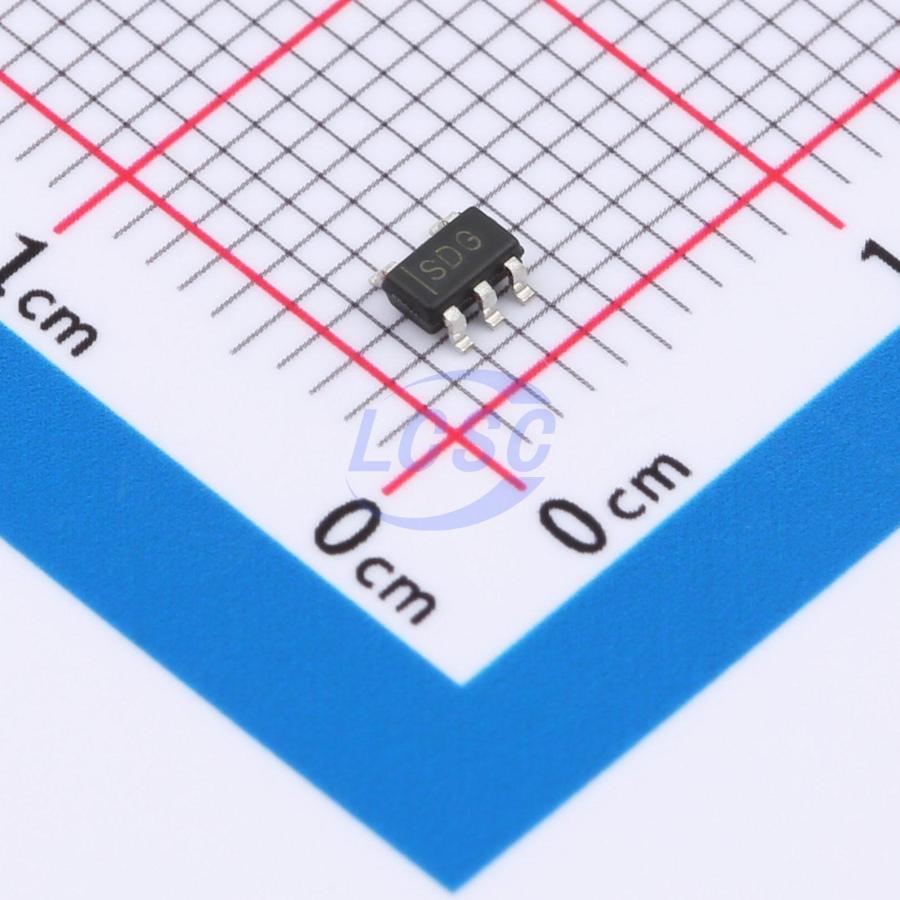

TPS70933DBVR-MS

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

Low Dropout (LDO) Voltage Regulator

Manufacturer: MSKSEMI
Manufacturer part #: TPS70933DBVR-MS
Store part #: C30197521
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,955 in stock

#C30197521

Stock & price checked 41 h ago

Quantity	Unit price	Pack price
5+	₹18.16	₹90.80
50+	₹14.51	₹725.50
150+	₹12.69	₹1,903.50
500+	₹11.31	₹5,655.00
2,500+	₹9.08	₹22,700.00
5,000+	₹8.53	₹42,650.00

Quantity (min 5, multiples of 5)

5 × ₹18.16

₹90.80

excl. GST

₹107.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS70933DBVR-MS

₹90.80 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 2.2uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 24V
Features: Enable control;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.04 g

Overview

The TPS709XXDBVR-MS series are a group of low-dropout (LDO) voltage regulators offering the benefits of wide input voltage range, low dropout voltage, low power consumption, and miniaturized packaging. Quiescent current of only 1.5μA makes these devices ideal for powering the battery-powered, always-on systems that require very little idle-state power dissipation to a longer service life. The TPS709XXDBVR-MS series of linear regulators are stable with the ceramic output capacitor over its wide input range from 2V to 24V and the entire range of output load current (0mA to 300mA).

Applications

Portable, Battery Powered Equipment
Low Power Microcontrollers
Laptop, Palmtops and PDAs
Wireless Communication Equipment
Audio/Video Equipment
Car Navigation Systems
Industrial Controls
Weighting Scales Meters
Home Automation

Key features

1.5μA Ground Current at no Load
±2% Output Accuracy
300mA Output Current
Wide Operating Input Voltage Range: 2V to 24V
Dropout Voltage: 0.35V at 100mA / VOUT 5V
Support Fixed Output Voltage 1.8V, 3.3V, 5V
Stable with Ceramic or Tantalum Capacitor
Current Limit Protection
Over-Temperature Protection
SOT - 23 - 5 Packages Available

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TPS76333DBVR-MS#C30197527MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	On request	₹22.90 · 0 in stock	View
MIC5219-3.3YM5-MS#C30197485MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	2,820	₹26.50 · 2,820 in stock	View
LP2985-33DBVR-MS#C30197522MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	860	₹16.63 · 860 in stock	View
MSP7118AUJZ-3.3#C49375262MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	2,993	₹53.87 · 2,993 in stock	View
LP2992IM5-3.3-MS#C54540032MSKSEMI · SOT-23-5	MSKSEMI	SOT-23-5	2,535	₹19.13 · 2,535 in stock	View
