MSKSEMI

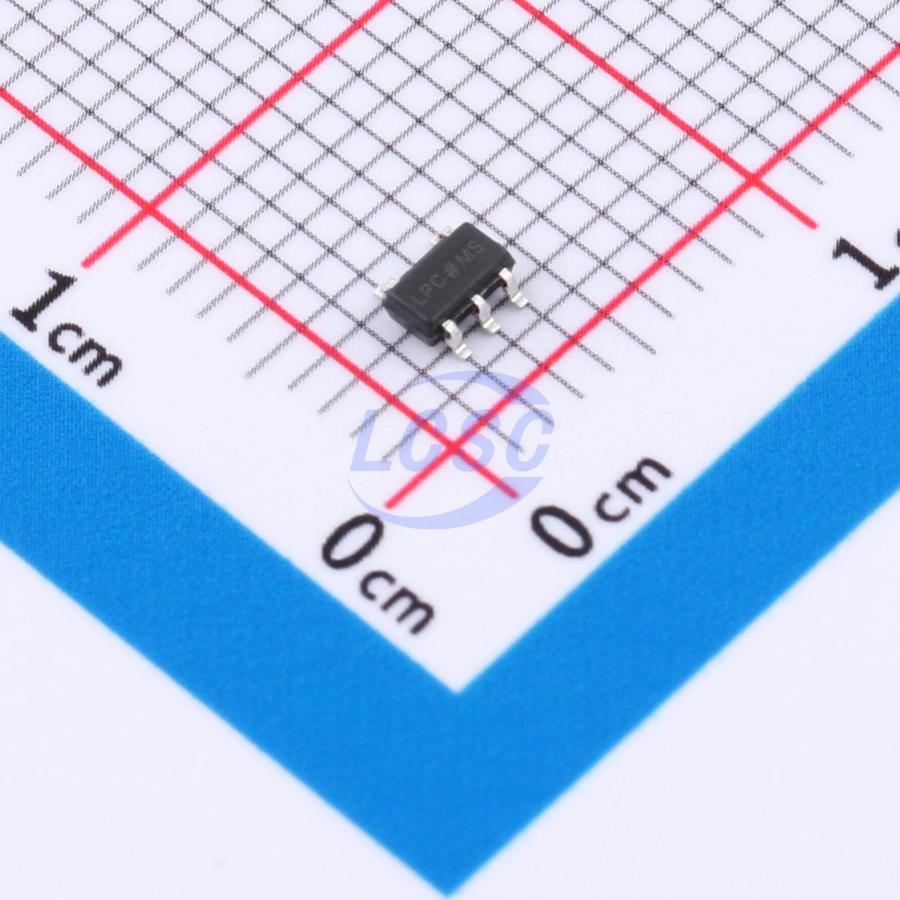

MSP7118AUJZ-3.3

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

IC REG LINEAR 3.3V 300mA SOT-23-5

Manufacturer: MSKSEMI
Manufacturer part #: MSP7118AUJZ-3.3
Store part #: C49375262
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,993 in stock

#C49375262

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹53.87	₹53.87
10+	₹48.01	₹480.10
30+	₹44.97	₹1,349.10
100+	₹42.15	₹4,215.00
500+	₹38.46	₹19,230.00
1,000+	₹37.59	₹37,590.00

Quantity (min 1)

1 × ₹53.87

₹53.87

excl. GST

₹63.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MSP7118AUJZ-3.3

₹53.87 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃
Supply Current (Iq): 2.2uA
Output Configuration: Positive
Output Current: 300mA
Operating Voltage: 24V
Output Type: Fixed
Features: Enable control;Over Current Protection;Short Circuit Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1 g

Overview

The MSP7118AUJZ-x.x series is a family of low-dropout voltage regulators featuring a wide input voltage range, low dropout voltage, low power consumption, and a compact package. With a quiescent current of only 1.5μA, they are ideal for battery-powered, always-on systems that require extremely low idle-state power consumption to extend operating life. This series of linear regulators maintains stability with ceramic output capacitors across a wide input voltage range of 2V to 24V and an output load current range of 0mA to 300mA.

Applications

Portable battery-powered devices
Low-power microcontrollers
Laptops, handheld computers, and PDAs
Wireless communication devices
Audio/video equipment

Key features

Quiescent current: 1.5μA (no load)
Output accuracy: ±2%
Output current: 300mA
Wide input voltage range: 2V to 24V
Dropout voltage: 0.35V at 100mA output current, 5V output output
Fixed output voltage options: 1.8V, 2.5V, 3.3V, 5V
Stable with ceramic or tantalum capacitors
Current limiting protection
Over-temperature protection
Available in SOT-23-5 package
