TECH PUBLICDatasheet (PDF)

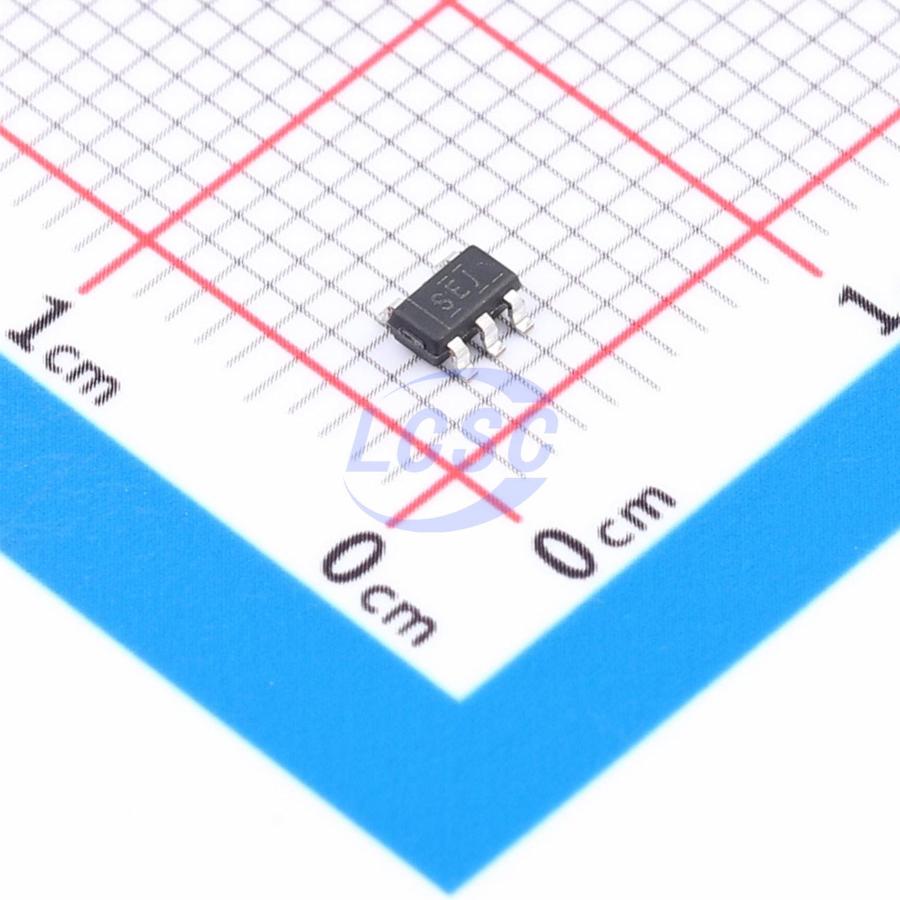

TPS70936DBVR-TP
Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
IC REG LINEAR 200mA SOT-23-5
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPS70936DBVR-TP
- Store part #
- C49452323
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,355 in stock
#C49452323
Stock & price checked 18 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.43 | ₹82.15 |
| 50+ | ₹12.99 | ₹649.50 |
| 150+ | ₹11.27 | ₹1,690.50 |
| 500+ | ₹9.99 | ₹4,995.00 |
| 3,000+ | ₹8.96 | ₹26,880.00 |
| 6,000+ | ₹8.43 | ₹50,580.00 |
5 × ₹16.43
₹82.15
excl. GST
₹96.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS70936DBVR-TP
₹82.15 for 5 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 36V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
The TP709 is an LDO voltage regulator with an enable function, featuring high input voltage, low dropout, low power consumption, and a compact package. With a quiescent current as low as 2μA and zero shutdown current, it is ideal for extending battery life in battery-powered devices. The device remains stable with ceramic output capacitors across a wide input voltage range of 2V to 36V and over the full output load current range.
Applications
- Portable battery-powered devices
- Low-power microcontrollers
- Wireless communication devices
- Industrial control
- Home automation
Key features
- 2μA quiescent ground current (no load)
- ±2% output accuracy
- 200mA output current
- Wide input voltage range: 2V to 36V
- Dropout voltage: 0.65V at 100mA load, VOUT = 5V
- Fixed output voltage options: 1.8V, 3.3V, 5V, 9V, 12V
- Stable with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
- Available in SOT-23-5 package
