TIDatasheet (PDF)

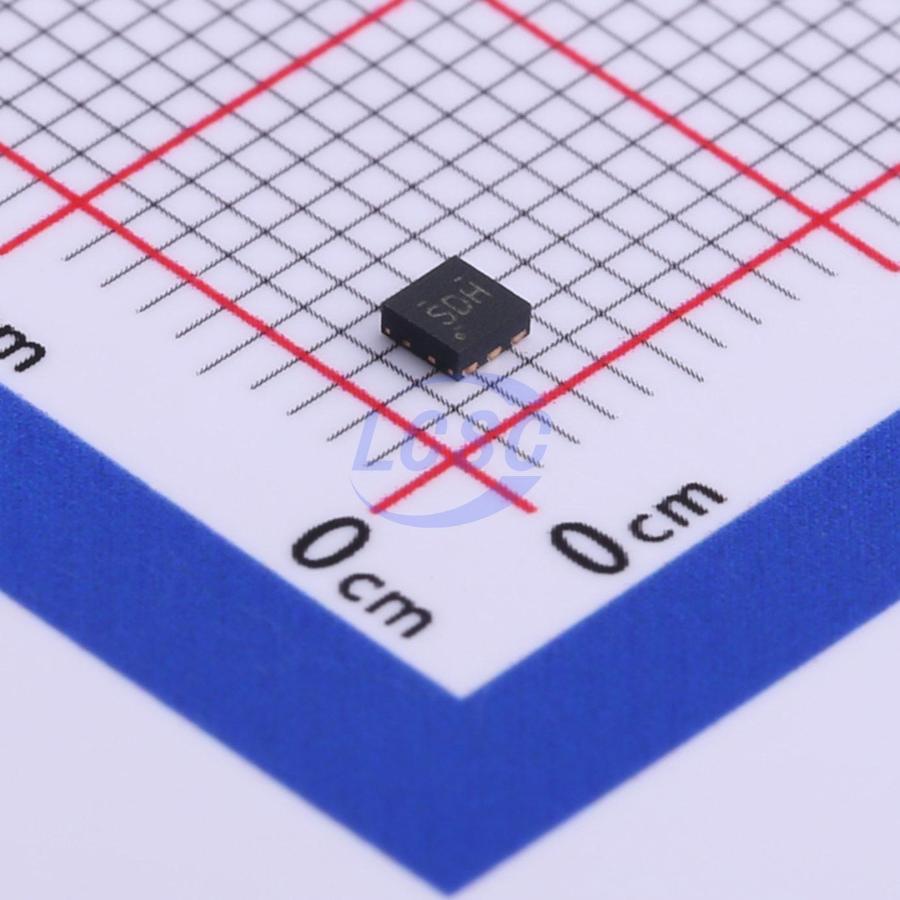

TPS70950DRVR
5V Positive Fixed WSON-6-EP(2x2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
WSON-6-EP(2x2)ROHS3 CompliantActive
150mA, 30V ultra-low IQ, low-dropout regulator with reverse current protection and enable function
- Manufacturer
- TI
- Manufacturer part #
- TPS70950DRVR
- Store part #
- C527527
- Package / case
- WSON-6-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,206 in stock
#C527527
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.62 | ₹70.62 |
| 10+ | ₹57.58 | ₹575.80 |
| 30+ | ₹51.93 | ₹1,557.90 |
| 100+ | ₹44.76 | ₹4,476.00 |
| 500+ | ₹41.71 | ₹20,855.00 |
| 1,000+ | ₹39.77 | ₹39,770.00 |
1 × ₹70.62
₹70.62
excl. GST
₹83.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS70950DRVR
₹70.62 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1uA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 150mA
- Features
- Enable control;Reverse-polarity current protection;Thermal shutdown;Over Current Protection;Input under-voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.031 g
Overview
The TPS709 series of linear regulators are ultralow, quiescent current devices designed for powersensitive applications. A precision band-gap and error amplifier provides 2% accuracy over temperature. Quiescent current of only 1 μA makes these devices ideal solutions for battery-powered, always-on systems that require very little idle-state power dissipation. These devices have thermal-shutdown, current-limit, and reverse-current protections for added safety. Shutdown mode is enabled by pulling the EN pin low. The shutdown current in this mode goes down to 150 nA, typical. The TPS709 series is available in WSON-6 and SOT-23-5 packages.
Applications
- Zigbee Networks
- Home Automation
- Metering
- Weighing Scales
- Portable Power Tools
- Remote Control Devices
- Wireless Handsets, Smart Phones, PDAs, WLAN, and Other PC Add-On Cards
- White Goods
Key features
- Ultralow IQ: 1 μA
- Reverse Current Protection
- Low ISHUTDOWN: 150 nA
- Input Voltage Range: 2.7 V to 30 V
- Supports 200-mA Peak Output
- 2% Accuracy Over Temperature
- Available in Fixed-Output Voltages: 1.2 V to 6.5 V
- Thermal Shutdown and Overcurrent Protection
- Packages: SOT-23-5, WSON-6
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS70950QDRVRQ1#C2872594TI · WSON-6-EP(2x2) | TI | WSON-6-EP(2x2) | 3,193 | ₹195.54 · 3,193 in stock | View |
 | TPS7B8150QDRVRQ1#C2876221TI · WSON-6-EP(2x2) | TI | WSON-6-EP(2x2) | 40 | ₹127.99 · 40 in stock | View |
 | TPS7B8250QDRVRQ1#C2862522TI · WSON-6-EP(2x2) | TI | WSON-6-EP(2x2) | 1,328 | ₹203.29 · 1,328 in stock | View |
 | AP7387Q-50FDCW-7#C5553335DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | 5 | ₹459.89 · 5 in stock | View |
 | AP7387-50FDC-7#C6125714DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | 3 | ₹53.62 · 3 in stock | View |
