TIDatasheet (PDF)

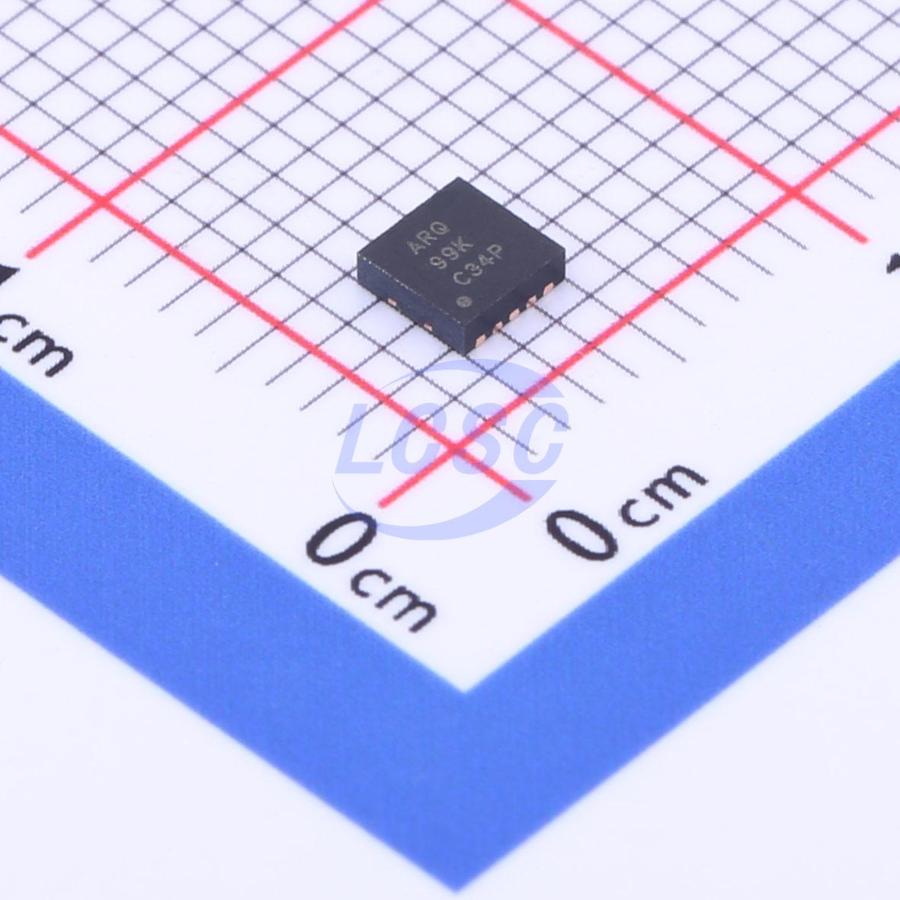

TPS71202DRCR
1.2V~5.5V Positive Adjustable HVSON-10-EP(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
HVSON-10-EP(3x3)ROHS3 CompliantActive
250mA, dual-channel low-dropout regulator with enable functionality
- Manufacturer
- TI
- Manufacturer part #
- TPS71202DRCR
- Store part #
- C962536
- Package / case
- HVSON-10-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,987 in stock
#C962536
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹252.63 | ₹252.63 |
| 10+ | ₹212.47 | ₹2,124.70 |
| 30+ | ₹187.52 | ₹5,625.60 |
| 100+ | ₹161.68 | ₹16,168.00 |
| 500+ | ₹150.19 | ₹75,095.00 |
| 1,000+ | ₹145.20 | ₹1,45,200.00 |
1 × ₹252.63
₹252.63
excl. GST
₹298.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS71202DRCR
₹252.63 for 1 + GST
Specifications
- Output Voltage
- 1.2V~5.5V
- Number of Outputs
- 2
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 300uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 250mA
- Features
- Enable control;Thermal shutdown;Input under-voltage protection;Noise bypass terminal;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.075 g
Overview
Dual ±50 mA High-Performance RF LDOs Available in Fixed and Adjustable Voltage Options (1.2 V to 5.5 V) High PSRR: 65 dB at 10 kHz • UltraLow Noise: 32 μVrms Fast Start-Up Time: 60 μs Stable with 2.2 μF Ceramic Capacitor Excellent Load/Line Transient Response Very Low Dropout Voltage: 125 mV at 250 mA Independent Enable Pins Thermal Shutdown and Independent Current Limit Available in Thermally-Enhanced SON Package: 3mm x 3mm x 1mm
Applications
- Cellular and Cordless Phones
- Wireless PDA/Handheld Products
- PCMCIA/Wireless LAN Applications
- Digital Camera/Camcorder/Internet Audio
- DSP/FPGA/ASIC/Controllers and Processors
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TPS71202DRCT#C2869622TI · VSON-10(3x3) | TI | VSON-10(3x3) | 78 | ₹453.37 · 78 in stock | View | |
 | TPS71202MDRCTEP#C2870408TI · VSON-10(3x3) | TI | VSON-10(3x3) | 20 | ₹1,183.86 · 20 in stock | View |
