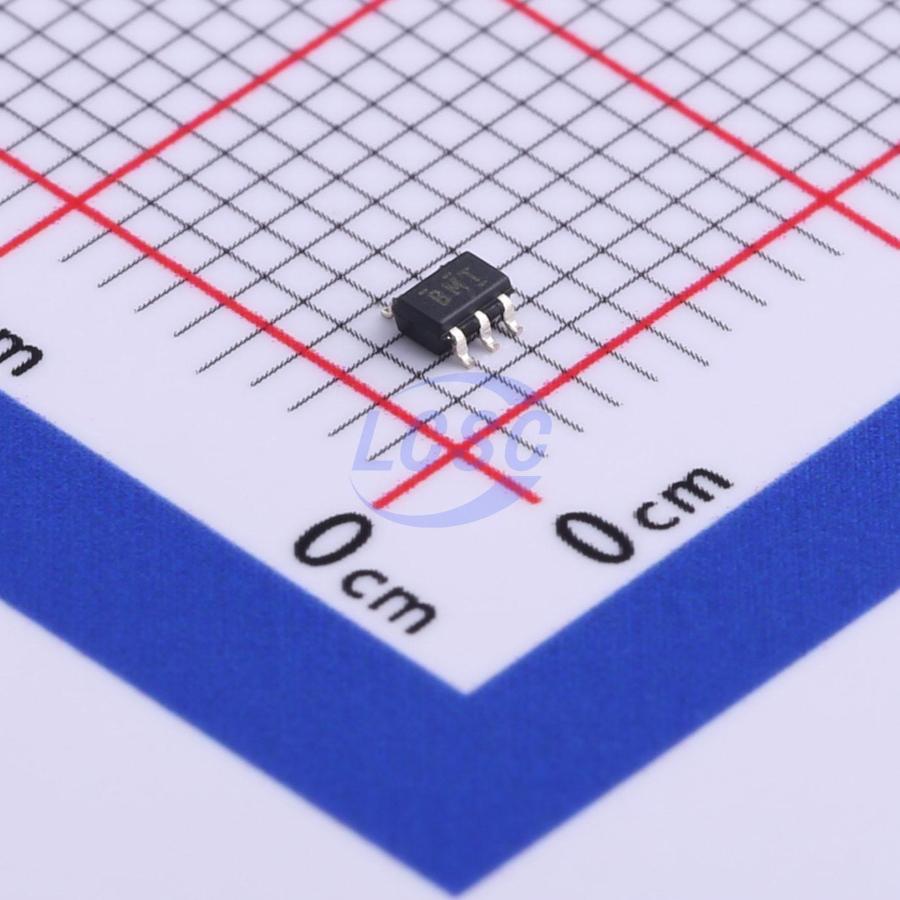

TPS71701DCKR

900mV~6.2V Positive Adjustable SC-70-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SC-70-5ROHS3 CompliantActive

150mA, high PSRR, low IQ, low dropout voltage regulator with enable function

Manufacturer: TI
Manufacturer part #: TPS71701DCKR
Store part #: C544692
Package / case: SC-70-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,683 in stock

#C544692

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹77.77	₹77.77
10+	₹61.25	₹612.50
30+	₹54.31	₹1,629.30
100+	₹45.41	₹4,541.00
500+	₹38.01	₹19,005.00
1,000+	₹35.84	₹35,840.00

Quantity (min 1)

1 × ₹77.77

₹77.77

excl. GST

₹91.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS71701DCKR

₹77.77 for 1 + GST

Specifications

Output Voltage: 900mV~6.2V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 25uA
Output Configuration: Positive
Operating Voltage: 6.5V
Output Current: 150mA
Features: Enable control;Noise bypass terminal;Input under-voltage protection;Over Current Protection;Thermal shutdown
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.028 g

Overview

The TPS717 family of low-dropout (LDO), low-power linear regulators offers very high power-supply rejection (PSRR) while maintaining very low 45-μA ground current in an ultra-small, five-pin SOT package. The family uses an advanced BiCMOS process and a PMOS pass device to achieve fast start-up, very low noise, excellent transient response, and excellent PSRR performance. The TPS717 is stable with a 1-μF ceramic output capacitor and uses a precision voltage reference and feedback loop to achieve a worst-case accuracy of 3% over all load, line, process, and temperature variations. The device family is fully specified from TJ = -40°C to 125°C and is offered in a small SOT (SC70-5) package, a 2-mm × 2-mm WSON-6 package with a thermal pad, and a 1.5-mm × 1.5-mm WSON-6 package, which are ideal for small form factor portable equipment (such as wireless handsets and PDAs).

Applications

Camera Sensor Power
Mobile Phone Handsets
PDAs and Smartphones
Wireless LAN, Bluetooth

Key features

Input Voltage: 2.5 V to 6.5 V
Available in Multiple Output Versions: Fixed Output with Voltages from 0.9 V to 5 V
Adjustable Output Voltage from 0.9 V to 6.2 V
Ultra-High PSRR: 70 dB at 1 kHz, 67 dB at 100 kHz, and 45 dB at 1 MHz
Excellent Load and Line Transient Response
Very Low Dropout: 170 mV typical at 150 mA
Low Noise: 30 μV RMS typical (100 Hz to 100 kHz)
Small 5-pin SC-70, 2-mm × 2-mm WSON-6, and 1.5-mm × 1.5-mm WSON-6 Packages
