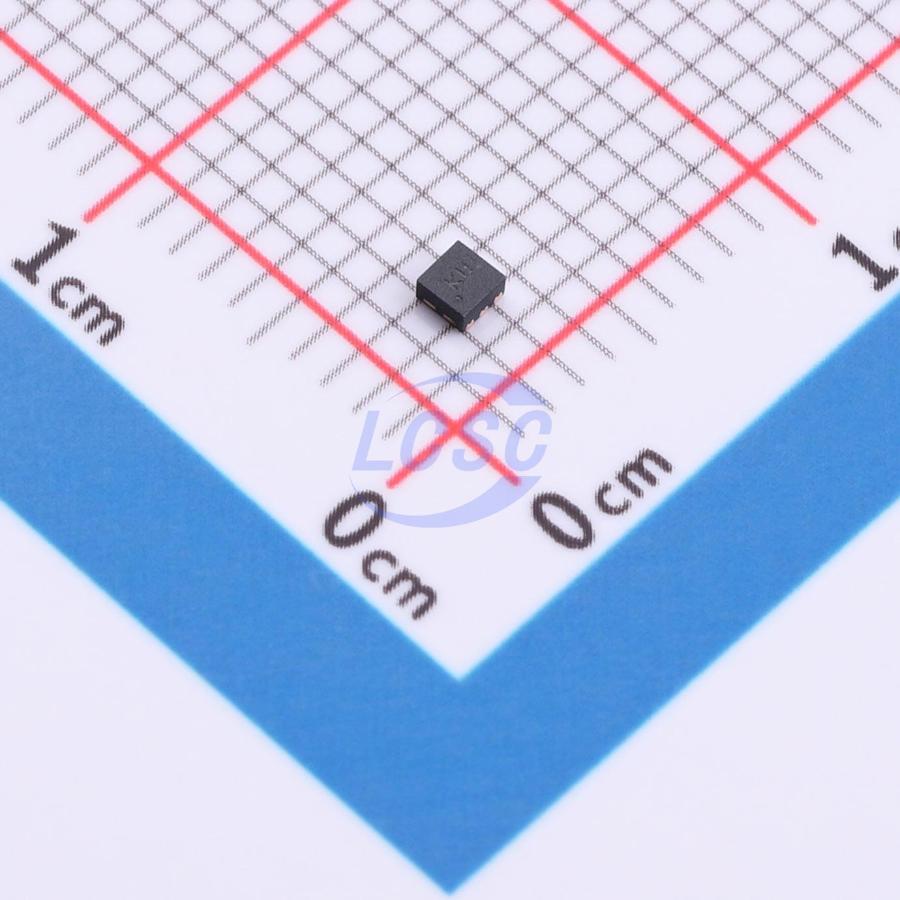

TPS71727DSER

2.7V Positive Fixed WSON-6(1.5x1.5) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

WSON-6(1.5x1.5)ROHS3 CompliantActive

150mA, high PSRR, low IQ, low dropout voltage regulator with enable function

Manufacturer: TI
Manufacturer part #: TPS71727DSER
Store part #: C2867965
Package / case: WSON-6(1.5x1.5)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C2867965

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹205.38	₹205.38
10+	₹200.20	₹2,002.00
30+	₹196.52	₹5,895.60
100+	₹192.84	₹19,284.00

Quantity (min 1)

1 × ₹205.38

₹205.38

excl. GST

₹242.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS71727DSER

₹205.38 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 2.7V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 45uA
Output Configuration: Positive
Operating Voltage: 6.5V
Output Current: 150mA
Features: Enable control;Input under-voltage protection;Thermal shutdown;Over Current Protection;Noise bypass terminal
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.72 g

Overview

The TPS717xx series low-dropout (LDO), low-power linear regulators are available in an ultra-small 5-pin small-outline transistor (SOT) package, featuring very high power supply rejection ratio (PSRR) while maintaining an ultra-low ground current of 45μA. These regulators employ an advanced BiCMOS process and PMOSFET passive devices to achieve fast startup, ultra-low noise, excellent transient response, and outstanding PSRR performance. The TPS717xx devices remain stable when operating with a 1μF ceramic output capacitor, and utilize a precision voltage reference and feedback loop to achieve a minimum accuracy of 3% across all load, line, process, and temperature variations. The device series is rated for an operating temperature range of TJ = -40°C to 125°C, and is available in a small SOT (SC70-5) package, a 2mm×2mm WSON-6 package with thermal pad, and a 1.5mm×1.5mm WSON-6 package, making it ideal for compact portable devices such as wireless handhelds and PDAs.

Applications

Camera sensor power supply
Mobile phone headset
PDA and smartphone
Wireless LAN, Bluetooth

Key features

Input voltage: +2.5V to +6.5V
Multiple output versions available: fixed output voltage range: 0.9V to 5V, adjustable output voltage range: 0.9V to 6.2V
Ultra-high PSRR: 70dB at 1kHz, 67dB at 100kHz, 45dB at 1MHz
Excellent load and line transient response
Ultra-low dropout: 170mV (typical) at 150mA
Low noise: 30μVRMS typical (100Hz to 100kHz)
Compact 5-pin SC-70, 2mm×2mm WSON-6, and 1.5mm×1.5mm WSON-6 packages
