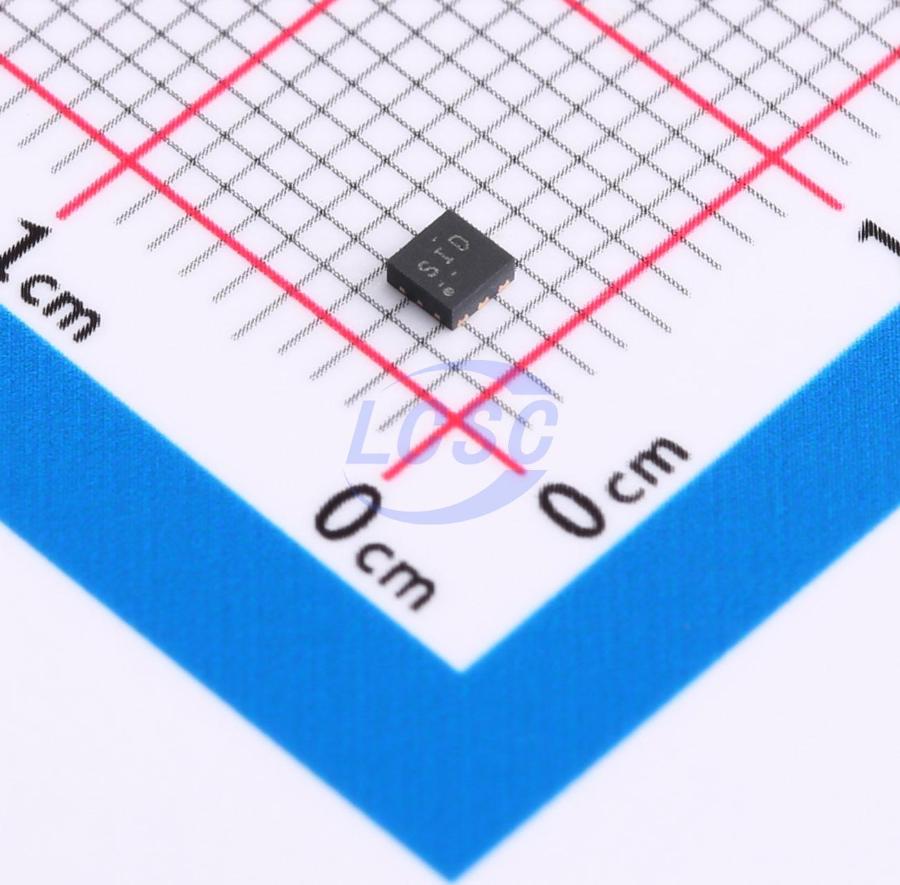

TPS71733QDRVRQ1

The TPS717-Q1 family of low-dropout (LDO), low-power linear regulators offers very high power-supply rejection (PSRR) and maintains very low 45-μA ground current in an ultra-small, five-pin SOT package. The family uses an advanced BiCMOS process and a PMOSFET pass device to achieve fast start-up, very low noise, excellent transient response, and excellent PSRR performance. The TPS717-Q1 is stable with a 1-μF ceramic output capacitor and uses a precision voltage reference and feedback loop to achieve a worst-case accuracy of 3% over all load, line, process, and temperature variations. The device family is fully specified from TJ, TA = -40°C to 125°C and is offered in a small SOT (SC70-5) package, a 2-mm × 2-mm WSON-6 package with a thermal pad, and a 1.5-mm × 1.5-mm WSON-6 package, which are ideal for small form-factor portable equipment (such as wireless handsets and PDAs). The TPS717-Q1 family of LDOs is qualified for AEC-Q100 grade 1.

Applications

• PLLs
• VCOs
• Camera Sensor Power
• Microcontroller Power
• Wireless LAN
• Bluetooth
• ADAS and Infotainment Systems

Key features

• AEC-Q100 Qualified with the Following Results:
• Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range
• Device HBM ESD Classification Level 2
• Device HBM ESD Classification Level C4B
• Input Voltage: 2.5 V to 6.5 V
• Available in Multiple Output Versions:
• Fixed Output with Voltages from 0.9 V to 5 V
• Adjustable Output Voltage from 0.9 V to 6.2 V
