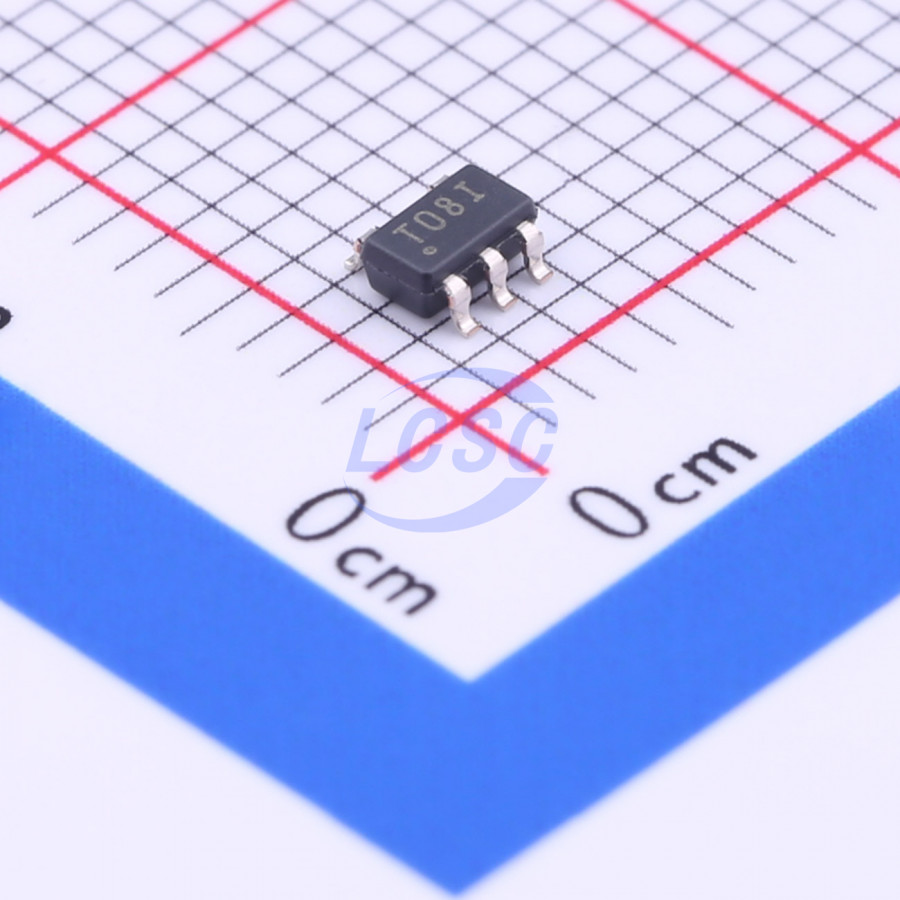

TPS72301DBVR

The TPS723xx family of low-dropout (LDO) negative voltage regulators offers an ideal combination of features to support low noise applications. These devices are capable of operating with input voltages from -10 V to -2.7 V, and support outputs from -10 V to -1.2 V. These regulators are stable with small, low-cost ceramic capacitors, and include enable (EN) and noise reduction (NR) functions. Thermal short-circuit and over-current protections are provided by internal detection and shutdown logic. High PSRR (65 dB at 1 kHz) and low noise (60 μV_RMS) make the TPS723xx ideal for low-noise applications. The TPS723xx uses a precision voltage reference to achieve 2% overall accuracy over load, line, and temperature variations. Available in a small SOT23-5 package, the TPS723xx family is fully specified over a temperature range of -40℃ to 125℃.

Applications

• Optical Drives
• Optical Networking
• Noise Sensitive Circuitry
• GaAs FET Gate Bias
• Video Amplifiers

Key features

• Ultralow Noise: 60 μV_RMS Typical
• High PSRR: 65 dB Typical at 1 kHz
• Low Dropout Voltage: 280 mV Typical at 200 mA
• Available in -2.5 V and Adjustable (-1.2 V to -10 V) Versions
• Stable With a 2.2 μF Ceramic Output Capacitor
• Less Than 2 μA Typical Quiescent Current in Shutdown Mode
• 2% Overall Accuracy (Line, Load, Temperature)
• Thermal and Over-Current Protection
• SOT23-5 (DBV) Package
• SOT-5 (DDC) Package
• Operating Junction Temperature Range: -40°C to 125°C
