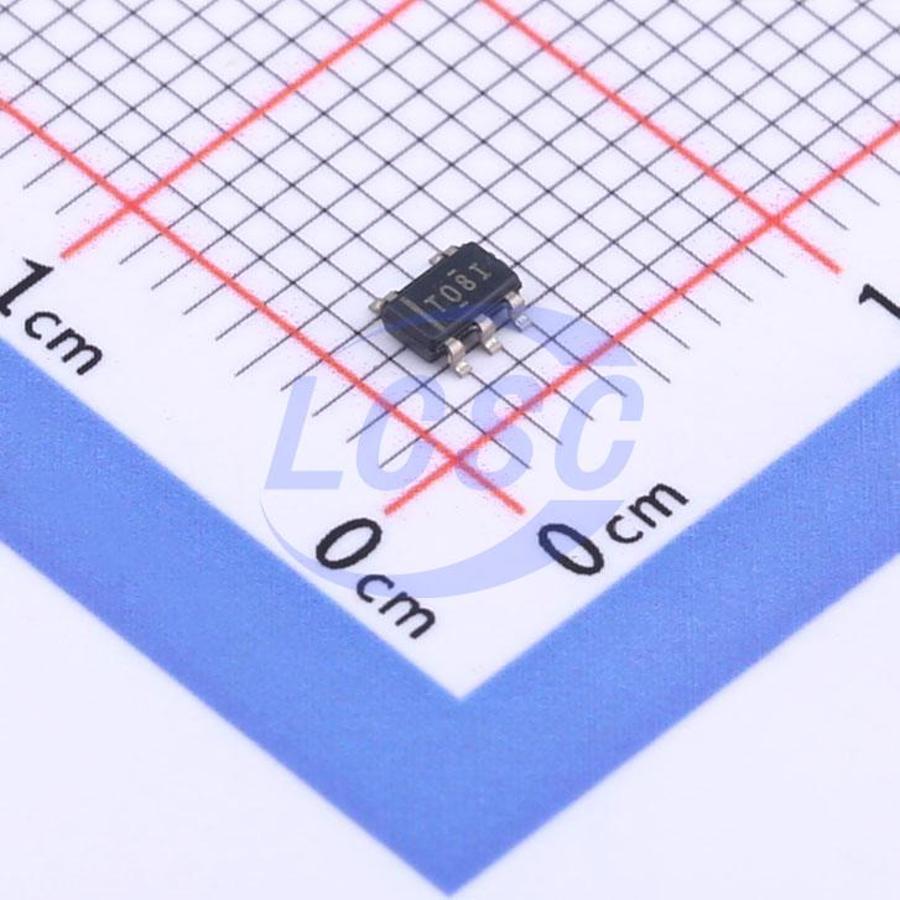

TPS72301DDCR

The TPS723 low-dropout (LDO) negative voltage regulator offers an ideal combination of features to support low noise applications. This device is capable of operating with input voltages from -10 V to -2.7 V, and support outputs from -10 V to –1.2 V. This regulator is stable with small, low-cost ceramic capacitors, and include enable (EN) and noise reduction (NR) functions. Thermal short-circuit and over-current protections are provided by internal detection and shutdown logic. High PSRR (65 dB at 1 kHz) and low noise (60 μV_RMS) make the TPS723 ideal for low-noise applications. The TPS723 uses a precision voltage reference to achieve 2% overall accuracy over load, line, and temperature variations. Available in a small SOT23-5 package, the TPS723 is fully specified over a temperature range of -40°C to 125°C.

Applications

• Optical modules
• Semiconductor manufacturing
• Medical accessories
• Oscilloscopes
• Active antenna system mMIMO (AAS)

Key features

• Ultralow noise: 60 μV_RMS typical
• High PSRR: 65 dB typical at 1 kHz
• Low dropout voltage: 280 mV typical at 200 mA, 2.5 V
• Available in -2.5-V and adjustable (-1.2 V to -10 V) versions
• Stable with a 2.2-μF ceramic output capacitor
• Less than 2 μA typical quiescent current in shutdown mode
• 2% overall accuracy (line, load, temperature)
• Thermal and over-current protection
• Packages: SOT23-5 (DBV), SOT23-5 (DDC), WSON-6 (DRV)
• Operating junction temperature range: -40°C to 125°C
