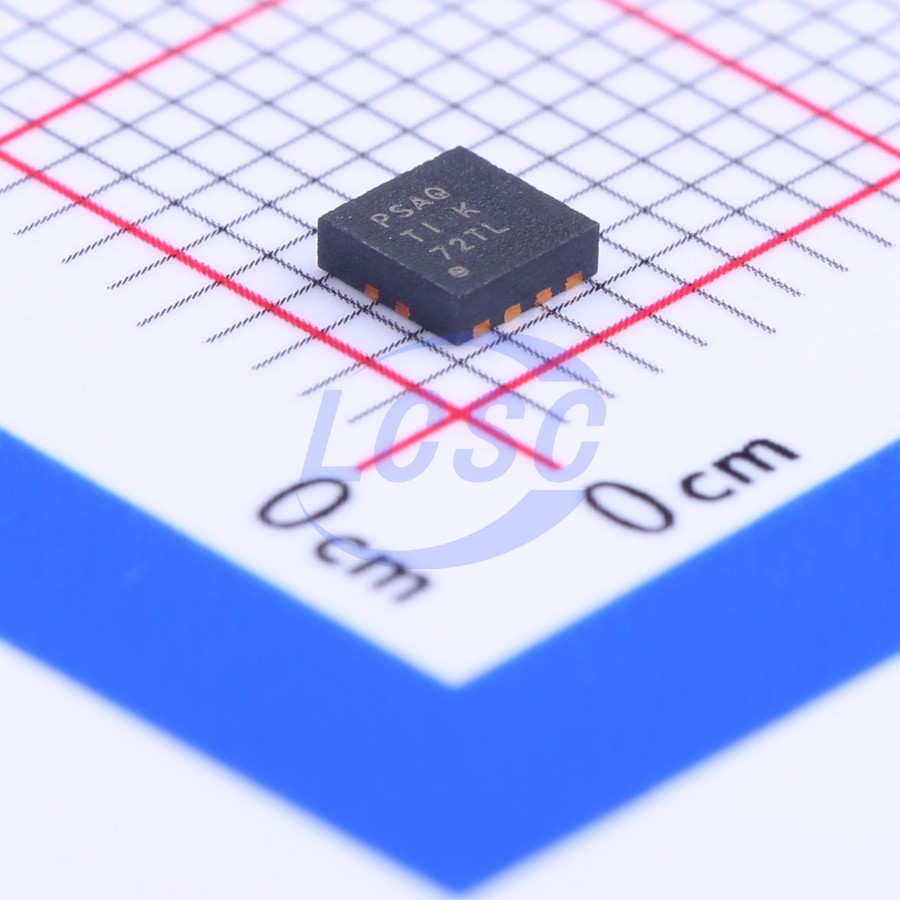

TPS73201QDRBRQ1

The TPS732-Q1 family of low-dropout (LDO) voltage regulators uses a new topology: an NMOS pass element in a voltage-follower configuration. This topology is stable using output capacitors with low ESR, and even allows operation without a capacitor. The topology also provides high reverse blockage (low reverse current) and ground pin current that is nearly constant over all values of output current. The TPS732-Q1 family of devices uses an advanced BiCMOS process to yield high precision while delivering low dropout voltages and low ground pin current. Current consumption, when not enabled, is under 1 μA and ideal for portable applications. The extremely low output noise (30 μVRMS with 0.1 - μF CN R) is ideal for powering VCOs. These devices are protected by thermal shutdown and foldback current limit.

Applications

• Portable and Battery-Powered Equipment
• Post-Regulation for Switching Supplies
• Noise-Sensitive Circuitry Such as VCOs
• Point of Load Regulation for DSPs, FPGAs, ASICs, and Microprocessors

Key features

• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results
• Device Temperature Grade 0: -40°C to 150°C Ambient Operating Temperature Range
• Device HBM Classification Level 2
• Device CDM Classification Level C4B
• Device MM Classification Level M2
• Stable With No Output Capacitor or Any Value or Type of Capacitor
• Input Voltage Range: 1.7 V to 5.5 V
• Ultra-Low Dropout Voltage: 40-mV Typical at 250 mA
• Excellent Load Transient Response—With or Without Optional Output Capacitor
• New NMOS Topology Provides Low Reverse Leakage Current
• Low Noise: 30 μV RMS Typical (10 kHz to 100 kHz)
• 0.5% Initial Accuracy
• 1% Overall Accuracy (Line, Load, and Temperature)
• Less Than 1-μA Maximum IQ in Shutdown Mode
• Thermal Shutdown and Specified Minimum and Maximum Current Limit Protection
• Available in Multiple Output Voltage Versions
• Fixed Outputs of 1.2 V, 1.5 V, 1.6 V, 1.8 V, 2.5 V, 3 V, 3.3 V, and 5 V
• Adjustable Outputs From 1.2 V to 5.5 V
• Custom Outputs Available
