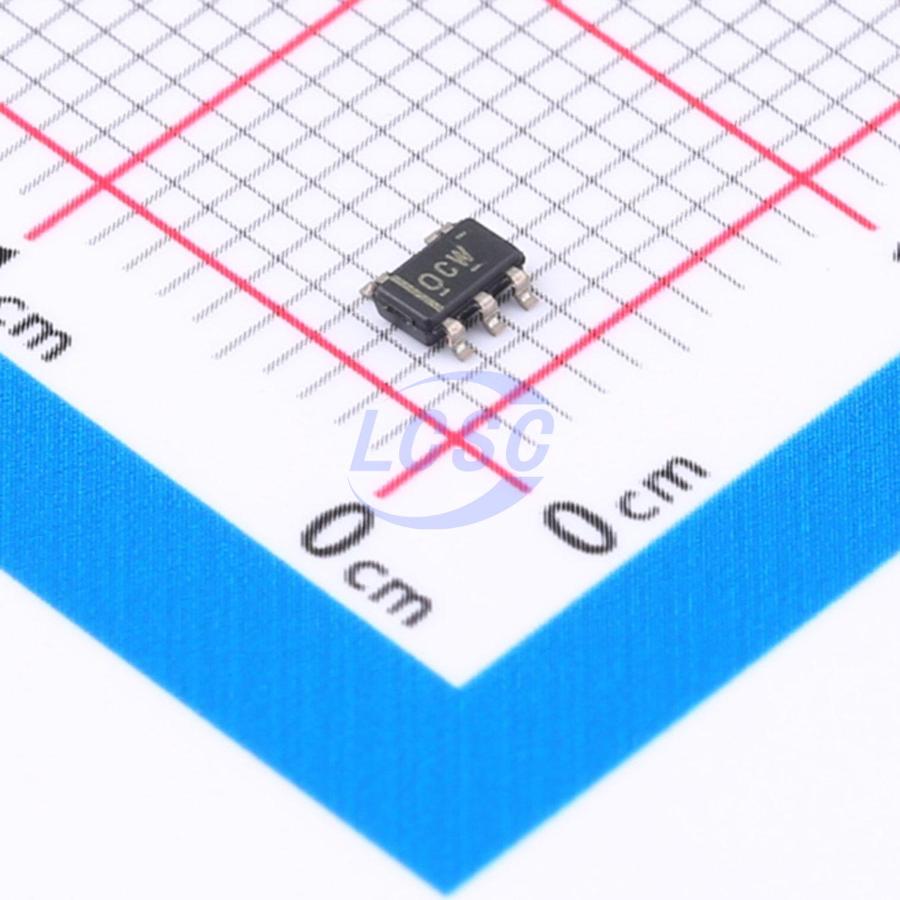

TPS73401DDCT
Linear Voltage Regulator IC Positive Adjustable 1 Output 250mA SOT-23-5
SOT-23-5ROHS3 CompliantActive
250mA, low IQ, low dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- TPS73401DDCT
- Store part #
- C2859776
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C2859776
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹97.03 | ₹97.03 |
| 10+ | ₹94.59 | ₹945.90 |
| 30+ | ₹92.98 | ₹2,789.40 |
| 100+ | ₹91.35 | ₹9,135.00 |
1 × ₹97.03
₹97.03
excl. GST
₹114.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 250 per reel
TPS73401DDCT
₹97.03 for 1 + GST
Specifications
- Output Voltage
- 1.184V~6.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃@(Ta)
- Supply Current (Iq)
- 65uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 6.5V
- Features
- Enable control;Input under-voltage protection;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 250 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.022 g
Overview
The TPS734xx-Q1 family of low-dropout (LDO), low-power linear regulators delivers excellent AC performance while maintaining ultra-low ground current. With a typical ground current of only 44μA, these devices provide high PSRR, low noise, fast startup, and excellent line and load transient response. The TPS734xx-Q1 remains stable with ceramic capacitors and uses an advanced BiCMOS process to achieve a typical dropout voltage of 125mV at an output voltage of 250mV. A precision voltage reference and feedback loop provide 2% total accuracy across full load, line, variation, and temperature ranges. Rated for an operating temperature range of TA = -40°C to +105°C and offered in a compact ThinSOT-23 package, these devices are ideal for wireless headsets, printers, and WLAN cards.
Applications
- Many RF and precision analog applications
- Portable applications
Key features
- Automotive-grade qualified
- 250mA LDO regulator with enable function (EN)
- Low I₀: 44μA
- Multiple output voltage options:
- Fixed 3.3V output
- Adjustable output from 1.25V to 6.2V
- High PSRR: 60dB at 1kHz
- Ultra-low noise: 28μV RMS
- Fast start-up time: 45μs
- Stable with typical output capacitor of 2.0μF low ESR
- Excellent load/line transient response
- 2% overall accuracy (over load/line/temperature)
- Thin SOT-23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS73401DDCR#C127461TI · TSOT-23-5 | TI | TSOT-23-5 | 1,874 | ₹109.98 · 1,874 in stock | View |
