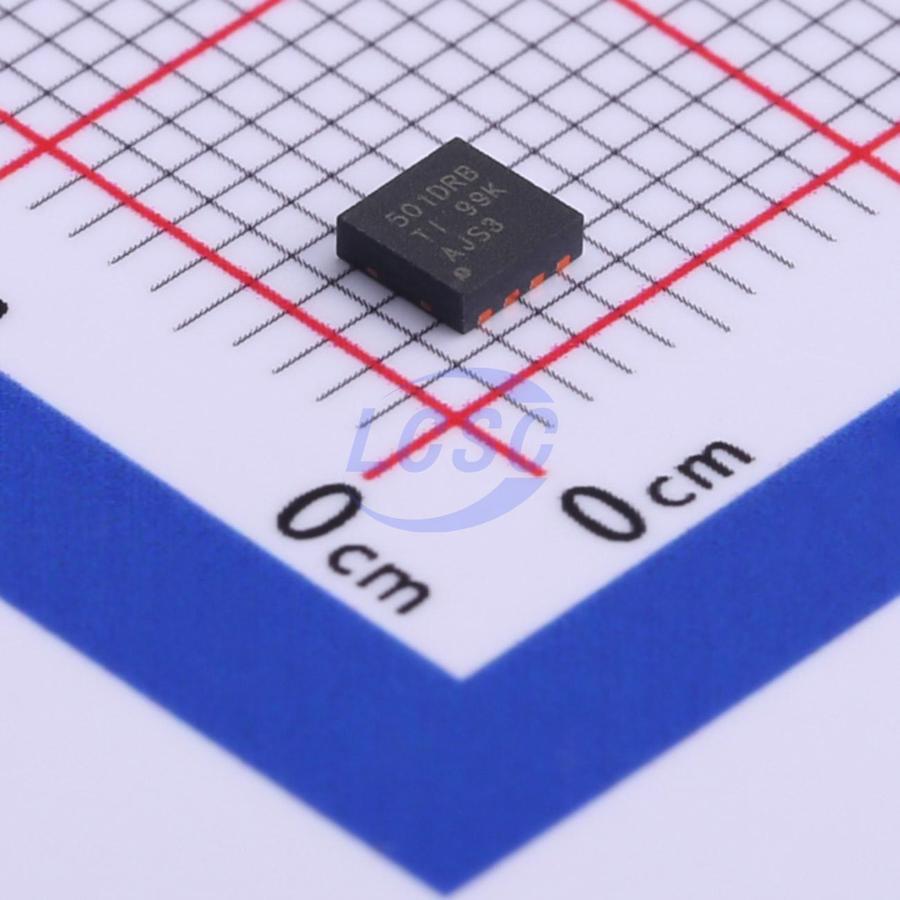

TPS73501QDRBRQ1

The TPS735-Q1 family of low-dropout (LDO), low-power linear regulators offers excellent ac performance with very low ground current. High power-supply rejection ratio (PSRR), low noise, fast start-up, and excellent line and load transient responses are provided while consuming a very low 46 μA (typical) ground current. The TPS735-Q1 family of devices is stable with ceramic capacitors and uses an advanced BiCMOS fabrication process to yield a typical dropout voltage of 280 mV at 500 - mA output. The TPS735-Q1 family of devices uses a precision voltage reference and feedback loop to achieve overall accuracy of 2% (V_OUT > 2.2 V) over all load, line, process, and temperature variations. This family of devices is fully specified from T_A = -40°C to 125°C and is offered in a low-profile, 3 - mm×3 - mm VSON package.

Applications

• Automotive infotainment
• Navigation systems
• WiFi, WiMax modules
• Telematics systems
• Microprocessor power

Key features

• Qualified for automotive applications
• AEC-Q100 qualified with the following results:
• Device temperature grade 1: -40°C to 125°C ambient operating temperature range
• Device HBM ESD classification level 2
• Device CDM ESD classification level C4B
• Input voltage: 2.7 V to 6.5 V
• 500 - mA low-dropout regulator with EN
• Low IQ: 46 μA
• Multiple output voltage versions available: Fixed outputs of 1 V to 4.3 V, Adjustable outputs from 1.25 V to 6 V
• High PSRR: 68 dB at 1 kHz
• Low noise: 13.2 μV RMS
• Fast startup time: 45 μs
• Stable with a low-ESR, 2 - μF output capacitor
• Excellent load and line transient response
• 2% overall accuracy (load, line, temperature, V_OUT > 2.2 V)
• Low dropout: 280 mV at 500 mA
• 3 - mm×3 - mm VSON-8 packages
