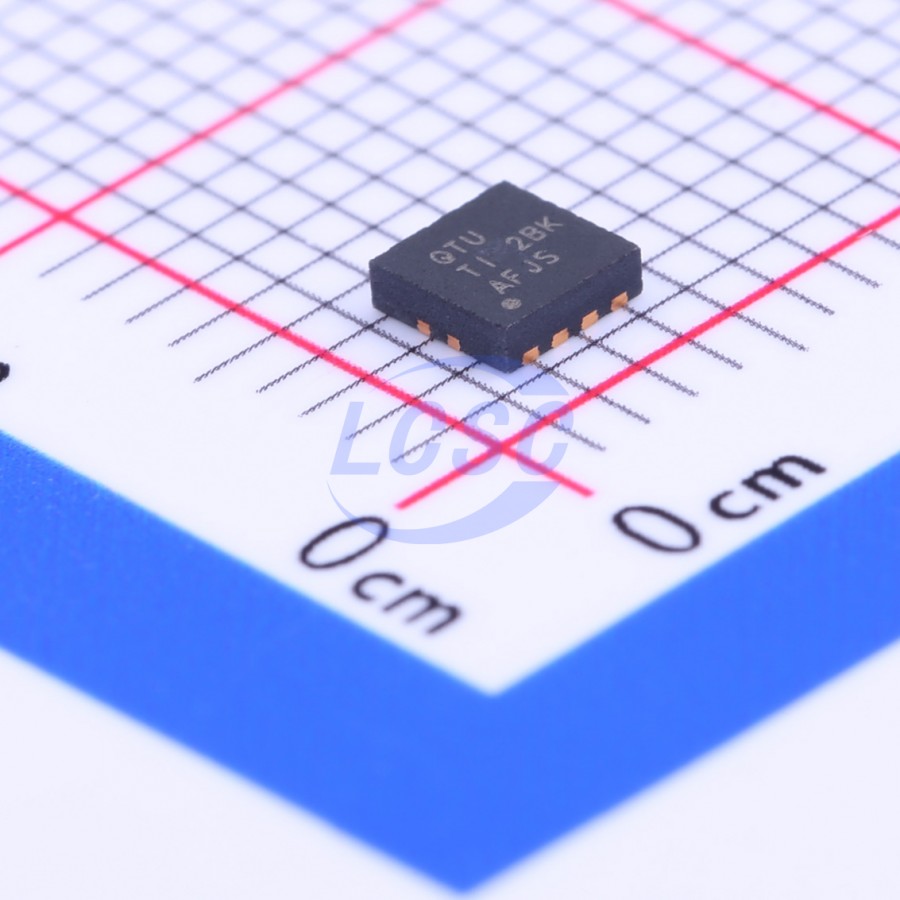

TPS73534DRBR

The TPS735 family of low-dropout (LDO), low-power linear regulators offers excellent ac performance with very low ground current. High power-supply rejection ratio (PSRR), low noise, fast start-up, and excellent line and load transient responses are provided while consuming a very low 46 μA (typical) ground current. The TPS735 family of devices is stable with ceramic capacitors and uses an advanced BiCMOS fabrication process to yield a typical dropout voltage of 280 mV at 500-mA output. The TPS735 family of devices uses a precision voltage reference and feedback loop to achieve overall accuracy of 2% (V_OUT > 2.2 V) over all load, line, process, and temperature variations. This family of devices is fully specified from T_A = -40°C to 125°C and is offered in a low-profile, 3–mm × 3–mm SON-8 package and a 2-mm x 2-mm SON-6 package.

Applications

• Printers
• WiFi, WiMax Modules
• Cellular Phones, Smart Phones
• Microprocessor Power

Key features

• Input Voltage: 2.7 V to 6.5 V
• 500-mA Low-Dropout Regulator With EN
• Low IQ: 46 μA
• Multiple Output Voltage Versions Available: Fixed Outputs of 1.2 V to 4.3 V Adjustable Outputs from 1.25 V to 6 V
• High PSRR: 68 dB at 1 kHz
• Ultra-low Noise: 13.2 μV RMS
• Fast Start-Up Time: 45 μs
• Stable with a Standard, 2.2-μF, Low-ESR Output Capacitor
• Excellent Load and Line Transient Response
• 2% Overall Accuracy (Load, Line, and Temperature, V_OUT > 2.2 V_I)
• Very Low Dropout: 280 mV at 500 mA
• 2-mm × 2-mm SON-6 and 3-mm × 3-mm SON-8 Packages
