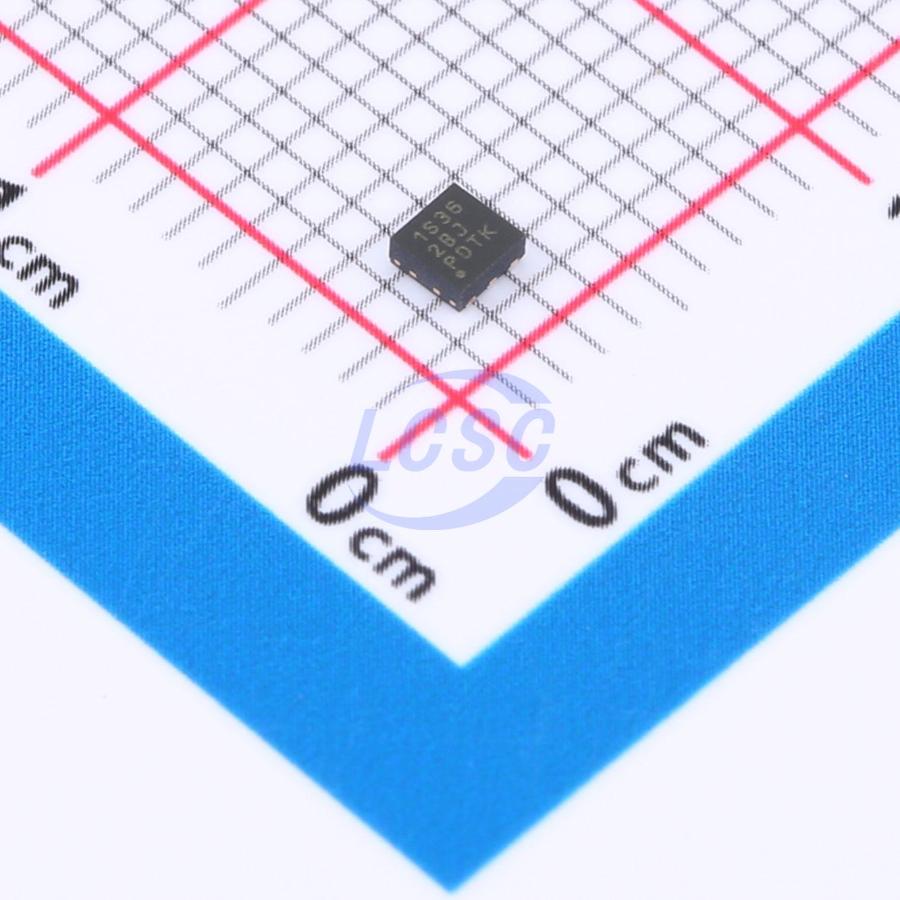

TPS74501PBQWDRVRQ1

Linear Voltage Regulator IC Positive Fixed 1 Output 500mA WSON-6-EP(2x2)

WSON-6-EP(2x2)ROHS CompliantActive

Automotive 500mA, low-IQ, high-PSRR, low-dropout (LDO) voltage regulator with power good

Manufacturer: TI
Manufacturer part #: TPS74501PBQWDRVRQ1
Store part #: C2860624
Package / case: WSON-6-EP(2x2)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,397 in stock

#C2860624

Stock & price checked 19 days ago

Quantity	Unit price	Pack price
1+	₹211.55	₹211.55
10+	₹183.94	₹1,839.40
30+	₹168.72	₹5,061.60
100+	₹151.54	₹15,154.00
500+	₹143.93	₹71,965.00
1,000+	₹140.45	₹1,40,450.00

Quantity (min 1)

1 × ₹211.55

₹211.55

excl. GST

₹249.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS74501PBQWDRVRQ1

₹211.55 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 550mV~5.5V
Number of Outputs: 1
Operating Temperature: -40℃~+150℃@(Tj)
Supply Current (Iq): 25uA
Output Configuration: Positive
Output Current: 500mA
Operating Voltage: 6V
Features: Enable control;Operating status indication;Input under-voltage protection;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.06 g

Overview

TPS745-Q1 is a 500mA ultra-low dropout regulator (LDO) with a power-good indicator. The device is available in a small 6-pin 2mm×2mm WSON package and a small 8-pin 3mm×3mm VSON package, both with wettable flanks for optical inspection. The TPS745-Q1 features low quiescent current consumption and provides fast line and load transient performance. The TPS745-Q1 supports an input voltage range of 1.5V to 6.0V and an externally adjustable output voltage range of 0.55V to 5.5V, making it a flexible post-regulator. Fixed output voltage options are also available to power common voltage rails. The TPS745-Q1 includes a power-good (PG) output that monitors the feedback pin voltage to indicate output voltage status. The EN input and PG output can be used to sequence multiple power supplies in a system. The TPS745-Q1 remains stable when used with small ceramic output capacitors, supporting a compact overall solution. The precision bandgap and error amplifier provide high accuracy — ±0.85% (maximum) at 25°C and ±1.5% (maximum) over the full operating temperature range. The device integrates thermal shutdown, current limiting, and UVLO protection. The TPS745-Q1 features internal foldback current limiting to help reduce power dissipation during short-circuit events.

Applications

Automotive head unit
Front and rear cameras
Automotive instrument cluster display
Telematics control unit
Mid-range and short-range radar

Key features

AEC-Q100 qualified for automotive applications: Temperature Grade 1: -40°C to +125°C, TA device junction temperature: -40°C to 150°C
Package: 2mm×2mm wettable flank WSON, 3mm×3mm wettable flank VSON
Input voltage range: 1.5V to 6.0V
Output voltage range: Fixed: 0.65V to 5.0V, Adjustable: 0.55V to 5.5V
High PSRR: 45dB at 100kHz
Output accuracy: ±0.85% (25°C), ±1.5% (maximum)
Power-good output options: open-drain and push-pull
Ultra-low dropout: 160mV (maximum) at 500mA (3.3V₀₊ₜ)
Stable with 1µF or larger capacitor
Low I₀: 25µA (typical), 1.5µA (shutdown)
Active output discharge
Functional Safety-capable
Documentation available for functional safety system design
Low thermal resistance: DRV (6-pin WSON), R₀JA = 80.3°C/W; DRB (8-pin VSON), R₀JA = 55.5°C/W
