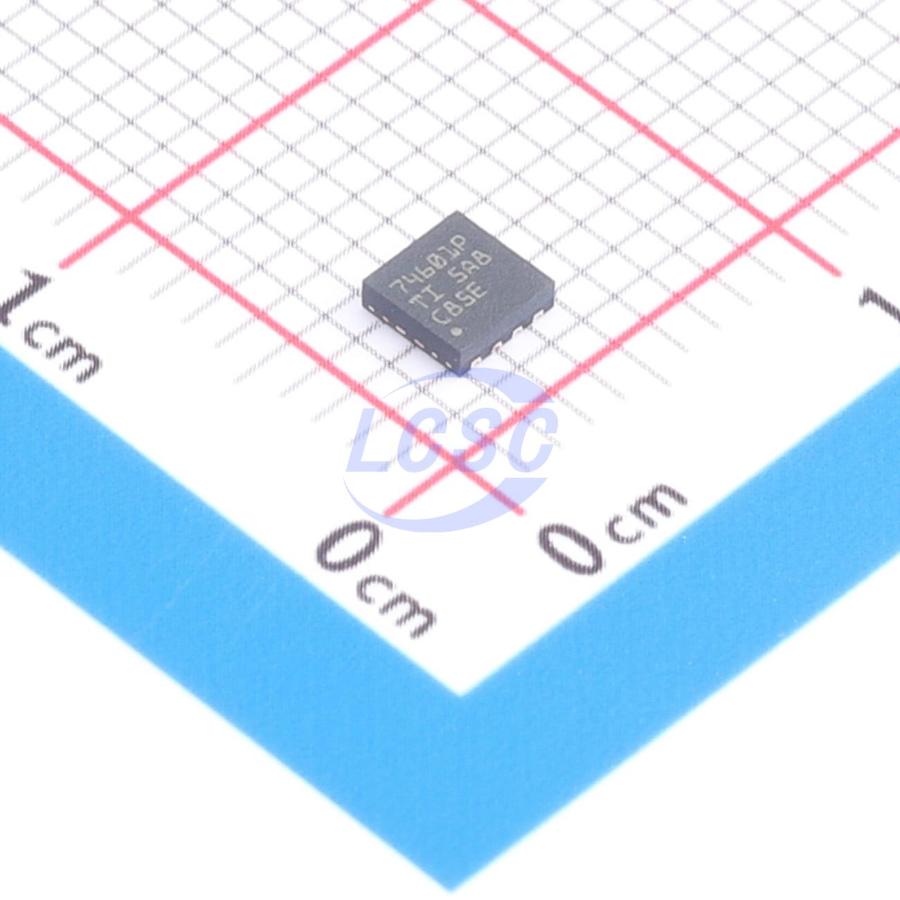

TPS74601PQWDRBRQ1

Linear Voltage Regulator IC Positive Adjustable 1 Output 1A SON-8(3x3)

SON-8(3x3)ROHS CompliantActive

Automotive-grade, 1A, low IQ, high PSRR, low dropout (LDO) regulator with power good indication

Manufacturer: TI
Manufacturer part #: TPS74601PQWDRBRQ1
Store part #: C2868253
Package / case: SON-8(3x3)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12,485 in stock

#C2868253

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹123.71	₹123.71
10+	₹101.58	₹1,015.80
30+	₹90.51	₹2,715.30
100+	₹79.43	₹7,943.00
500+	₹72.92	₹36,460.00
1,000+	₹69.46	₹69,460.00

Quantity (min 1)

1 × ₹123.71

₹123.71

excl. GST

₹145.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS74601PQWDRBRQ1

₹123.71 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 550mV~5.5V
Number of Outputs: 1
Operating Temperature: -40℃~+150℃@(Tj)
Supply Current (Iq): 25uA
Output Configuration: Positive
Operating Voltage: 6V
Output Current: 1A
Features: Enable control;Operating status indication;Input under-voltage protection;Short Circuit Protection;Over Current Protection;Thermal shutdown;Output discharge
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.113 g

Overview

The TPS746-Q1 is a 1A ultra-low dropout regulator (LDO) with a power-good indicator. It comes in a small 6-pin 2mm×2mm WSON package with wettable flanks and a small 8-pin 3mm×3mm VSON package, facilitating optical inspection. It features low quiescent current consumption and offers fast line and load transient performance. It supports an input voltage range of 1.5V to 6.0V and an externally adjustable output voltage range of 0.55V to 5.5V, making it a flexible post-regulator device. It also provides fixed output voltages to power common voltage rails. It has a power-good (PG) output that monitors the feedback pin voltage to indicate the output voltage status. The EN input and PG output can be used to sequence multiple power supplies in a system. It remains stable when used with small ceramic output capacitors that support a small overall solution size. The precision bandgap and error amplifier have high-precision characteristics, providing an accuracy of ±0.85% (maximum) at 25°C and ±1.5% (maximum) over the entire operating temperature range. It includes integrated thermal shutdown, current limit, and under-voltage lockout (UVLO) functions. It has an internal foldback current limit, which helps reduce heat dissipation during short-circuit events.

Applications

Automotive head units
Front and rear cameras
Automotive instrument cluster displays
Telematics control units
Medium-range and short-range radar

Key features

AEC-Q100 qualified for automotive applications: Temperature Grade 1: -40°C to +125°C, TA device operating junction temperature range: -40°C to +150°C
Package: 2mm×2mm wettable flank WSON; 3mm×3mm wettable flank VSON
Input voltage range: 1.5V to 6.0V
Output voltage range: Fixed voltage: 0.65V to 5.0V; Adjustable voltage: 0.55V to 5.5V
High PSRR: 38dB at 100kHz
Output accuracy: ±0.85% typical, ±1.5% maximum
Power-good output options: open-drain or push-pull
Ultra-low dropout: 265mV (maximum) at 1A (3.3V_OUT)
Stable with 1µF or larger output capacitor
Low I_Q: 25µA (typical)
Active output discharge
Functional Safety compliant
Documentation available for Functional Safety system design
Low thermal resistance: DRV (6-pin WSON), R_θJA = 80.3°C/W; DRB (8-pin VSON), R_θJA = 55.5°C/W
