TIDatasheet (PDF)

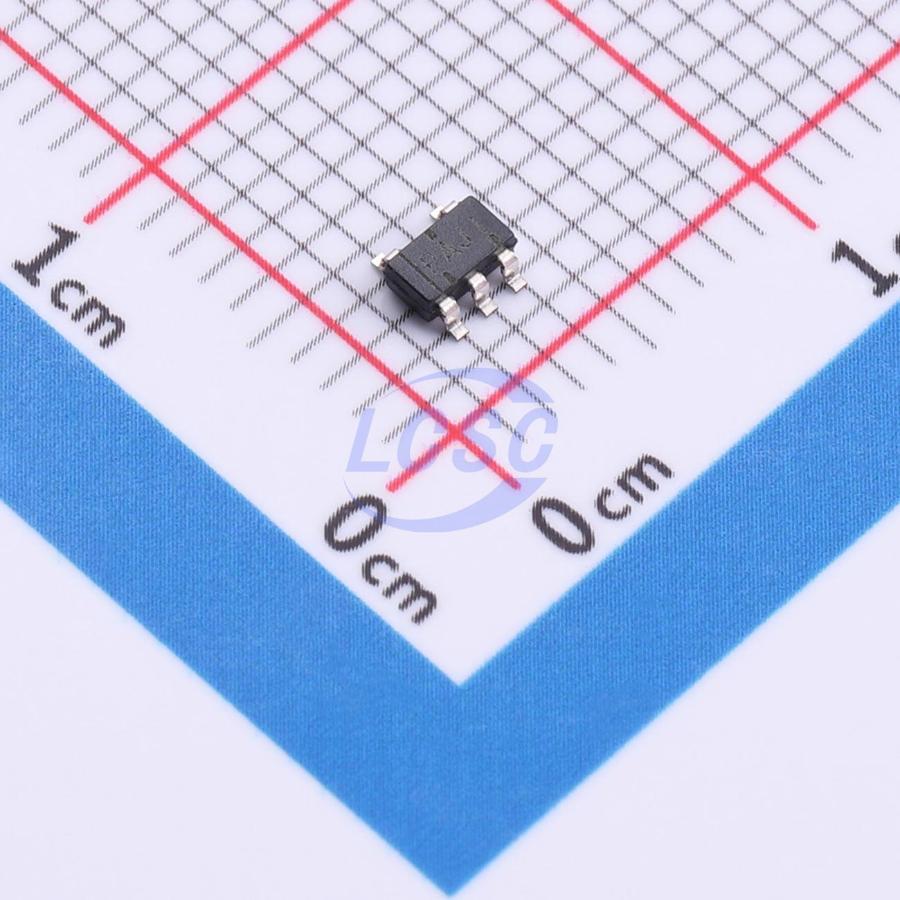

TPS76038DBVR
3.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
50mA, 16V, low-dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- TPS76038DBVR
- Store part #
- C2868765
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C2868765
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹238.02 | ₹238.02 |
| 10+ | ₹231.75 | ₹2,317.50 |
| 30+ | ₹227.65 | ₹6,829.50 |
| 100+ | ₹223.53 | ₹22,353.00 |
1 × ₹238.02
₹238.02
excl. GST
₹280.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS76038DBVR
₹238.02 for 1 + GST
Specifications
- Output Voltage
- 3.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 130uA
- Output Configuration
- Positive
- Operating Voltage
- 16V
- Output Current
- 50mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
The TPS760xx is a 50 mA, low dropout (LDO) voltage regulator designed specifically for battery-powered applications. A proprietary BiCMOS fabrication process allows the TPS760xx to provide outstanding performance in all specifications critical to battery-powered operation. The TPS760xx is available in a space-saving SOT–23 package and operates over a junction temperature range of -40°C to 125°C.
Key features
- Thermal Protection
- Less than 1 μA Quiescent Current in Shutdown
- -40°C to 125°C Operating Junction Temperature Range
- 5-Pin SOT-23 Package
- ESD Protection Verified to 1.5 KV Human Body Model (HBM) per MIL-STD-883C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS76138DBVR#C2859929TI · SOT-23-5 | TI | SOT-23-5 | 20 | ₹274.38 · 20 in stock | View |
 | TPS70938DBVR#C2877738TI · SOT-23-5 | TI | SOT-23-5 | 2 | ₹164.48 · 2 in stock | View |
 | MIC5205-3.8YM5-TR#C625818MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 263 | ₹62.46 · 263 in stock | View |
 | LP2985IM5-3.8/NOPB#C2864022TI · SOT-23-5 | TI | SOT-23-5 | 282 | ₹93.05 · 282 in stock | View |
 | LP2985AIM5-3.8/NOPB#C2864153TI · SOT-23-5 | TI | SOT-23-5 | 19 | ₹151.30 · 19 in stock | View |
