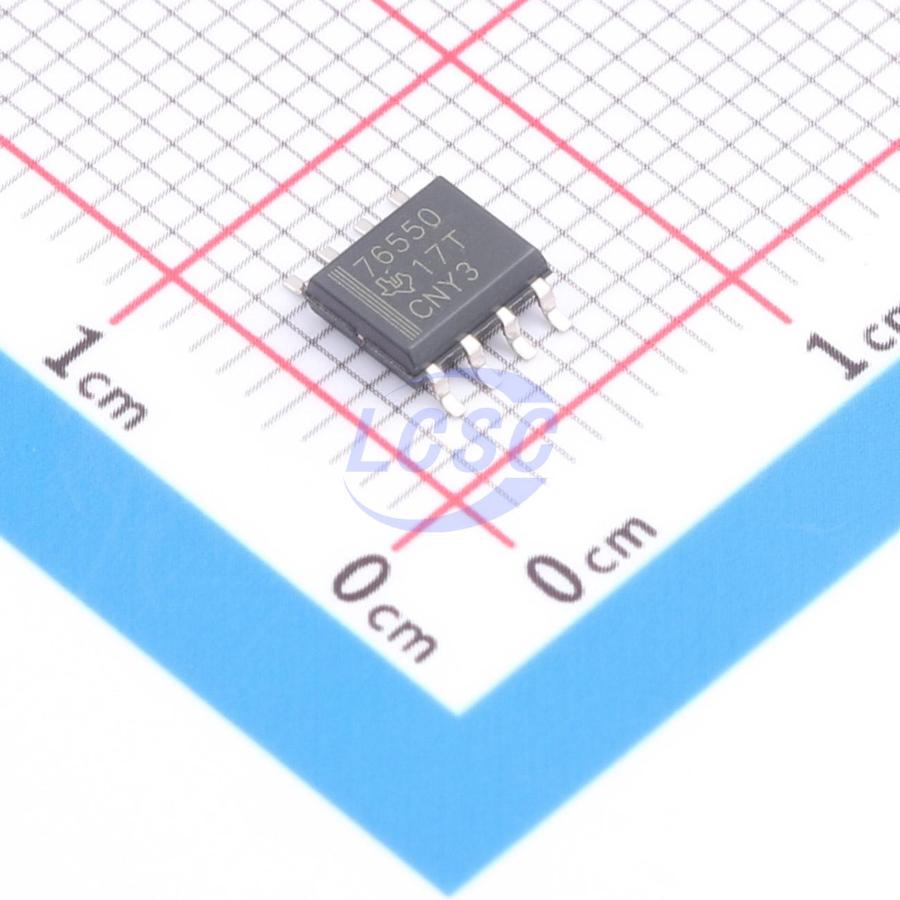

TPS76550DR

This device is designed to have an ultra-low quiescent current and be stable with a 4.7 μF capacitor. This combination provides high performance at a reasonable cost. Because the PMOS device behaves as a low-value resistor, the dropout voltage is very low (typically 85 mV at an output current of 150 mA for the TPS76550) and is directly proportional to the output current. Additionally, since the PMOS pass element is a voltage-driven device, the quiescent current is very low and independent of output loading (typically 35 μA over the full range of output current, 0 mA to 150 mA). These two key specifications yield a significant improvement in operating life for battery-powered systems. This LDO family also features a sleep mode; applying a TTL high signal to EN (enable) shuts down the regulator, reducing the quiescent current to less than 1 μA (typ). Power good (PG) is an active high output, which can be used to implement a power-on reset or a low-battery indicator. The TPS 765xx is offered in 1.5-V, 1.8-V, 2.5-V, 2.7-V, 2.8-V, 3.0-V, 3.3-V and 5.0-V fixed-voltage versions and in an adjustable version (programmable over the range of 1.25 V to 5.5 V). Output voltage tolerance is specified as a maximum of 3% over line, load, and temperature ranges. The TPS765xx family is available in 8 pin SOIC package.

Key features

• Dropout Voltage to 85 mV (Typ) at 150 mA (TPS76550)
• Ultra-Low 35-μA Typical Quiescent Current
• 3% Tolerance Over Specified Conditions for Fixed-Output Versions
• Open Drain Power Good
• 8-Pin SOIC Package Thermal Shutdown Protection
