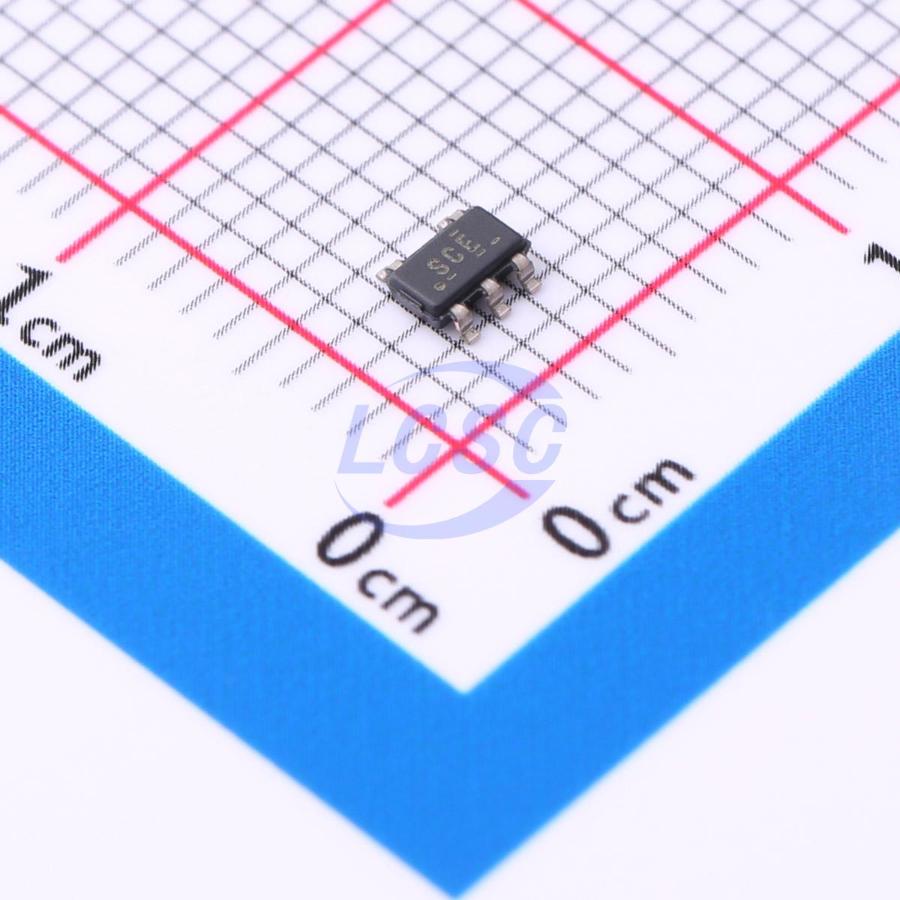

TPS78236DDCR

The TPS782 family of low-dropout regulators (LDOs) offers the benefits of ultra-low power and miniaturized packaging. This LDO is designed specifically for battery-powered applications where ultra-low quiescent current is a critical parameter. The TPS782, with ultra-low I_Q (500 nA), is ideal for microprocessors, microcontrollers, and other battery-powered applications. The ultra-low power and miniaturized packaging allow designers to customize power consumption for specific applications. The TPS782 family is designed to be compatible with the TI MSP430 and other similar products. The enable pin (EN) is compatible with standard CMOS logic. This device allows for minimal board space because of miniaturized packaging and a potentially small output capacitor. The TPS782 series also features thermal shutdown and current limit to protect the device during fault conditions. All packages have an operating temperature range of T_Δ = -40°C to 125°C.

Applications

• TI MSP430 Attach Applications
• Wireless Handsets and Smart Phones
• MP3 Players
• Battery-Operated Handheld Products

Key features

• Low IQ: 500 nA
• 150-mA, Low-Dropout Regulator Input Voltage Range: 2.2 V to 5.5 V
• Low-Dropout at 25°C, 130 mV at 150 mA
• Low-Dropout at 85°C, 175 mV at 150 mA
• 3% Accuracy Over Load, Line, and Temperature
• Stable with a 1.0-μF Ceramic Capacitor
• Thermal Shutdown and Overcurrent Protection
• CMOS Logic Level-Compatible Enable Pin
• Available in DDC (TSOT23-5) or DRV (2-mm×2-mm SON-6) Packages
