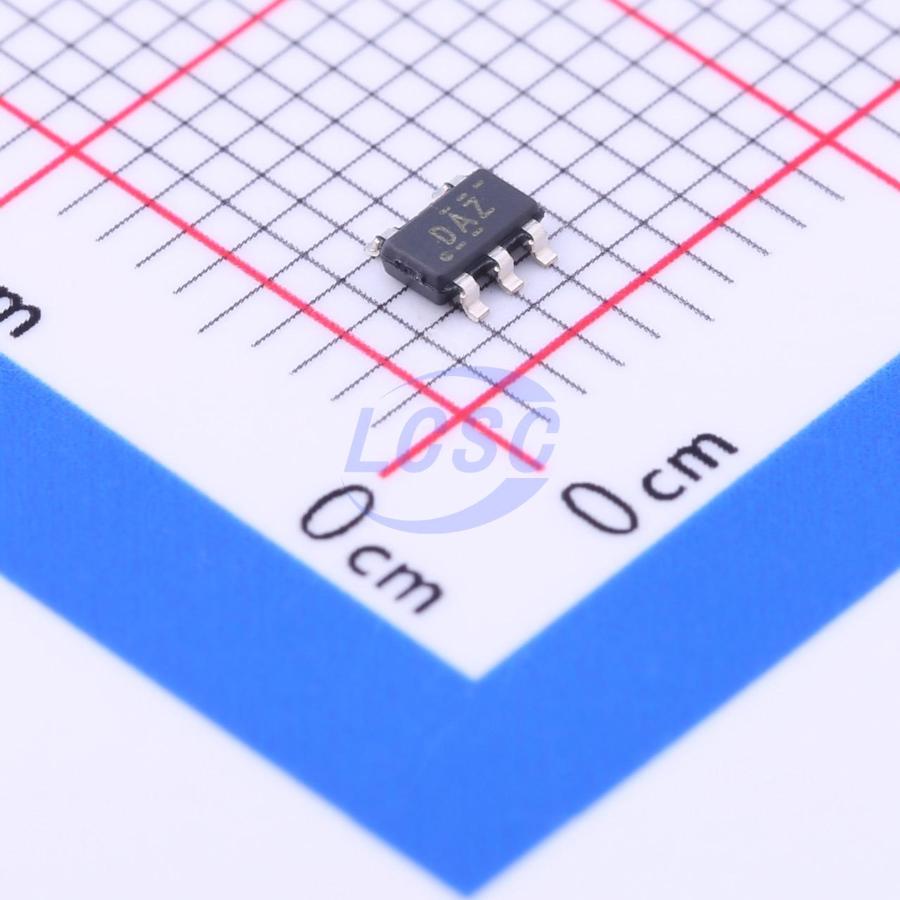

TPS78330DDCR

The TPS783 family of low-dropout regulators (LDOs) offers the benefits of ultralow power and miniaturized packaging. This LDO family is designed specifically for batterypowered applications where ultralow quiescent current is a critical parameter. The TPS783, with ultralow IQ (500 nA), is ideal for microprocessors, microcontrollers, and other battery-powered applications. The absence of pulldown circuitry at the output of the LDO provides the flexibility to use the regulator output capacitor as a temporary backup power supply (for example, during battery replacement). The ultralow power and miniaturized packaging allow designers to customize power consumption for specific applications. The TPS783 family is compatible with the TI MSP430 and other similar products. The enable pin (EN) is compatible with standard CMOS logic. This device allows for minimal board space because of miniaturized packaging and a potentially small output capacitor. The TPS783 family also features thermal shutdown and current limit to protect the device during fault conditions. All packages have a specified operating temperature range of TJ = -40℃ to 105℃.

Applications

• TI MSP430 Attach Applications
• Wireless Handsets and Smartphones
• MP3 Players
• Battery-Operated Handheld Products

Key features

• Input Voltage Range: 2.2 V to 5.5 V
• Low Quiescent Current (IQ): 500 nA
• 150 mA, Low-Dropout Regulator
• Low-Dropout at 25℃, 130 mV at 150 mA
• Low-Dropout at 85℃, 175 mV at 150 mA
• 3% Accuracy Over Load, Line, and Temperature
• Stable with a 1.0 μF Ceramic Capacitor
• Thermal Shutdown and Overcurrent Protection
• CMOS Logic Level-Compatible Enable Pin
• DDC (SOT-5) Package
