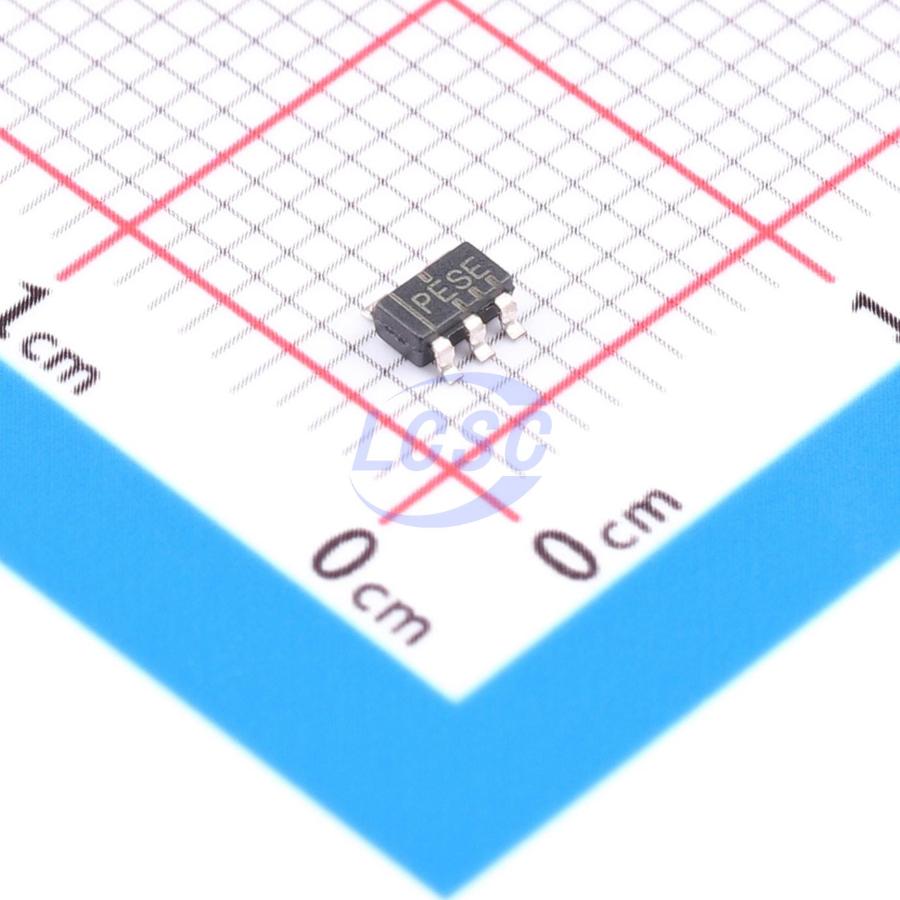

TPS79133DBVREP

The TPS791xx family of low-dropout (LDO) low-power linear voltage regulators features high power supply rejection ratio (PSRR), ultralow noise, fast start-up, and excellent line and load transient responses in a small outline, SOT23, package. Each device in the family is stable, with a small ceramic capacitor on the output. The family uses an advanced, proprietary BiCMOS fabrication process to yield extremely low dropout voltages (e.g., 38 mV at 100 mA, TPS79147). Each device achieves fast start-up times (approximately 63 μs with a 0.001 μF bypass capacitor) while consuming very low quiescent current (170 μA typical). Moreover, when the device is placed in standby mode, the supply current is reduced to less than 1 μA. The TPS79118 exhibits approximately 15 μVRMS of output voltage noise with a 0.1 - μF bypass capacitor. Applications with analog components that are noise sensitive, such as portable RF electronics, benefit from the high-PSRR and low-noise features as well as the fast response time.

Applications

• VCOs
• RF Bluetooth, Wireless LAN

Key features

• 100-mA Low-Dropout Regulator With EN Available in 1.8-V, 3.3-V, 4.7-V, and Adjustable Versions
• High PSRR (70 dB at 10 kHz)
• Ultralow Noise (15 μVRMS)
• Fast Start-Up Time (63 μs)
• Stable With Any μF Ceramic Capacitor
• Excellent Load/Line Transient
• Very Low Dropout Voltage 38 mV at Full Load, TPS79147
• 5-Pin SOT23 (DBV) Package
• TPS792xx Provides EN Options
