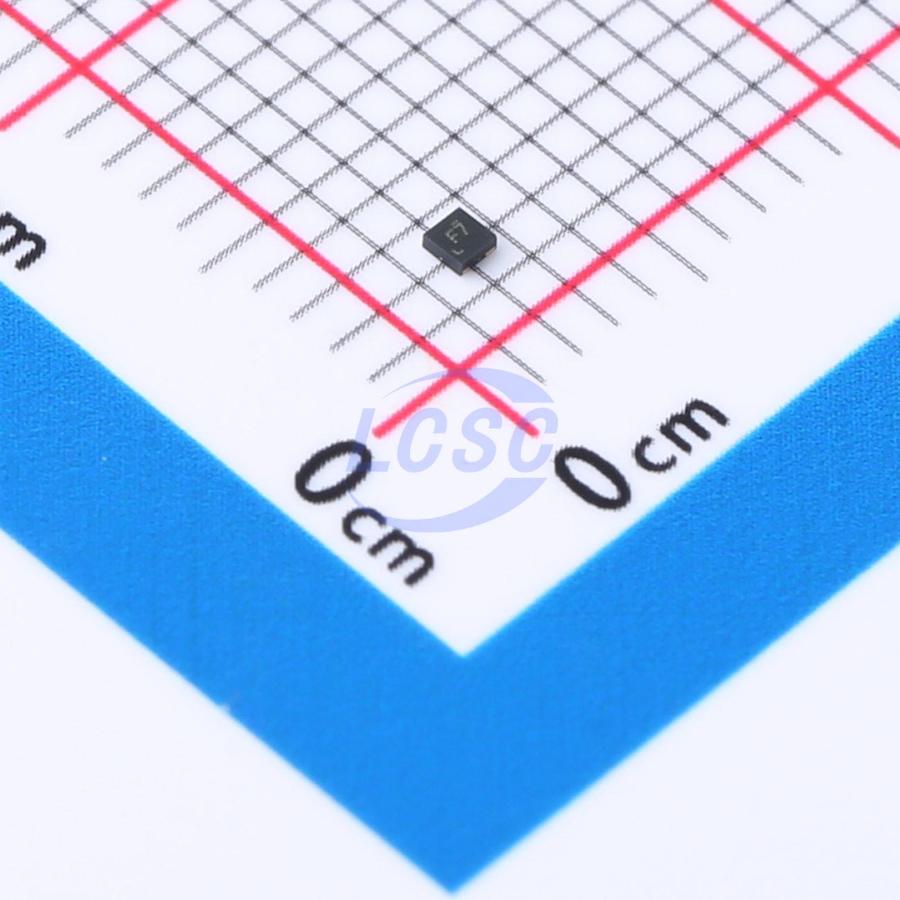

TPS7A0225PDQNR
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA X2-SON-4-EP(1x1)
X2-SON-4-EP(1x1)ROHS3 CompliantActive
200mA, nanopower-IQ (25nA), low dropout (LDO) regulator with enable functionality
- Manufacturer
- TI
- Manufacturer part #
- TPS7A0225PDQNR
- Store part #
- C2865570
- Package / case
- X2-SON-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C2865570
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹143.31 | ₹143.31 |
| 10+ | ₹126.76 | ₹1,267.60 |
| 30+ | ₹111.07 | ₹3,332.10 |
| 100+ | ₹99.32 | ₹9,932.00 |
| 500+ | ₹94.52 | ₹47,260.00 |
| 1,000+ | ₹92.12 | ₹92,120.00 |
1 × ₹143.31
₹143.31
excl. GST
₹169.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS7A0225PDQNR
₹143.31 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 25nA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Input under-voltage protection;Thermal shutdown;Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
The TPS7A02 is an ultra-small, ultra-low quiescent current LDO linear regulator capable of supplying 200mA with excellent transient performance. The TPS7A02 features an ultra-low IQ (25nA), designed for applications where ultra-low quiescent current is a critical parameter. The device maintains low IQ consumption even in dropout mode, further extending battery life. In shutdown or disabled mode, the device draws an ultra-low IQ of 3nA, helping to extend battery shelf life. The TPS7A02 output voltage range is 0.8V to 5.0V in 50mV steps to support lower modern MCU core voltages.
Applications
- Wearable electronics
- Thermostats, smoke and heat detectors
- Gas, heat and water meters
- Blood glucose monitors and pulse oximeters
- Residential circuit breakers and fault indicators
- Building security and video surveillance devices
- EPOS card readers
Key features
- Ultra-low IQ: 25nA (typical), shutdown IQ: 3nA (typical) even in dropout
- Excellent transient response (1mA to 50mA): settling time < 10μs, 100mV undershoot
- Input voltage range: 1.5V to 6.0V
- Output voltage range: 0.8V to 5.0V (fixed)
- Output accuracy: 1.5% over operating temperature range
- Smart enable pin pull-down
- Ultra-low dropout: 270mV (max) at 200mA (VOUT = 3.3V)
- Stable with 1μF or larger capacitors
- Package: 1.0mm×1.0mm×2SON, SOT-23-5, 0.64mm×0.64mm DSBGA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS7A0325PDQNR#C2860859TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 493 | ₹51.09 · 493 in stock | View |
| TPS7A0325DQNR#C2871599TI · X2-SON-4-EP(1x1) | TI | X2-SON-4-EP(1x1) | 95 | ₹53.13 · 95 in stock | View | |
 | TPS7A0325DQNR3#C3752459TI · X2-SON-4(1x1) | TI | X2-SON-4(1x1) | 2,621 | ₹50.39 · 2,621 in stock | View |
 | TPL710F25-FR#C395755083PEAK · DFN-4(1x1) | 3PEAK | DFN-4(1x1) | 90 | ₹25.08 · 90 in stock | View |
 | MD5125#C919700Mingda Microelectronics · XDFN-4-EP(1x1) | Mingda Microelectronics | XDFN-4-EP(1x1) | 3,475 | ₹9.47 · 3,475 in stock | View |
