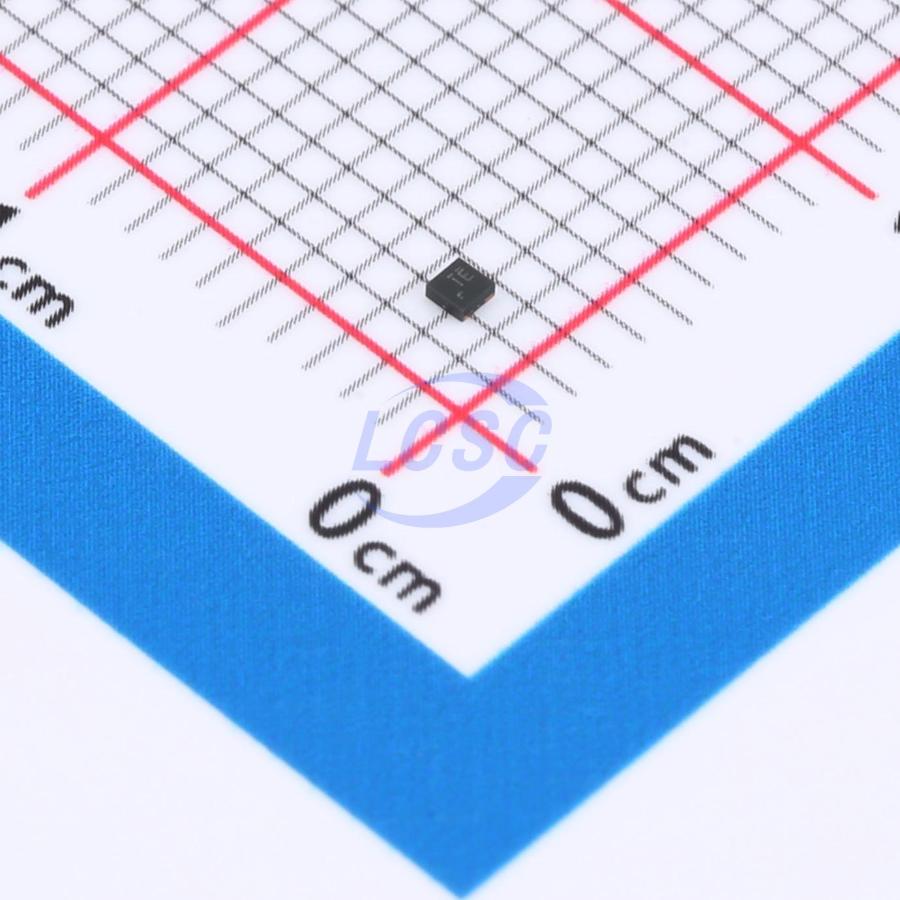

TPS7A0228DQNR
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA X2SON(DQN)-4
X2SON(DQN)-4ROHS CompliantActive
IC REG LINEAR 2.8V 200mA X2SON(DQN)-4
- Manufacturer
- TI
- Manufacturer part #
- TPS7A0228DQNR
- Store part #
- C5220175
- Package / case
- X2SON(DQN)-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,275 in stock
#C5220175
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.41 | ₹72.41 |
| 10+ | ₹61.32 | ₹613.20 |
| 30+ | ₹53.49 | ₹1,604.70 |
| 100+ | ₹46.97 | ₹4,697.00 |
| 500+ | ₹44.80 | ₹22,400.00 |
| 1,000+ | ₹43.71 | ₹43,710.00 |
1 × ₹72.41
₹72.41
excl. GST
₹85.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS7A0228DQNR
₹72.41 for 1 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 25nA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Enable control;Input under-voltage protection;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
The TPS7A02 is an ultra-small, ultra-low quiescent current LDO linear regulator capable of supplying 200mA with excellent transient performance. The TPS7A02 features an ultra-low IQ (25nA), designed for applications where ultra-low quiescent current is a critical parameter. The device maintains low IQ consumption even in dropout mode, further extending battery life. In shutdown or disabled mode, the device draws an ultra-low IQ of 3nA, helping to extend battery shelf life. The TPS7A02 output voltage range is 0.8V to 5.0V in 50mV steps to support lower modern MCU core voltages.
Applications
- Wearable electronics
- Thermostats, smoke and heat detectors
- Gas, heat and water meters
- Blood glucose monitors and pulse oximeters
- Residential circuit breakers and fault indicators
- Building security and video surveillance devices
- EPOS card readers
Key features
- Ultra-low IQ: 25nA (typical), shutdown IQ: 3nA (typical) even in dropout
- Excellent transient response (1mA to 50mA): settling time < 10μs, 100mV undershoot
- Input voltage range: 1.5V to 6.0V
- Output voltage range: 0.8V to 5.0V (fixed)
- Output accuracy: 1.5% over operating temperature range
- Smart enable pin pull-down
- Ultra-low dropout: 270mV (max) at 200mA (VOUT = 3.3V)
- Stable with 1μF or larger capacitors
- Package: 1.0mm×1.0mm×2SON, SOT-23-5, 0.64mm×0.64mm DSBGA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BU28TA2WNVX-TR#C510080ROHM · UDFN-4-EP | ROHM | UDFN-4-EP | On request | ₹29.65 · 0 in stock | View | |
