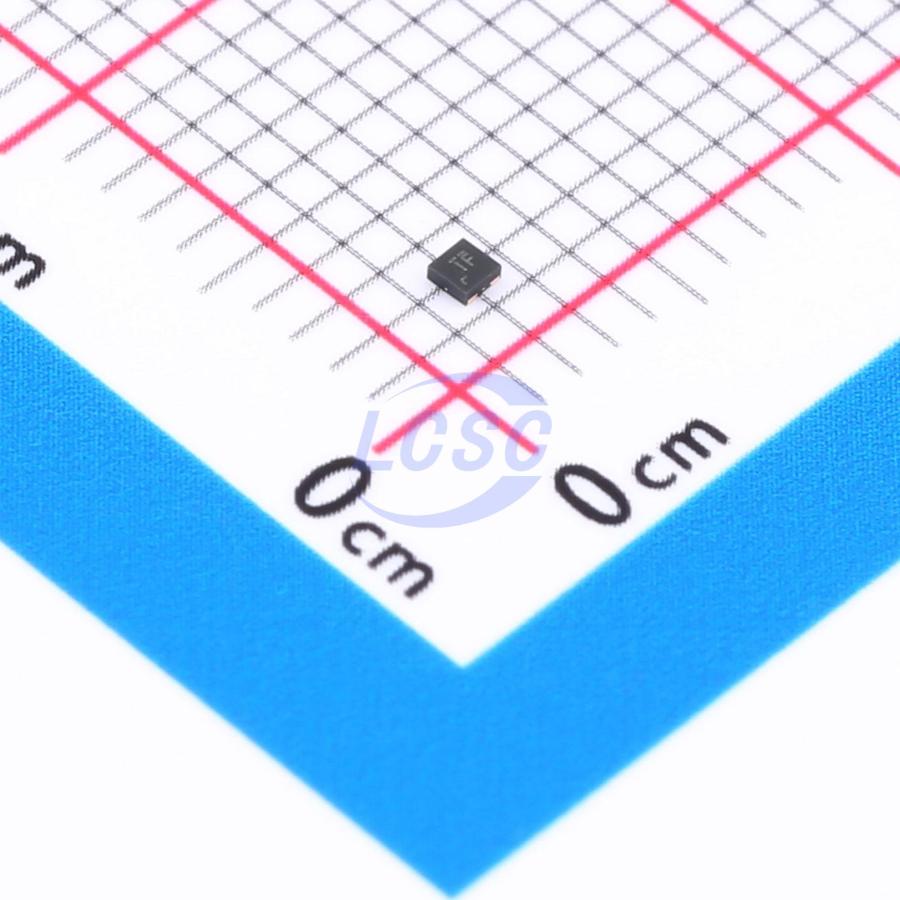

TPS7A0233DQNR

Linear Voltage Regulator IC Positive Fixed 1 Output 200mA X2SON-4-EP(1x1)

X2SON-4-EP(1x1)ROHS3 CompliantActive

200mA, nanopower-IQ (25nA), low dropout (LDO) regulator with enable functionality

Manufacturer: TI
Manufacturer part #: TPS7A0233DQNR
Store part #: C5220177
Package / case: X2SON-4-EP(1x1)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

320 in stock

#C5220177

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹78.27	₹78.27
10+	₹66.32	₹663.20
30+	₹57.62	₹1,728.60
100+	₹50.66	₹5,066.00
500+	₹48.49	₹24,245.00
1,000+	₹47.18	₹47,180.00

Quantity (min 1)

1 × ₹78.27

₹78.27

excl. GST

₹92.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS7A0233DQNR

₹78.27 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 25nA
Output Configuration: Positive
Output Current: 200mA
Operating Voltage: 6V
Output Type: Fixed
Features: Enable control;Input under-voltage protection;Thermal shutdown;Output discharge;Over Current Protection;Short Circuit Protection

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.011 g

Overview

The TPS7A02 is an ultra-small, ultra-low quiescent current LDO linear regulator capable of supplying 200mA with excellent transient performance. The TPS7A02 features an ultra-low IQ (25nA), designed for applications where ultra-low quiescent current is a critical parameter. The device maintains low IQ consumption even in dropout mode, further extending battery life. In shutdown or disabled mode, the device draws an ultra-low IQ of 3nA, helping to extend battery shelf life. The TPS7A02 output voltage range is 0.8V to 5.0V in 50mV steps to support lower modern MCU core voltages.

Applications

Wearable electronics
Thermostats, smoke and heat detectors
Gas, heat and water meters
Blood glucose monitors and pulse oximeters
Residential circuit breakers and fault indicators
Building security and video surveillance devices
EPOS card readers

Key features

Ultra-low IQ: 25nA (typical), shutdown IQ: 3nA (typical) even in dropout
Excellent transient response (1mA to 50mA): settling time < 10μs, 100mV undershoot
Input voltage range: 1.5V to 6.0V
Output voltage range: 0.8V to 5.0V (fixed)
Output accuracy: 1.5% over operating temperature range
Smart enable pin pull-down
Ultra-low dropout: 270mV (max) at 200mA (VOUT = 3.3V)
Stable with 1μF or larger capacitors
Package: 1.0mm×1.0mm×2SON, SOT-23-5, 0.64mm×0.64mm DSBGA

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TPS7A0233PDQNR#C2860046TI · X2-SON-4-EP(1x1)	TI	X2-SON-4-EP(1x1)	3,656	₹81.31 · 3,656 in stock	View
TPS7A0333PDQNR3#C2862643TI · X2-SON-4-EP(1x1)	TI	X2-SON-4-EP(1x1)	6,438	₹56.00 · 6,438 in stock	View
TPS7A0333PDQNR#C2871548TI · X2-SON-4-EP(1x1)	TI	X2-SON-4-EP(1x1)	4	₹96.29 · 4 in stock	View
TPS7A0333DQNR#C2873329TI · X2-SON-4-EP(1x1)	TI	X2-SON-4-EP(1x1)	1,306	₹48.79 · 1,306 in stock	View
TPL710F33-FR#C224095543PEAK · DFN-4(1x1)	3PEAK	DFN-4(1x1)	On request	₹25.08 · 0 in stock	View
