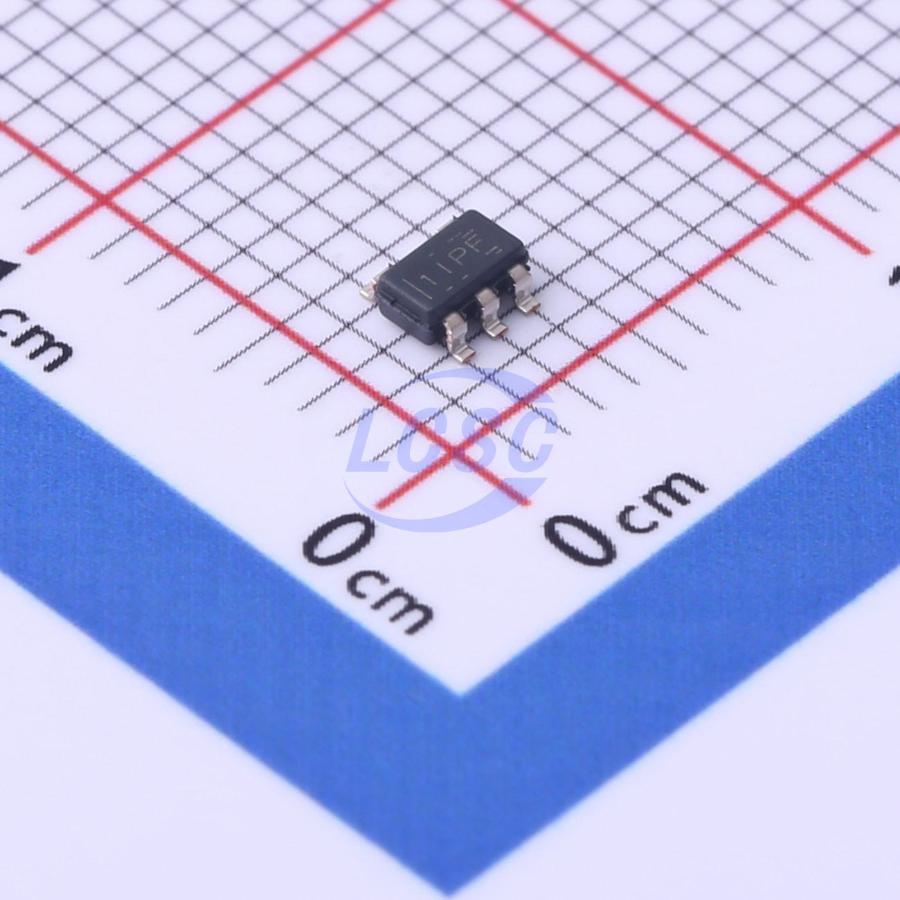

TPS7A0533PDBVR

3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS3 CompliantActive

200mA, ultra-low IQ, high-precision, low-dropout regulator with enable function

Manufacturer: TI
Manufacturer part #: TPS7A0533PDBVR
Store part #: C493453
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,540 in stock

#C493453

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹46.93	₹234.65
50+	₹37.86	₹1,893.00
150+	₹33.99	₹5,098.50
500+	₹27.44	₹13,720.00
3,000+	₹25.28	₹75,840.00
6,000+	₹23.99	₹1,43,940.00

Quantity (min 5, multiples of 5)

5 × ₹46.93

₹234.65

excl. GST

₹276.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS7A0533PDBVR

₹234.65 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 1uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 200mA
Features: Enable control;Output discharge;Input under-voltage protection;Short Circuit Protection;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.045 g

Overview

The TPS7A05 is an ultra-small, low quiescent current low-dropout regulator (LDO) that can source 200 mA with excellent transient performance. This device has an output range of 0.8 V to 3.3 V with a typical 1% accuracy. The TPS7A05, with ultralow I_Q (1 μA), consumes very-low quiescent current for extending battery life in battery-powered applications. The device can be operated from rechargeable Li-Ion batteries, Li primary battery chemistries such as Li-SOCl2, LiMnO2, as well as two- or three-cell alkaline batteries. The TPS7A05 is available with an active pulldown circuit to quickly discharge the output when disabled. The TPS7A05 is fully specified for T_J = -40°C to +125°C operation, and is available in standard X2SON (DQN), SOT-23 (DBV and DBZ), and DSBGA (YKA) packages.

Applications

Wearable electronics
Ultrabooks, tablets, E-readers
Always-on power supplies
Set-top boxes
Gaming controllers, remote controls, toys, drones
Wireless handsets and smart phones
Portable and battery-powered equipment

Key features

Ultralow I_Q: 1 μA (typ), 3 μA (max) – IGND: 6 μA (typ) at 200 mA
Excellent transient response
Input voltage range: 1.4 V to 5.5 V
Output accuracy: 1% typical, 3% maximum
Available in fixed-output voltage: 0.8 V to 3.3 V
Very low dropout: 235 mV (max) at 200 mA (3.3 V_OUT)
Active output discharge
Foldback current limit
Stable with a 0.47-μF or larger capacitor

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
H7233-1M5R#C2965594Siproin · SOT-23-5	Siproin	SOT-23-5	4,635	₹12.50 · 4,635 in stock	View
LP2992AIM5X-3.3/NOPB#C111076TI · SOT-23-5	TI	SOT-23-5	1,195	₹186.37 · 1,195 in stock	View
LP2992IM5-3.3/NOPB#C129353TI · SOT-23-5	TI	SOT-23-5	34	₹160.57 · 34 in stock	View
LR6232B33M#C559081LRC · SOT-23-5	LRC	SOT-23-5	3,000	₹12.44 · 3,000 in stock	View
UM1540S-33#C7542870Union Semiconductor · SOT23-5	Union Semiconductor	SOT23-5	3,000	₹13.39 · 3,000 in stock	View
